ENGLISH

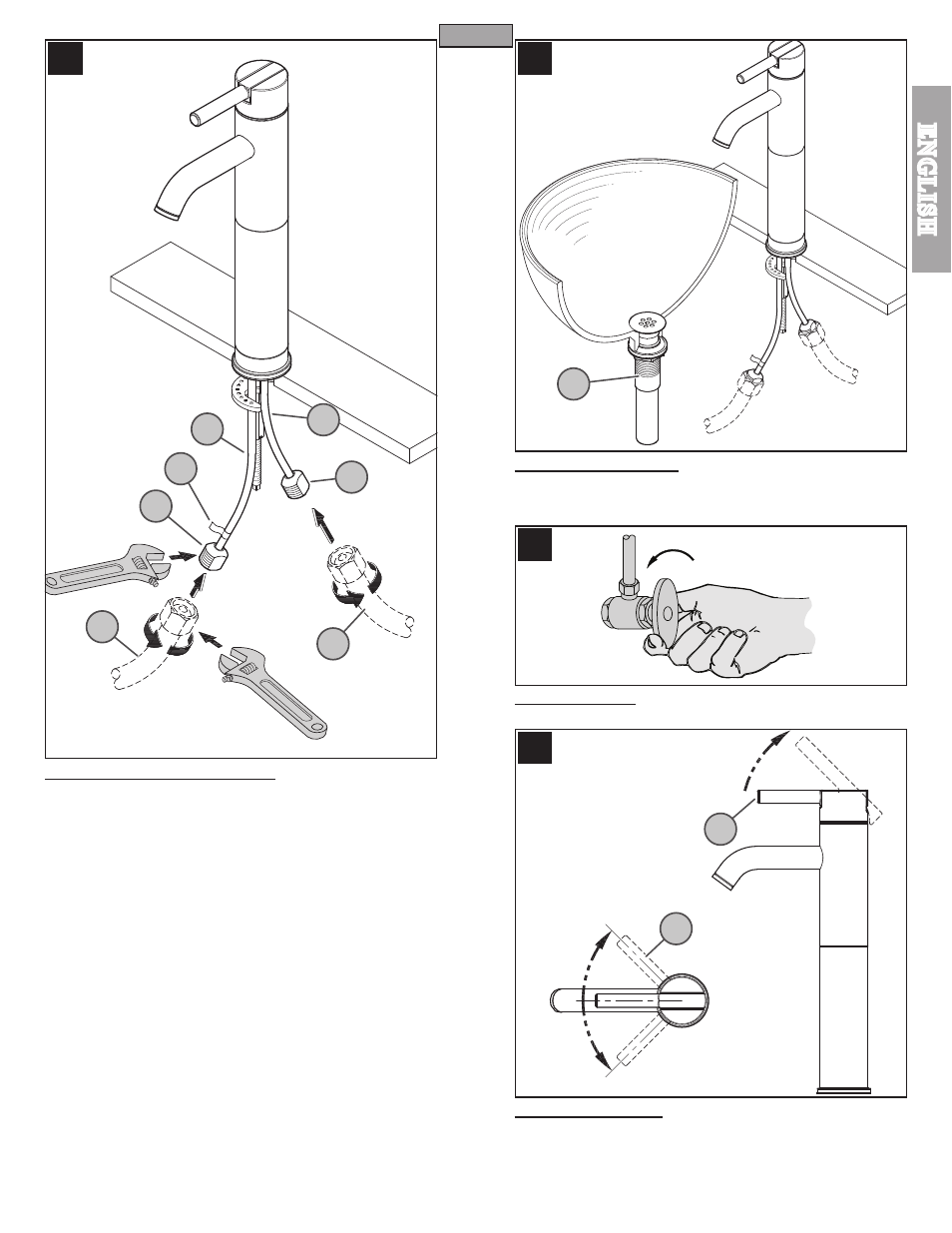

6 WATER SUPPLY CONNECTIONS

Gently separate hot and cold Supply Tubes (6A), approximately three inches apart.

Connect water Supply Lines (6C) to Faucet Inlets (6B). Hot water supply line goes to hot

inlet fitting indicated by red tag (6D). (Supply lines not included). Follow manufacturer’s

instructions when installing supply lines.

Hold the Faucet Inlets (6B) steady using an adjustable wrench while tightening Supply

Lines (6C). Do not twist Supply Tubes (6A)!

7 DRAIN INSTALLATION

Install and adjust Drain (7A) using separate instructions supplied with the Drain assembly.

(Not included, order separately.) For sinks with an overflow, order T47-9GS*. For sinks

without an overflow, order T47-7GL*.

8 UNIT START UP

Turn on hot and cold water supplies, and check for leaks above and below the sink.

9 FAUCET FUNCTION

By lifting the Lever Handle (9A) up, the valve will be activated allowing water to flow.

The water flow will increase by continuing to lift up the Lever Handle (9A). By rotating

the Lever Handle counter-clockwise, the water temperature will decrease to cold flow

only. By rotating the Lever Handle clockwise, the water temperature will increased to

hot flow only.
