Factory Direct Hardware Hansgrohe 10820001 Axor Starck User Manual
Page 4

4

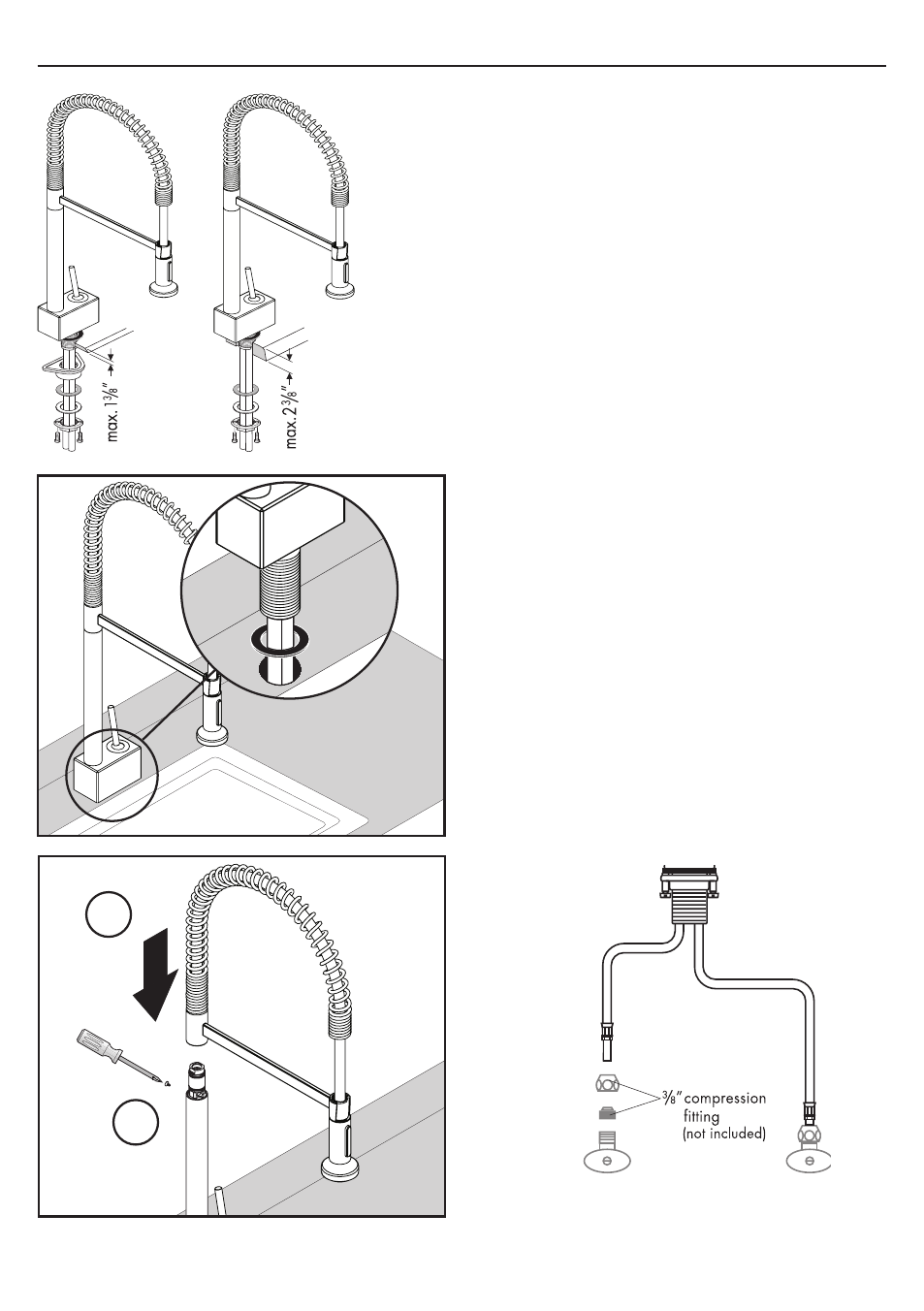

Installation
1.
2.
Know and follow all applicable local plumbing
codes when installing this faucet!
1. Flush the supply lines thoroughly before
installation
2. Place the faucet and the sealing washer in
position on the sink.
. Slip the plastic washer, the slide washer, the
metal washer and mounting collar over the
hoses and threaded base and tighten the
collar nut by hand. If there is not enough
space, omit the plastic washer.
4. Tighten the tensioning screws.
5. Install the handspray assembly and tighten
the set screw.
6. Connect the supply lines to the stops with
/8” compression fittings. Stops and com-
pression fittings are not included with this
faucet.
For best operation of the faucet, the hot and
cold supplies should be of equal pressure.
