9

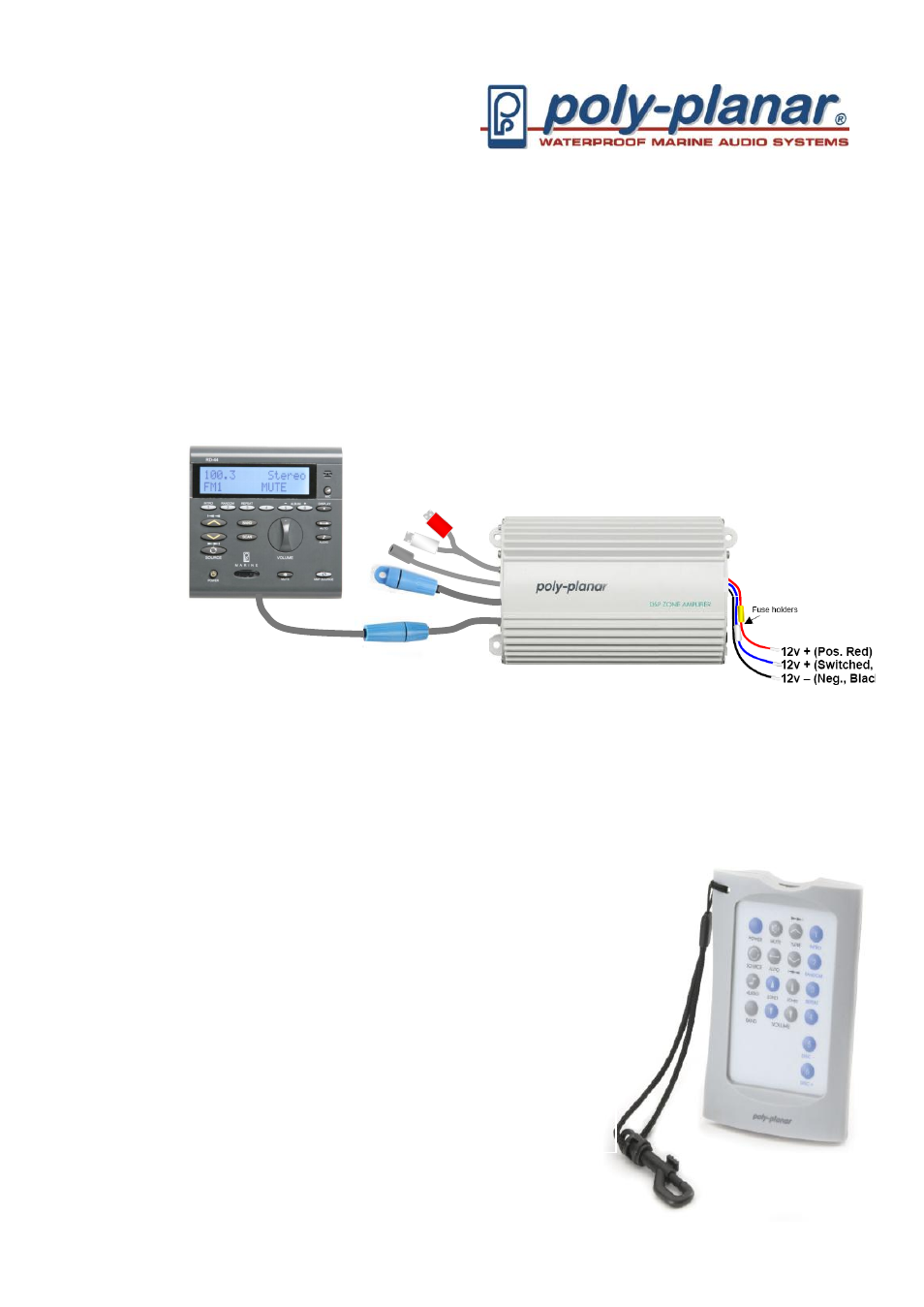

Single Zone with MZ-100 DSP AMP
The MZ-100 can be controlled by the RD-44 control panel. Using an ICC
10, 20 or 60 DIN extension cable (not shown) the panel can be up to 60
feet away from the amplifier. Plug the RD-44 or its extension cable into
the CONTROL PANEL plug on the MZ-100. Be sure to tighten the
waterproof connectors.
System Connections
(continued)
MRR2 Wireless Remote Control
The MZ-100 can support 1 Auxiliary input such as iPOD dock or other
media player.
(See MZ-100 instruction Manual)
The Poly Planar MRR2 Wireless Remote can be
used with the RD44 Display. Simply point the
Remote at the Display and you can activate the
primary functions. The MRR2 requires “Line of
site” to the IR window of the Display and will
operate up to 30 ft away.
