MegaVox Pro Public Address System Owners Manual
For System Setup & Operation Videos Visit Our Website: www.anchoraudio.com
2

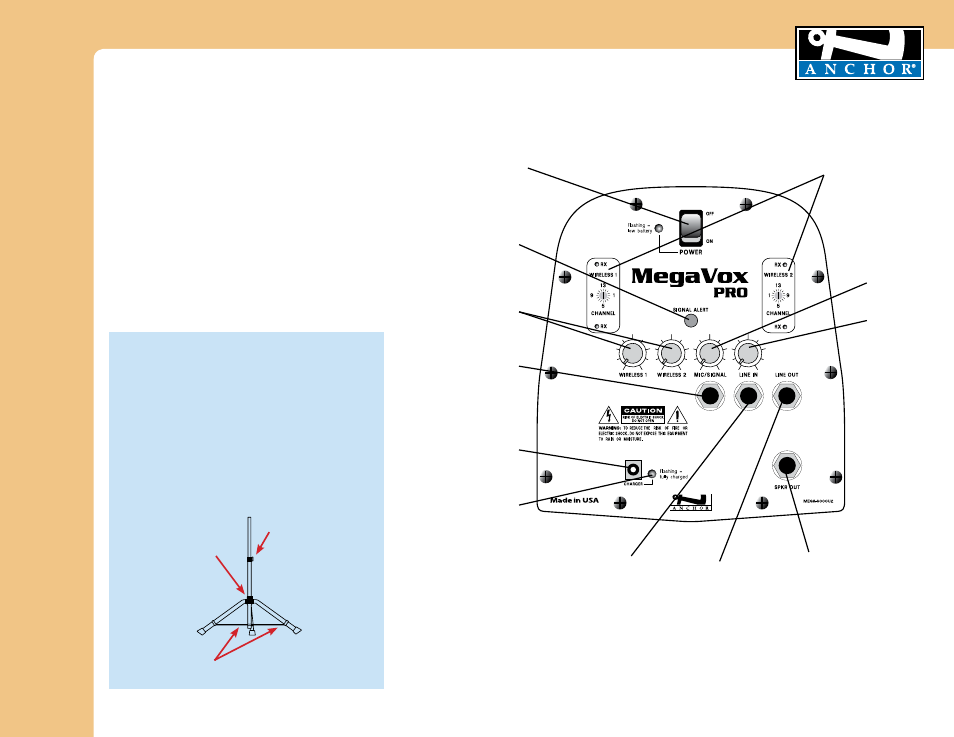

BACK PANEL OF MEGA-6000U2
BASIC SYSTEM OPERATION
NOTE: Fully Charge Batteries Before First Use!
IMPORTANT: Make all connections with shielded cables to avoid
hum, buzzing or interference.
1. Before turning the systems power on: Set all Input
Level Controls
2. Plug a microphone into a MIC jack and/or a line-level
audio source into the LINE IN jack
3. Switch POWER to ON - The red BATTERY LED will turn
on (If the light flashes or stays off charge the battery)
4. Slowly increase the Level Controls for the input jacks
used to desired volume level
WIRELESS RECEIVERS
(see page 4)
WIRELESS LEVEL CONTROLS
MIC - INPUT JACK
1/4” Phone - Unbalanced,
low impedance, no
phantom power
LINE IN - INPUT JACK
1/4” Phone - For any line-level
signal source: tape/VCR/CD/DVD
players, musical instruments, etc.
CHARGER INPUT JACK
SPEAKER OUT -
OUTPUT JACK
1/4” Phone - Drives the MEGA-6001
unpowered companion speaker
Using companion speaker will decrease
battery service time requiring more
frequent charging
MIC/SIGNAL ALERT
LEVEL CONTROL
LINE IN
LEVEL CONTROL
LINE OUT - OUTPUT JACK
1/4” Phone - Unbalanced, combined
output of all active system inputs
(Output is post source level; any volume
fluctuations for a specific input will
affect this output signal level)
BATTERY CHARGE
INDICATOR
POWER SWITCH
SIGNAL ALERT BUTTON
System emits a loud, air-horn type tone
Push & hold button to activate siren
and control volume with MIC/SIGNAL
control
CAUTION: The signal alert sound can produce VERY high or harmful sound pressure levels that can cause hearing damage.
SPEAKER STAND SETUP
1. Loosen the Lower Collar Knob
2. Separate the stand legs until the leg support Cross
Braces are parallel to the floor
3. Tighten the Lower Collar Knob
4. Loosen the Upper Collar Knob and extend the
center pole
5. Adjust height and retighten the Upper Collar Knob
6. Place your Anchor sound system on the stand
LOWER
COLLAR KNOB
UPPER
COLLAR
KNOB
CROSS BRACES
