Explorer PRO Sound System
Portable Sound System Specifi cations
Advancing Technology
The next generation Explorer PRO is perfect for sound projection in indoor or outdoor settings
and playing music during school activities. The unit delivers 110dB of intelligible speech from
one sound system designed for users with no technical knowledge.
Featuring quick setup and easy to use controls, the new Explorer PRO is truly versatile with true
AC/DC operation and improved battery life. The system is ideal for schools, corporate trainers
and places of worship.
Anchor Audio, Inc. 888/444-6077
Portable Sound Systems • Torrance, California www.anchoraudio.com
S-E/0908
EXPLORER PRO FEATURES
6-YEAR WARRANTY!
REACH CROWDS OF 800+
TRUE AC/DC - 110/220V POWER SUPPLY
110 DB OF CLEAR SOUND
SINGLE OR DUAL UHF WIRELESS W/
16 USER SELECTABLE CHANNELS
OPERATES FROM 12V POWER SOURCE
LED DISPLAYS BATTERY LEVEL
& CHARGE STATE
TWO MICROPHONE COMBO INPUT JACKS
RAPID CHARGER CIRCUITY
CHARGES DRAINED BATTERY IN AS
LITTLE AS 60 MINUTES
SHORT CIRCUIT & THERMAL
OVERLOAD PROTECTION
6.5-INCH WOVEN FIBER WOOFER &
HIGH-OUTPUT HORN TWEETER
LIGHTWEIGHT AT JUST 23 POUNDS
IMPROVED “LIMITER” CIRCUITRY REDUCES
DISTORTION & INCREASES INTELLIGIBILITY
SPEECH PROJECTION MODE FOR
CRYSTAL-CLEAR VOICE PROJECTION
“VOICE OVER” MUSIC DUCKING FEATURE
DURABLE INJECTION-MOLDED
POLYPROPYLENE CASE
EXTERNAL SPEAKER OUTPUT POWERS
OPTIONAL COMPANION SPEAKER
MADE IN THE USA!
(FEATURES & SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
UHF WIRELESS
WH-6000 Wireless Handheld mic/transmitter
WB-6000 Wireless body-pack transmitter
w/ handsfree microphone. Mic options include:
Over-the-Ear/EM-60T, Lapel/LM-60,
Collar/CM-60, Headband/HBM-TA4F
EXPLORER PRO MODELS
EXP-7500 AC/DC powered sound system
EXP-7500U1 1 built-in wireless receiver
EXP-7500U2 2 built-in wireless receivers
EXPLORER PRO TECHNICAL SPECIFICATIONS
Rated Power Output 75 watts AC/DC mode
Max SPL @ Rated Power 110 dB @ 1 meter
Frequency Response
80 Hz – 16 kHz
AC Power Reqs. 90 – 264 VAC, 50/60 Hz
Dimensions (HWD) 16.5 x 10.5 x 10” / 42 x 27 x 25 cm
Weight 23 pounds / 10.4 Kg
Inputs
Microphone (2 combo)
Lo-Z (1 k ohm), balanced, XLR
12 VDC condenser mic phantom power
Hi-Z (10 k ohm), unbal, 1/4” phone
Auxiliary (line) Hi-Z (10 k ohm), unbal, 1/8” & 1/4”
Sensitivity For Rated Output
Line
-8.4 dBV (380 mVrms)
Mic (unbal & bal) -49 dBV (3.63 mVrms)
Outputs
Line (post fader)
Lo-Z, buffered, 1/4”unbal/bal
Speaker 4-pole Neutrik Speakon®
EXP-7501 Unpowered companion speaker
MIC-90 Professional dynamic, cardioid pattern
handheld microphone
SS-550 Heavy-duty speaker stand
NL-EXP Nylon storage cover
HC-1620 Custom traveling hard case
EXP-SOFT-TOTE Nylon case w/ rollers & handle
for speaker, stand & accessories
EXP-MIC-TOTE Nylon mic/accessory bag w/
mounting strap
EXPLORER PRO ACCESSORIES

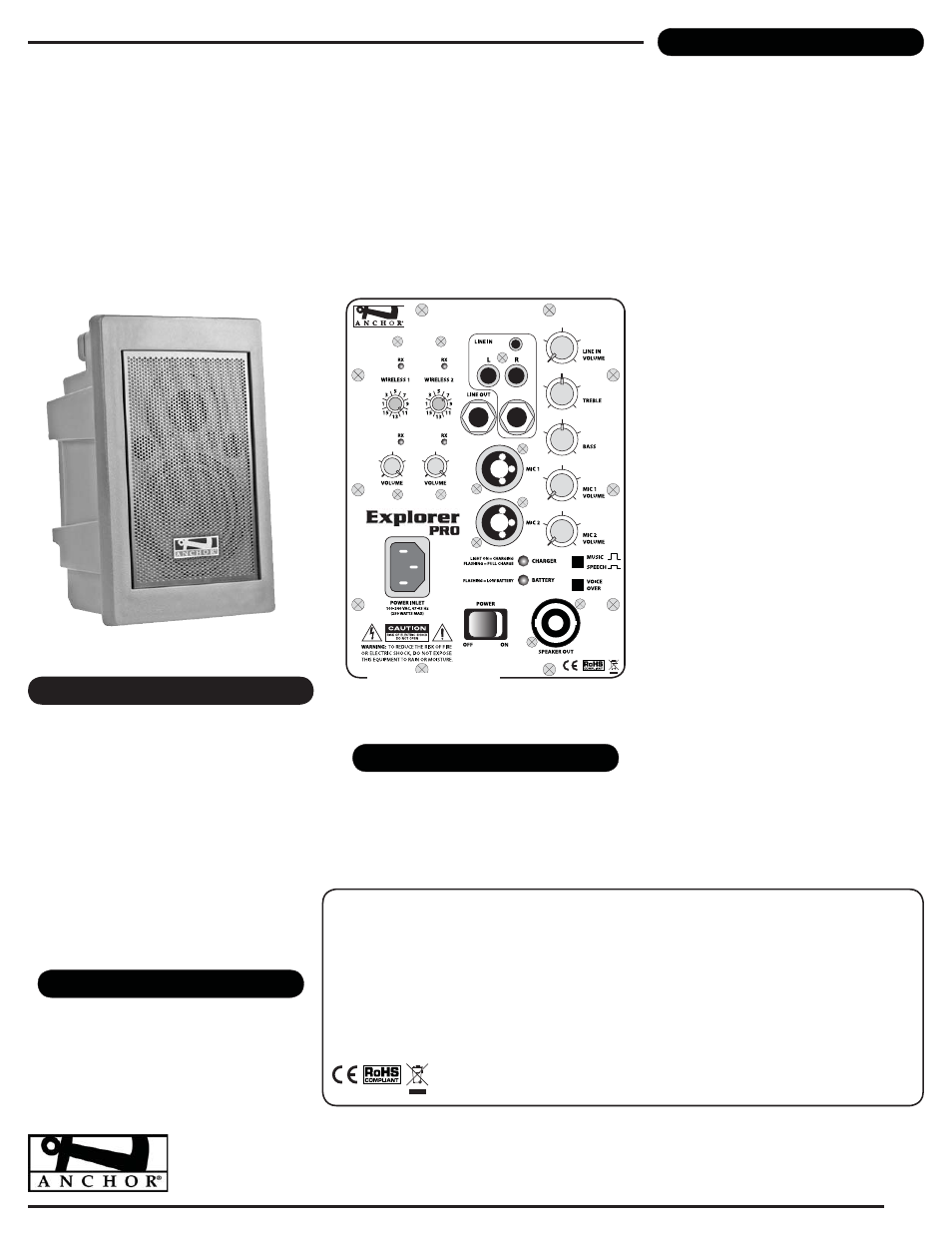

(EXP-7500U2 Back Panel Shown)
