AN-30 Speaker Monitor Owners Manual
2
ARChITECTS’ SPECIFICATION
The speaker monitor shall be an Anchor AN-30 or
equivalent. The general construction shall include an
injection-molded case, one 4.5” Neodymium woofer
and input terminations consisting of both 3.5 mm and
1/4” phone.
The maximum speaker dimensions shall not exceed
5.5” high, 5.5” wide and 6.5” deep. The maximum
weight shall be 1.5 pounds.
The case shall be formed by injection-molded high-
impact polycarbonate, and shall have a smooth finish
of black.
The woofer shall be magnetically shielded so as not to
cause video interference, and shall be protected by a
polycarbonate grill molded into the case.
The speaker monitor has the ability to be mounted on
walls, ceilings, equipment racks and speaker stands
with appropriate hardware and accessories.
Waste electrical and electronic products must not be disposed of with
household waste. Please recycle where facilities exist. Check with
your Local Authority or Retailer for recycling advice.

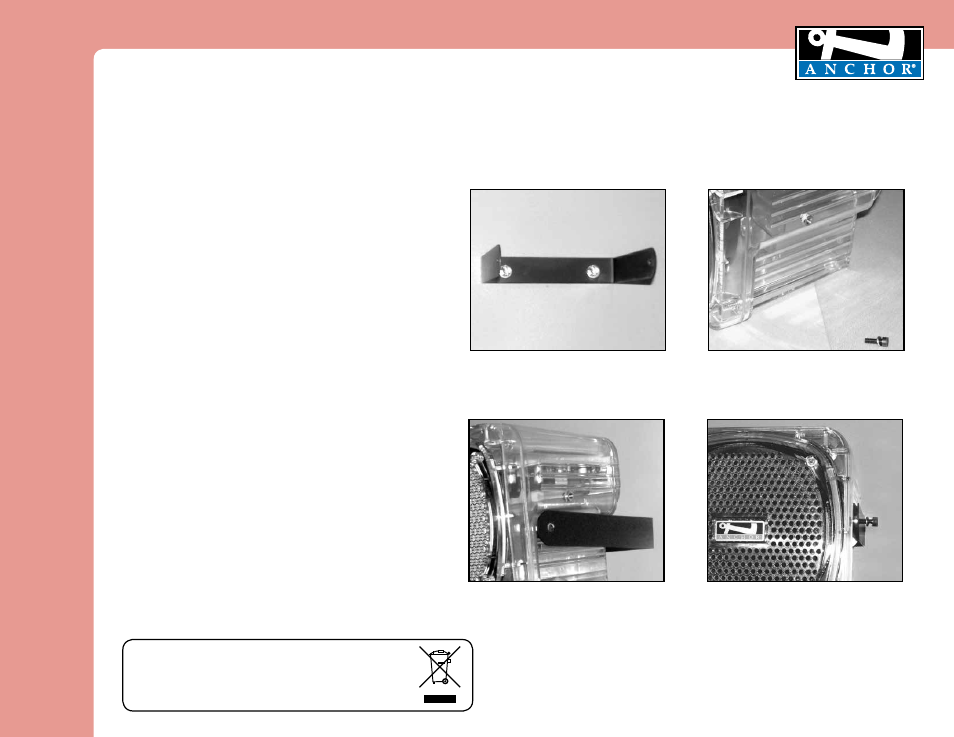

1. Attach mounting bracket securely to wall/
ceiling with pre-drilled holes.
2. Remove allen head cap screws from
bracket mounts on AN-30.
3. Align bracket arm hole with mount-
ing hole on AN-30 case.
4. Attach both sides of speaker
securely to mounting bracket.
Sb-30 SPEAkER bRACkET
Mounting the AN-30 speaker (included hardware: allen wrench & two allen head cap screws with
lock washers) to a wall, ceiling or other flat surface using the SB-30 speaker bracket.
Attention: The AN-30 only comes in Black. Picture is for illustration purposes only.
NOTE: When connecting multiple AN-30 units (daisy
chaining) stereo cable MUST be used to avoid interference.
