Commercial Audio Series Amplifiers
page 8 Operation Manual
A B C D
F E
D. Amp Input Connector
3-pin Phoenix-type, high-impedance balanced, one per
amplifier channel.
E. AC Power Inlet
Detachable IEC.
F. Output VCA Connector
One for every two channels, 4-pin Phoenix-type connector
for two VCA control lines of +10 VDC and ground. Compati-
ble with Crown 1-VCAP and 4-VCAP modules.

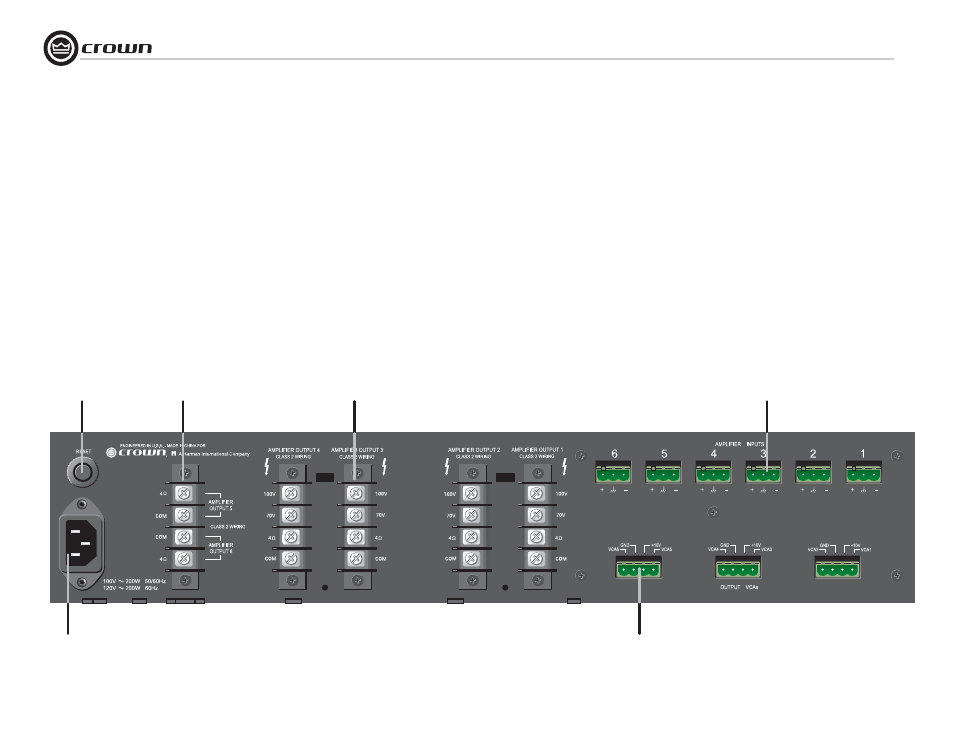

1.4 660A Back Panel Controls and Connec-
tors
A. Reset Switch
Resets the circuit breaker that protects the power supply. 220/
230/240V units have a fuse instead.
B. Amplifier Outputs Connector
One 4-position terminal strip for channels 5 and 6 including
COM and 4-ohms terminals for each channel. Accepts up to
10 AWG terminal forks.
C. Amplifier Outputs Connectors
One connector per channel for channels 1-4 including COM,
4-ohms, 70V and 100V terminals. Accepts up to 10 AWG ter-
minal forks.Non-touch cover included.
