Applications: Auxiliary and primary locking for commercial and
residential buildings. B500 Series locks are designed to meet
various security door preparations and functional requirements
determined by local codes and life safety regulations.
Certifications: ANSI A156.5, 2001, Grade 2. Available UL
Listed for three-hour fire door.
Exposed Trim: Wrought brass or bronze, reinforced with steel
security insert.
Keying: 6-pin tumbler standard with two keys per lock. Stock
locks are keyed 5- or 6-pin. Other keying options for B500 Series
available from the factory include master keying, grand master
keying and construction keying.
Door range: 1-3/8” to 1-3/4” thick (35 mm to 44 mm)
standard. Available for over 1-3/4” to 2-1/4” and over 2-1/4’
to 4” assembled to order.
Backset: 2-3/8” (60 mm) or 2-3/4” (70 mm) adjustable
backset standard. 5” fixed set also available.
Deadbolts and Strikes: B500 Series deadbolts and strikes
have brass bronze or steel faceplates, furnished in compatible
lock trim finishes.
Deadbolts: 1” x 2-1/4” (25 mm x 57 mm) square corner. 1”
(25 mm) throw standard. Circular drive-in, round corner, 1-1/8”
square corner, and Triple Option deadbolts also available.
Strikes: Square corner 1-1/8” x 2-3/4” (29 mm x 70 mm)
strike, no lip, furnished with metal dust box standard. ANSI
1-1/4” x 4-7/8” with 1-3/16” (30 mm) lip, drive-in and
full lip strikes also available.
Adapter Rings: Trim ring with anti-pry shield standard,
2-1/2” (63 mm) outer diameter. Removable to fit 1-1/2”
crossbore door preps.
Finishes:
Door Frame Reinforcer

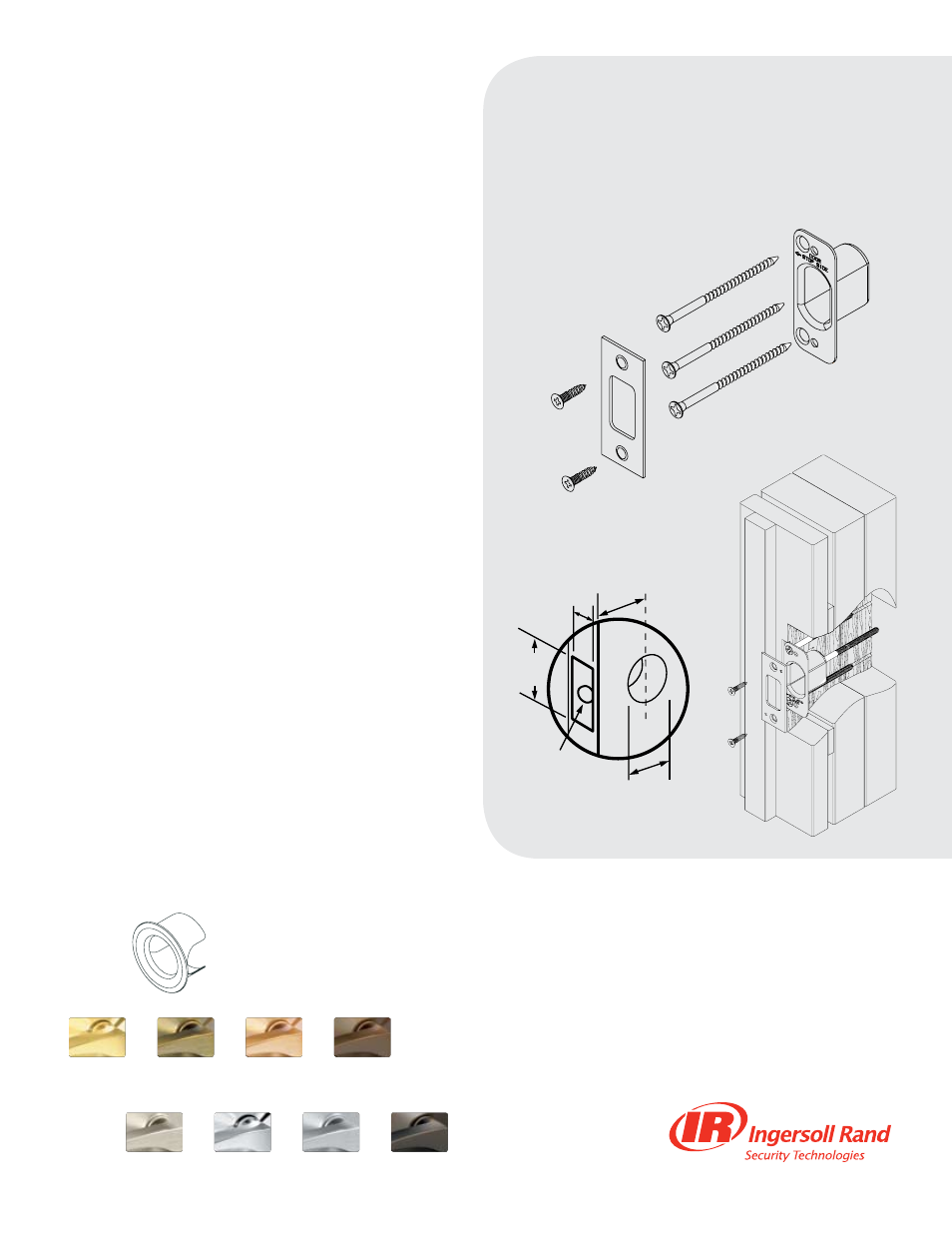

All B500 Series deadbolt locks are furnished standard with the
metal dust box reinforcer. This unit significantly strengthens a
wood jamb against “kick-in” attack and greatly increases the
security effectiveness of the lock. The reinforcer is concealed
under the strike and is deeply anchored to the jamb with
three 3” (76 mm) long screws.
Door Preparation
1-1/2˝ or 2-1/8˝
38 mm or 54 mm
2-3/8˝ or 2-3/4˝
60 mm or 70 mm 1˝
25 mm
1˝ dia.
25 mm
2-1/4˝
57 mm
se requiere para
2 ³ ⁄₄
Wood Door
Puerta de madera
Porte en bois Metal Door
Puerta de metal
Porte en métal
B520-649 (for B560 and B562)
B520-650 (for interchangeable cores)
Frame Preparation
B-500 Series Functions:
• B560 - Single Cylinder Deadbolt Lock
• B561 - One-Way Deadbolt Lock
• B562 - Double Cylinder Deadbolt Lock
• B563 - Classroom Deadbolt Lock
• B571 - Door Bolt Occupancy Indicator
• B580 - Door Bolt (no outside trim)
• B581 - Door Bolt (with outside blank plate)
605
Bright Brass
609
Antique Brass
612
Satin Bronze
613
Oil Rubbed
Bronze
619
Satin Nickel
625
Bright Chrome
626
Satin Chrome
716
Aged Bronze
