B500 Series Deadbolt
The B500 Series deadbolt from Schlage is the toughest, most
versatile deadbolt in the business. Designed by locksmiths for
locksmiths, the B500 Series deadbolt accepts every Schlage
cylinder on the market, fits virtually every door you service,
enhances lock strength on the jamb side of the door, and will
change forever the way you look at deadbolts.
B500 Specifications
2 ³ ⁄₄
Rose and thumbturn mounting screws
Rose and ADA compliant thumbturn
Mounting screws
Steel mounting plate
Adjustable backset deadbolt - 2 3/8˝ or 2 3/4˝
1˝ Throw, with concealed hardened steel roller
UL Listed fire cup
(for fire rated locks)
Metal dust box reinforcer
and #12 x 3˝ wood screws
Strike
Strike screws
Faceplate screws
Removable anti-pry shield and trim ring
1˝ trim ring
6-pin cylinder

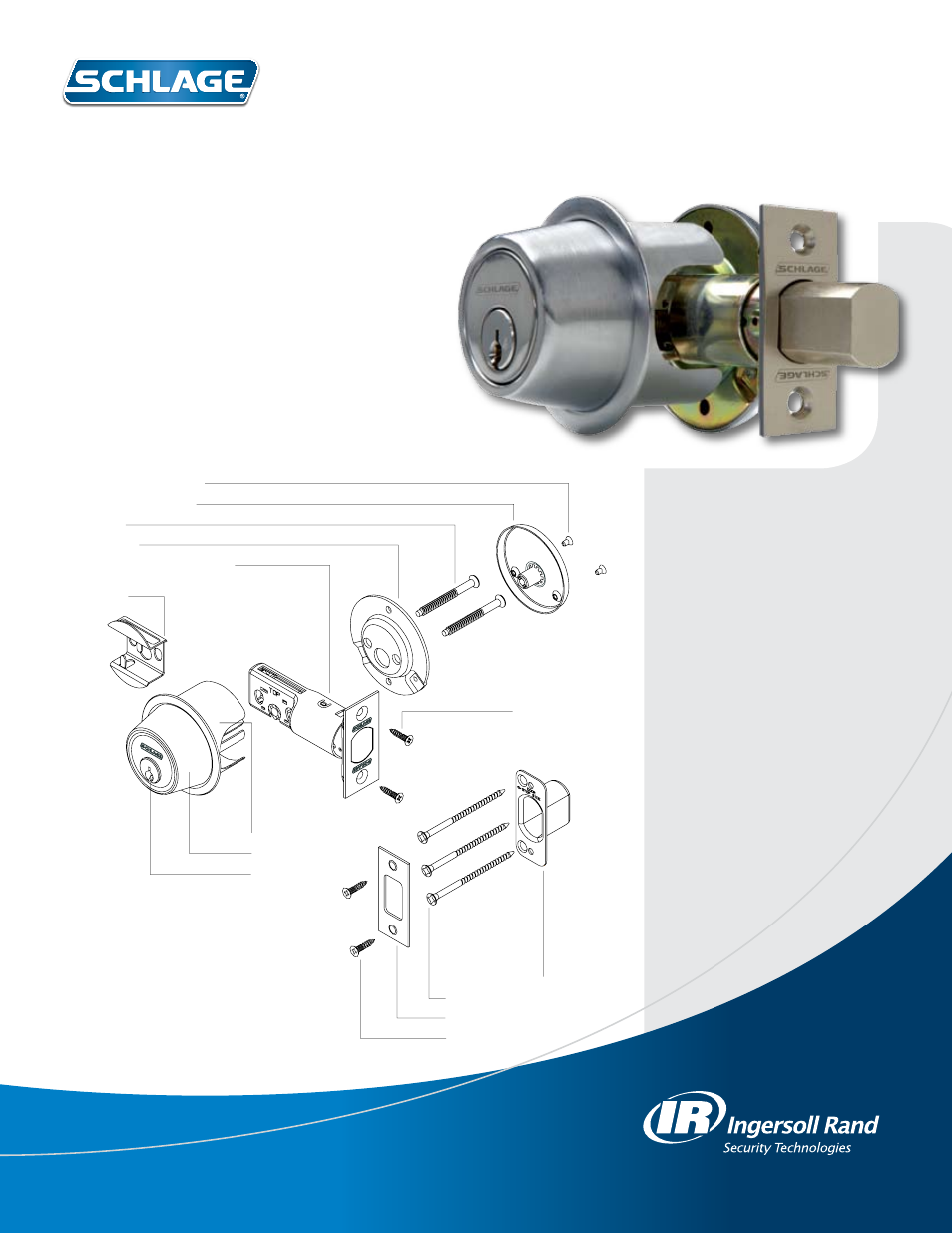

Exploded View - B560P
B500-Series
Benefits
• Quick, easy installation
• Adjustable backset locks into place
• Anti-pry shield protects latch
from attacks
• Metal dust box provides deep
anchoring and added strength
Applications
• Primary or auxiliary locking for
commercial buildings
• High security locking for
residential buildings
• Can be suited with virtually all
Schlage levers and knobs
