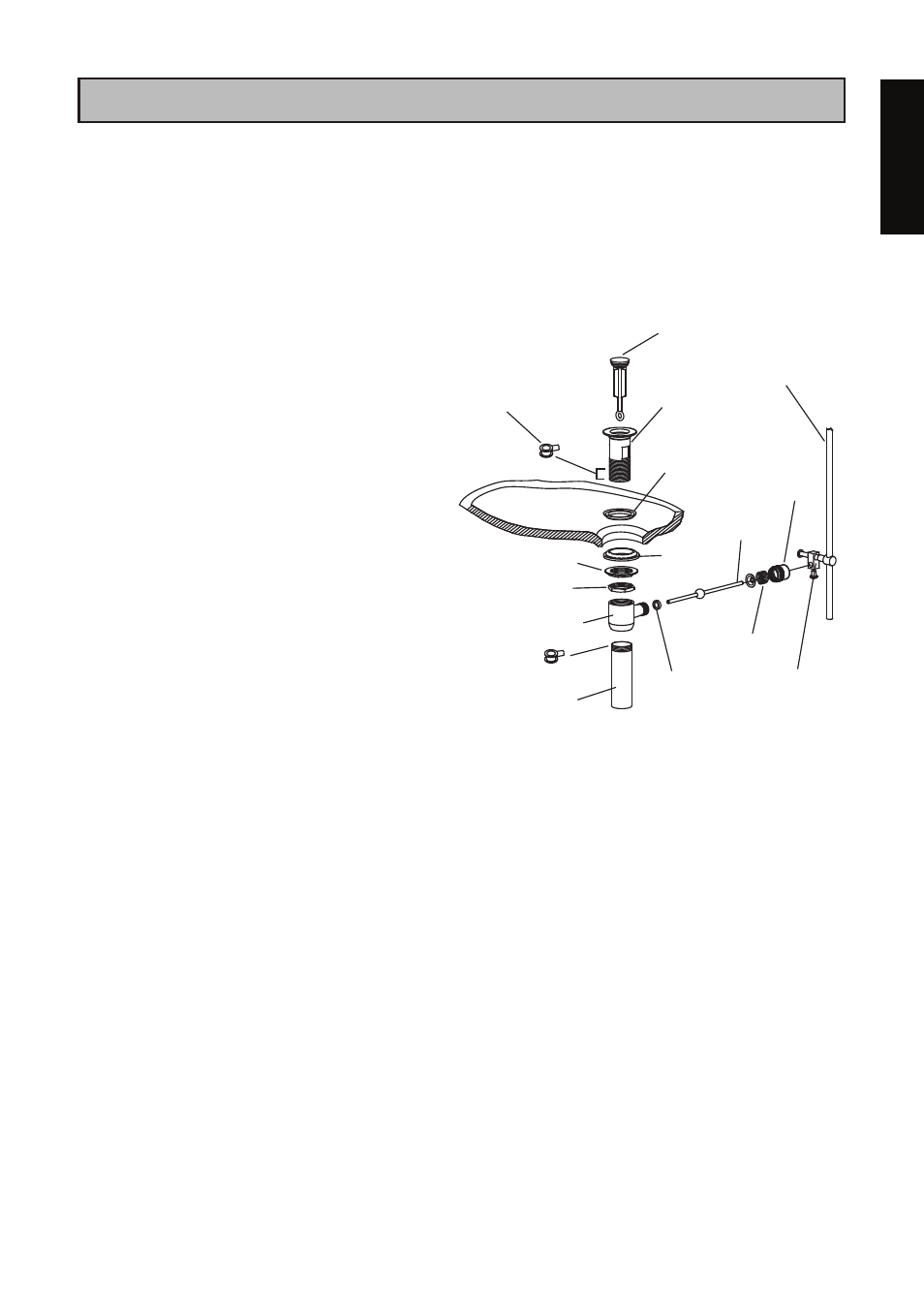

pipe Tape
drain stopper
Flange
lift rod
gasket
nut
pivot rod
gasket
Flange nut
locknut
drain Body
Tail piece
seal
spring
Connecting
Block
InSTaLLaTIOn PROCEDuRE
2. d
rain
i
nStallation
 apply pipe tape to the
flange threads
 Insert flange into the
drain hole
 assemble the gasket,
flange nut, and lock
nut
 install the drain body
onto the flange
 secure the drain
assembly by tightening
the flange nut and
locknut
 apply pipe tape to
the threads of the tail
piece and install the
tail piece to the drain
body
 insert the drain stopper
into the flange
 assemble the pivot
rod as shown in the
diagram
 insert the pivot rod
into the drain stopper
hole� Tighten the lock
nut
 insert the lift rod and
pivot rod into the
connecting block�
Tighten both rods with
screwdriver
5
