14 MAINTENANCE & CARE

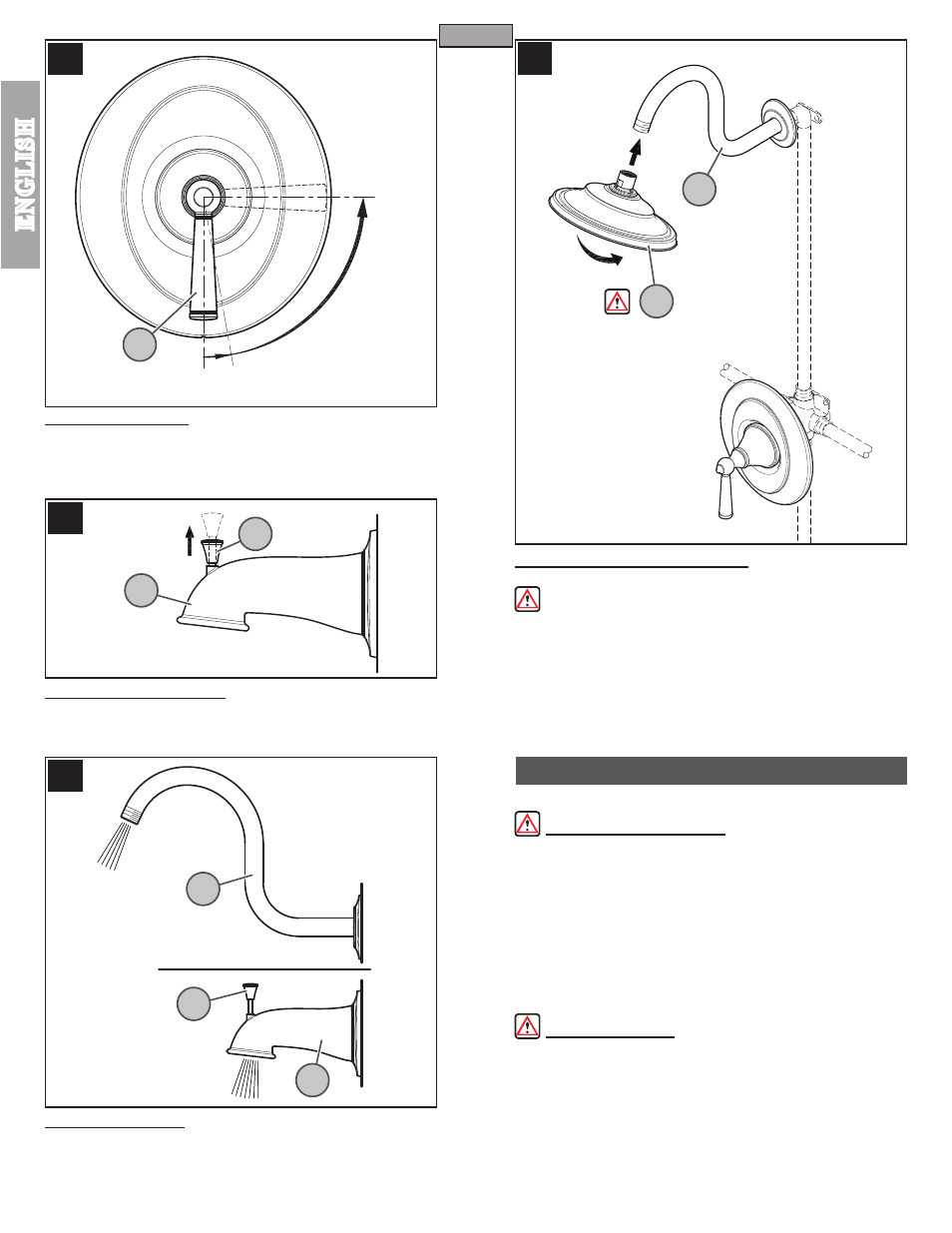

13 TUB SPOUT FUNCTION
When the valve is turned on, water normally flows through the Tub Spout (13A).
To activate the shower, turn valve on and pull the Knob (13B) up. Hold on until
water flows continuously from the shower arm.
15 SHOWER HEAD INSTALLATION
Thread Shower Head (15A) onto Shower Arm (15B).
Make sure Shower Head (15A) is securely tightened to Shower Arm
(15B).
CAUTION: Maintenance
DISASSEMBLY
1. Replacement parts may be available at the store where you purchased
your faucet.
2. When replacement parts are not available, please write or call Price
Pfister Consumer Service.
3. Always turn off water and relieve pressure before working on your
faucet.
NOTE: Trim Care
Cleaning Instructions:
For all Handles and decorative finishes, use only a soft damp
cloth to clean and shine. Use of polish, detergents, abrasive
cleaners, organic solvents or acid may cause damage. Use of
other than a soft damp cloth will nullify our warranty!
Special Trim:
Trim products which contain Porcelain or other similar
substance are not acceptable for public areas or Commercial
use. Installation of Said Trim is at Users Risk!
12 VALVE FUNCTION
By rotating the Lever Handle (12A) slightly counterclockwise, the valve will
be fully activated to the “COLD” position. The water temperature can be
increased by continuing to rotate the Lever Handle (12A) in a counterclockwise
direction.
14 FINAL FLUSHING
For final flushing, turn valve on and allow water to run through the Tub Spout
(14A) for several minutes. Pull Spout Knob (14B) up to allow water to run through
Shower Arm (14C). Allow water to run for several minutes untill all foreign mater
clears the line.
