ENGLISH

ENGLISH

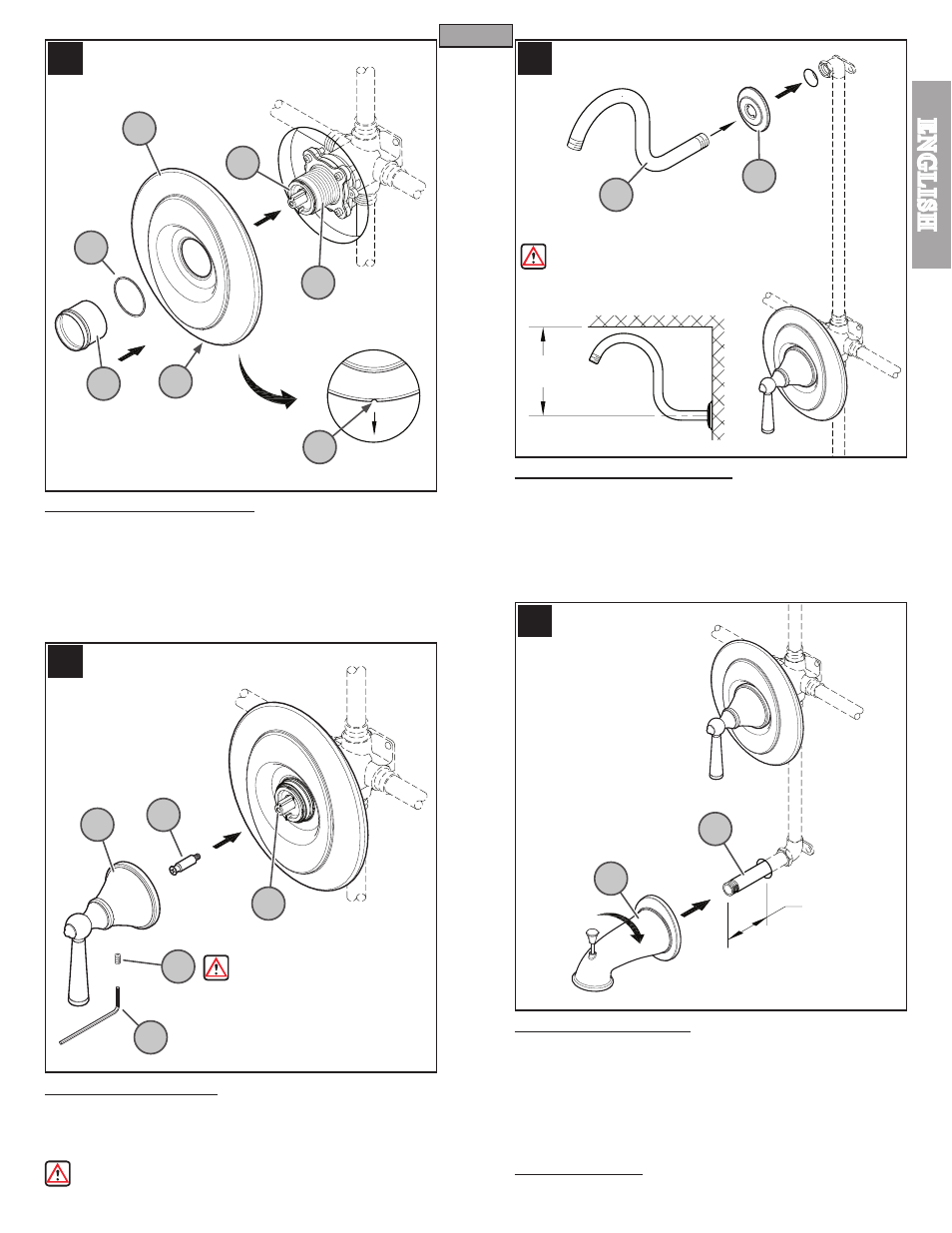

7 TRIM FLANGE ATTACHMENT

Position Flange (7A) on Valve (7B) with Drain Hole (7C) at the bottom. Place

Protective Washer (7D) on the short end of the reversible Retainer Sleeve

(7E). Screw Retainer Sleeve (7E) onto threaded section of the Stem and

Bonnet (7G). Tighten Retainer Sleeve (7E) by hand until Flange (7A) is snug

to finished wall surface. If the short end of the Retainer Sleeve (7E) is too

short, reverse it to use the longer end.

8 HANDLE ATTACHMENT

Screw Stem Extender (8A) onto the Valve Stem (8B). Thread the Set Screw

(8C) into the Handle (8D) and thread it in only three to four turns. With valve

in “CLOSED” position, place Handle (8D) onto the Stem Extender (8A) and

tighten the Set Screw (8C) by using the Hex Wrench (8E) that is provided.

Make sure Set Screw (8C) is securely tightened to Handle (8D).

10 SPOUT INSTALLATION

Apply PTFE plumbers tape on both ends of Pipe Nipple (10A) (not included).

Screw Pipe Nipple (10A) into the elbow inside the wall and tighten with pipe

wrench. The Pipe Nipple (10A) is to project 3

⅞

" to 4" from the finished wall.

Screw Tub Spout (10B) onto Pipe Nipple (10A) and tighten until Spout is properly

positioned and flush to the finished wall.

9 SHOWER ARM INSTALLATION

Insert the end of Shower Arm (9A) through the Shower Flange (9B). Apply

PTFE plumber's tape to both ends of Shower Arm (9A) according to

manufacturer's instructions. Screw the end of Shower Arm (9A) into pipe elbow

inside the wall. Slide Shower Flange (9B) tight to the wall.

11 UNIT START UP

Turn on hot and cold water supplies, and check all connections for leaks.

Allow a minimum of 8.0”

clearance between the

center of shower hole and

ceiling.

” to 4”

10A

10B

8.0” Min
