■ DESIGN
Designed to coordinate with TOTO’s Lloyd™ Design
Suite. Durable vitreous china offers years of quality use.
■ SPECIFICATIONS
Water Use: 0.5-1.0 Gpf
Flush System: Spreader Nozzle
Warranty (China): Five Year Limited Warranty
Warranty (EFV): Three Year Limited Warranty
Material: Vitreous china
Height (Urinal Only): 29-1/4"
Width:
16-1/2"
Rim: 14"
Shipping Weight: UE930
57.3 lbs.
Shipping Dimensions: UE930
30-5/16"L x 15-1/8"W
x 17-3/4"H
Cubes: 4.7 ft 3
Fixture dimensions and hydraulic performance
meet or exceed ANSI/ASME standard A112.19.2 and
CAN/CSA B 45 requirements.
Listing and approval: C-UPC, ASSE,
City of Los Angeles, State of MA, and others
Meets the American Disabilities Act Guidelines and ANSI
A117.1 requirements where installed so top of rim is no higher
than 17” from the finished floor.
Recommended Carrier:
Jay R. Smith 0636 (Wall Hanger)
0637 (Wall Hanger with bottom)
These dimensions and specifications are subject to change
without notice.

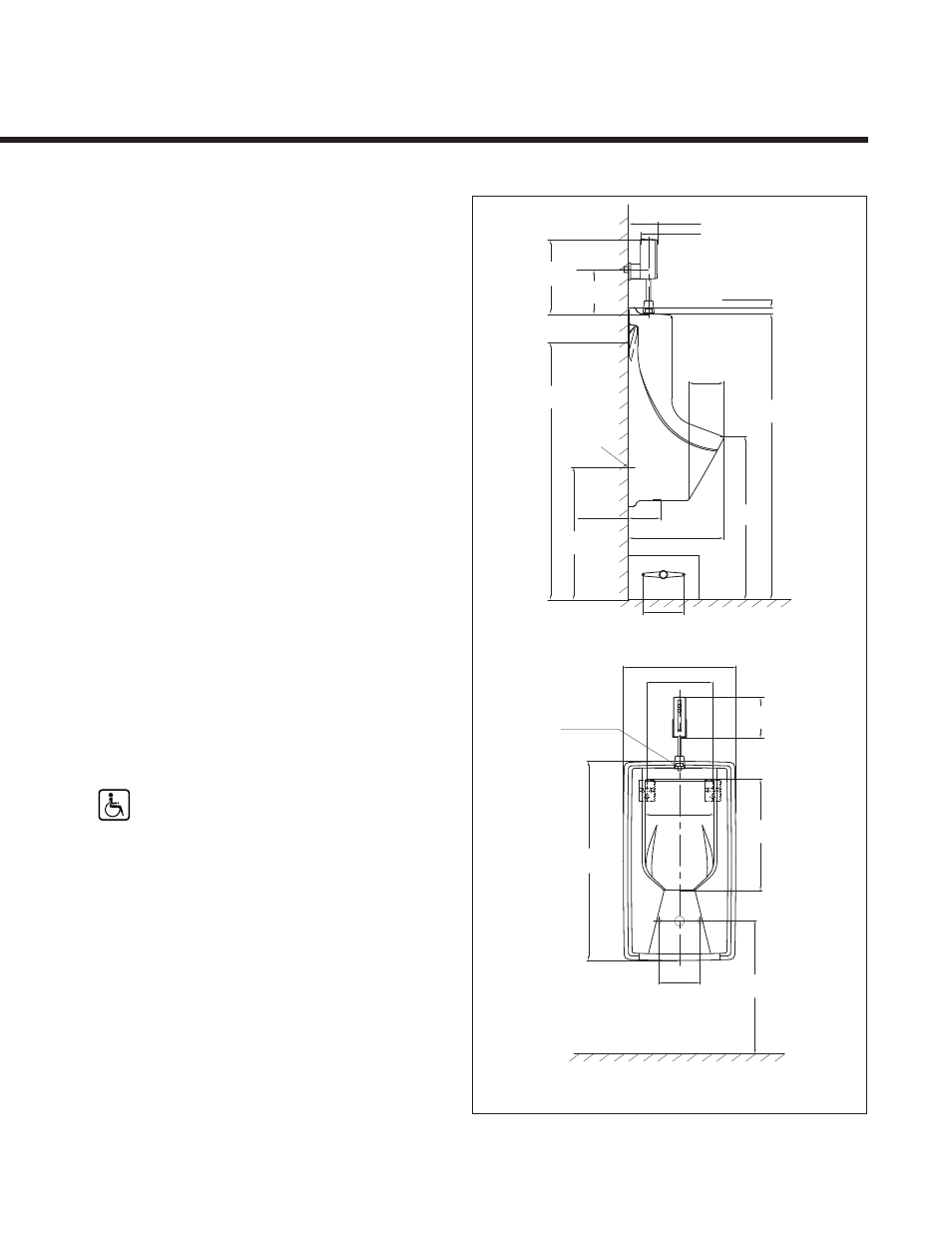

UE930
Lloyd™ Urinal and Electronic Flush Valve
*For handicapped installation refer to codes
5-1/8"
(131mm)
42"
(1068mm)
14" (356mm)
6" (152mm )
Outlet Detail
19-1/2"
(495mm)
Outlet 2"
(51mm)
I.P.S
4-3/4"
(120mm)
24"
(610mm)
1" (24mm)
4-1/4" (108mm)
2-1/2" (63mm)
37-3/4"
(960mm)
11"
(280mm)
6-1/2"
(165mm)
29-1/4"
(744mm)
16-3/8"
(415mm)
6"
(150mm)
19-1/2"
(495mm) 6" (152mm)
16-1/2" (420mm)
10-1/8" (258mm)
9-1/2" (246mm)
5/8"
(16mm) Spud
UT930 - Lloyd™ Urinal
*Suggested Dimension
