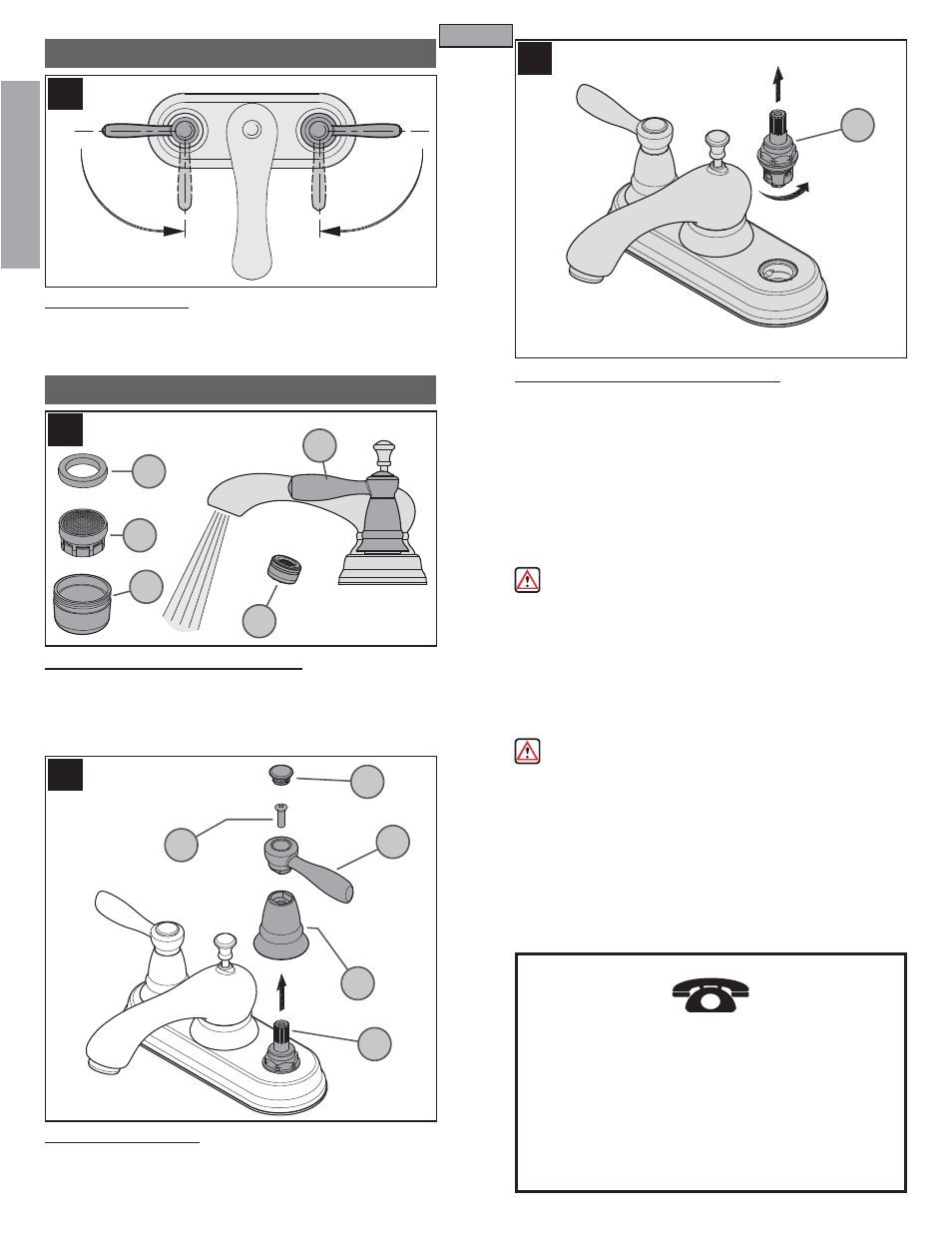

14 HANDLE REMOVAL
Turn off water before proceeding! With valves in closed position, detach
Decorative Button (14A), unscrew Fastener (14B), and remove Lever (14D)
and Handle Hub (14C) from Valve Stem (14E).
15 VALVE CARTRIDGE REPLACEMENT
Turn off water supplies and relieve pressure before working on your
faucet. Remove handles (See Step 14), unscrew Cartridge Assembly (15A)
and inspect. Replace parts as necessary. Reassemble parts by reversing
steps.
1–800–PFAUCET (1–800–732–8238)
For Toll-Free Pfaucet information call
1–800–PFAUCET (1–800–732–8238)
or visit www.pricepfi ster.com
• Installation Support
• Care and Warranty Information
CAUTION: Maintenance
DISASSEMBLY
1. Replacement parts may be available at the store where you purchased
your faucet.
2. When replacement parts are not available, please write or call Price
Pfi ster Consumer Service.
3. Always turn off water and relieve pressure before working on your
faucet.
NOTE: Trim Care
Cleaning Instructions:
For all Handles and decorative fi nishes, use only a soft damp cloth to clean
and shine. Use of polish, detergents, abrasive cleaners, organic solvents or
acid may cause damage. Use of other than a soft damp cloth will nullify
our warranty!
Special Trim:
Trim products which contain Porcelain or other similar substance are not
acceptable for public areas or Commercial use. Installation of Said Trim is
at Users Risk!
13 FLUSHING & AERATOR CLEANING
After installation is complete, remove Aerator Housing (13A). Turn Valves (13B)
on and allow both hot and cold water to run for at least one minute each. While
water is running, check for leaks. To clean the aerator, disassemble Aerator
Housing (13A) by separating the Aerator Shell (13C), Basket (13D), and Washer
(13E). Once parts have been cleaned, reassemble by reversing steps.
MAINTENANCE & CARE
12 VALVE FUNCTION
COLD valve: close-counterclockwise, open-clockwise; HOT valve: close-
clockwise, open-counterclockwise.
Note: Flush faucet before turning on valve (see step 13).
FAUCET FUNCTION
4
14A
14E
14B
14C
15A
14D
13E
13D
13C
13A
13B
OPEN
HOT COLD
OPEN
