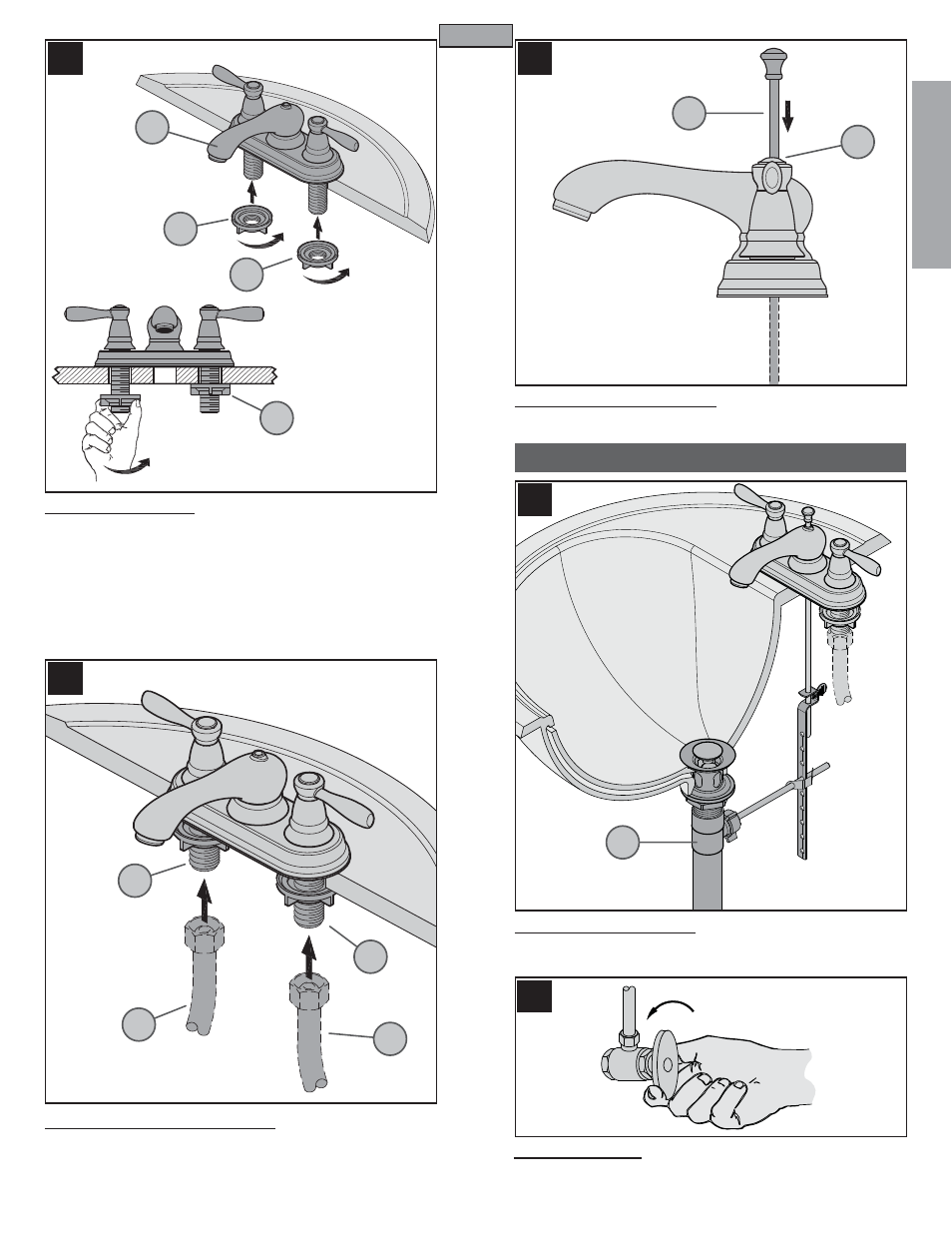

DRAIN BODY INSTALLATION
7 SECURING FAUCET
Align Faucet (7A) to sink surface. From underneath sink, secure Faucet using
Wingnuts (7B). Hand tighten.
8 WATER SUPPLY CONNECTIONS
Connect water Supply Lines (8A) to Faucet Inlets (8B). Hot water supply
lines go into left inlet. Cold water supply lines go into right inlet. (Supply lines
are not included). Please follow manufacturer’s instructions when installing
suppy lines.
9 POP-UP ROD CONNECTION
Insert Lift Rod (9A) into hole at the top of Spout (9B).
10 POP-UP INSTALLATION
Install and adjust Pop-Up (10A) using separate instructions supplied with the
Pop-Up assembly.
11 UNIT START UP
Turn on hot and cold water supplies, and check for leaks above and below
the sink.
3
7A
7B
7B
9A
8B
8A
9B
HOT
COLD
7B
8B
8A
