TOTO’S ECOPOWER ® FLUSH VALVES ™
Sensor High Efficiency Urinal (HEU) Flush Valve, Exposed - 0.5 GPF
SPECIFICATIONS
Product
TEU1LN#CP– Valve Only, Left and Right Rough, Chrome Plated Finish
TEU1LN12#CP- Complete Set (3/4" V.B.), Left and Right Rough, Chrome Plated Finish
TEU1LN22#CP- Complete Set (1-1/4" V.B.), Left and Right Rough, Chrome Plated Finish
Power supply Hydro-Power Charge, 10 years based on 2,000 cycles per month
(Backup battery: 4 years at 4,000 cycles per month without recharging)
Supply water pressure 15 psi - 125 psi*
Water supply pipe
3/4" NPT
Discharge quantity Factory setting at 0.5 GPF/2.4 LPF
Ambient temperature 32°-104°F (0°-40°C)
Trap seal protection Automatic flushes once after twelve (12) hours of non use
Detection time Factory setting at six (6) seconds minimum
Detection range Self-adjusting to environment
Warranty Limited three (3) year warranty on all component parts. Details available upon request.
Listings A.S.S.E. 1037
TOTO Model No. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Automatic infrared sensor activated, piston urinal flush valve.
Heavy-duty zinc die cast cover with nickel chrome finish.
Vandal resistant hex head screws. Automatic sensor adjustment
on installation. Manual override button. Piston valve and
solenoid with self-cleaning mechanism. Automatic flush every
twelve hours if not used. Angle stop and vacuum breaker
included with accessories. Through the use of TOTO’s
EcoPower
® Flush Valves, using the valve 2000 times a month
will fully recharge the valve for up to 10 years.
SUGGESTED ENGINEERING SPECIFICATION:

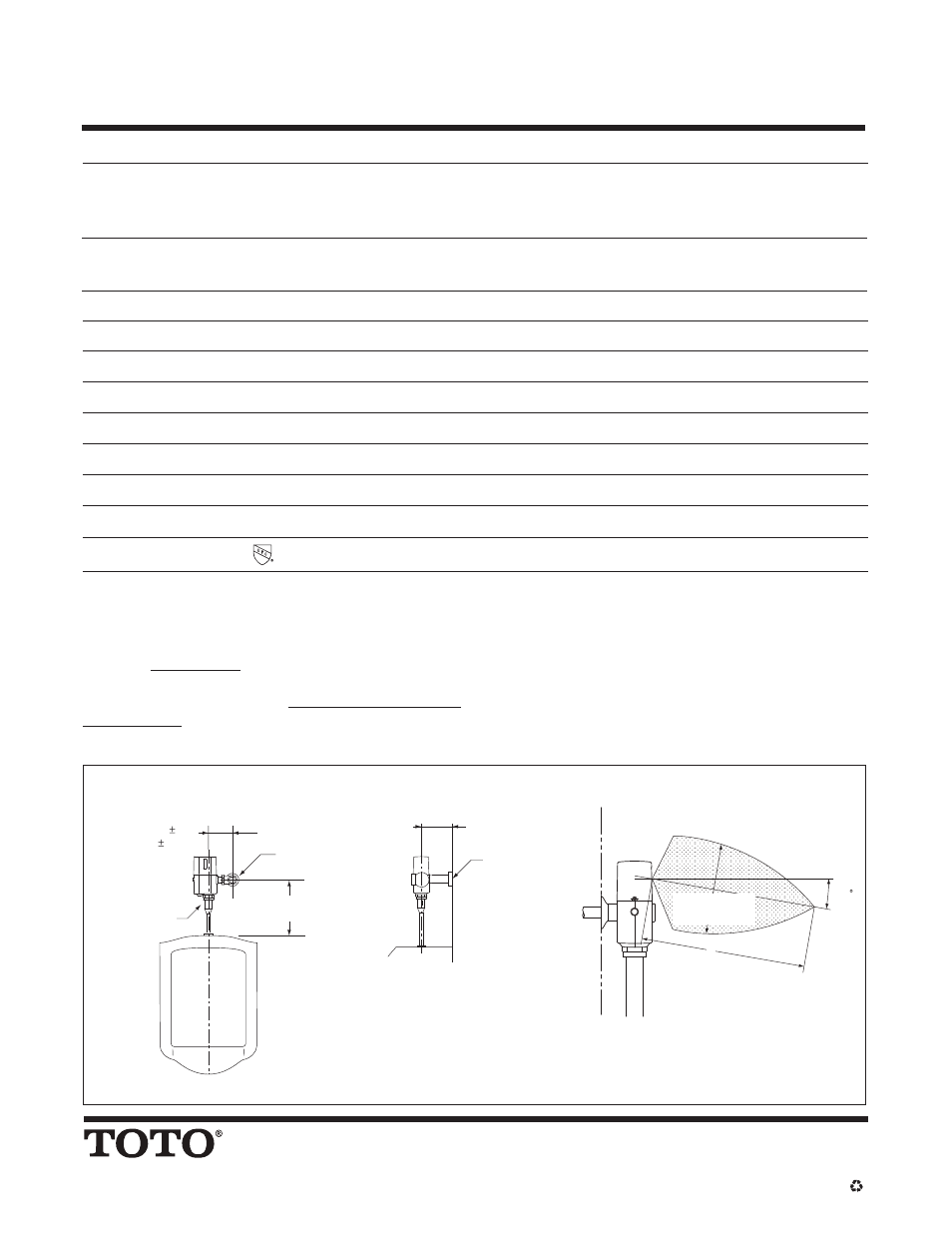

DIAGRAM:
TEU1LN12#CP
These dimensions and specifications are subject to change without notice.
*Water pressures over 80 psi are not recommended for most plumbing fixtures.
*Check local codes
4−3/4 1/2"
(120 13mm)
3/4"
inlet supply
11−1/2"
(292mm) 1−1/2"
NPSM
Min.2−1/4"(57mm)
3/4"NPT
L
Max19-11/16"
(Max 500 mm)
Max31-1/2"
(Max 800 mm)
15
U.S. Patent Pending
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 10/07 #H80155
Printed on recycled paper
REV 10/07
*
