8

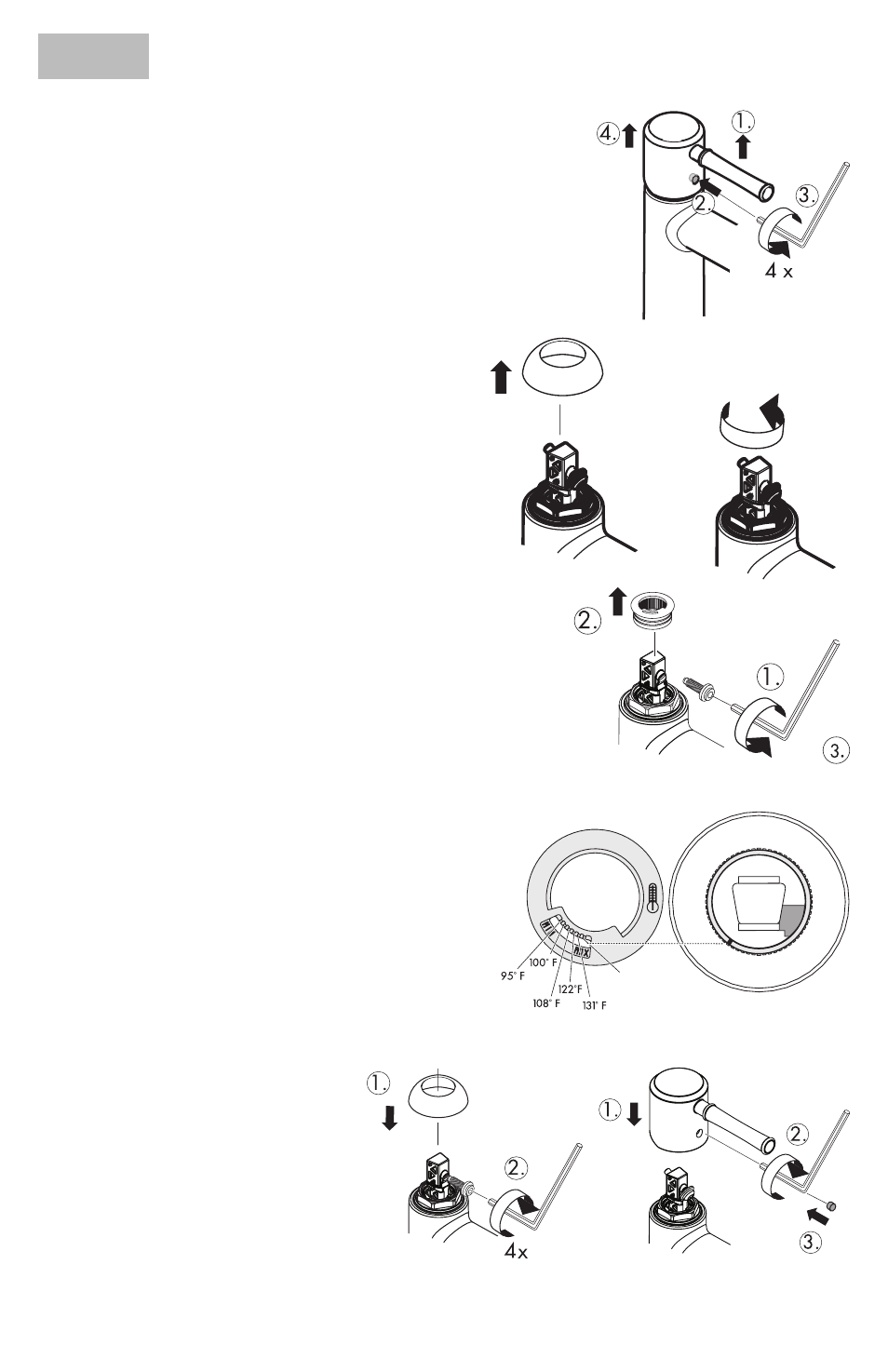

Set the High Temperature Limit Stop
(optional)
Lift the handle (1).
Use a 4 mm �llen wrench to push the screw cover into
the handle (2).
Use the 4mm �llen wrench to loosen the handle screw
4 complete revolutions (3).
Remove the handle (4).
Retrieve the screw cover.
Remove the nut cover.
Turn the stem counter-clockwise.
Remove the handle screw (1).
Remove the high temperature limit stop (2).
Replace the high temperature limit stop so that the pin
on the cartridge is in the desired slot on the limit stop.
Note: the temperatures given in the diagram assume
a water heater temperature of 140° F, a cold water
temperature of 50°F and a water pressure of 45 PSI.
Replace the nut cover (1).
Replace the handle screw. Use the
�llen wrench to turn the screw 4 revolu-
tions (2).
Replace the handle (1). Tighten the
handle screw (2).
Install the screw cover (3).
English
