Installation
Unscrew the handshower holder escutcheon. Remove the
insert. Put both pieces in a safe place.
Interaktiv Hose Pull-Out Set
06438XXX

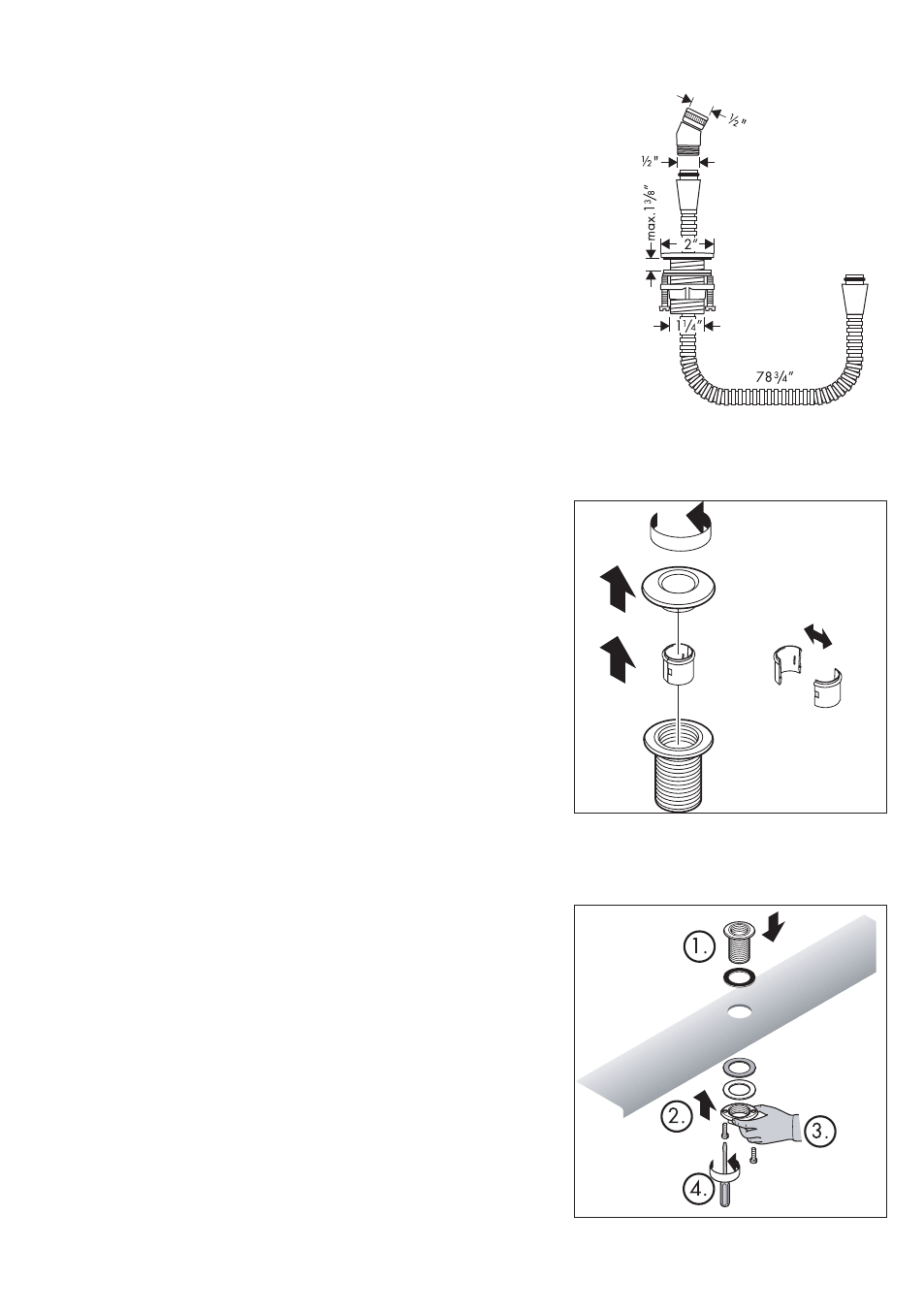

Technical Specification
Maximum mounting surface thickness 1 1/"
Hole size in mounting surface 1 1/"
Protection against back siphonage provided by a check
valve installed in the elbow.
Installation Consideration:
The mounting surface must be complete and made water-
tight prior to installation of this unit.
Place the handshower holder and sealing ring in place on
the mounting surface (1).
From below the mounting surface, install the friction washer,
metal washer, and mounting nut ().
Tighten the mounting nut (3). Tighten the tensioning screws
(4).
