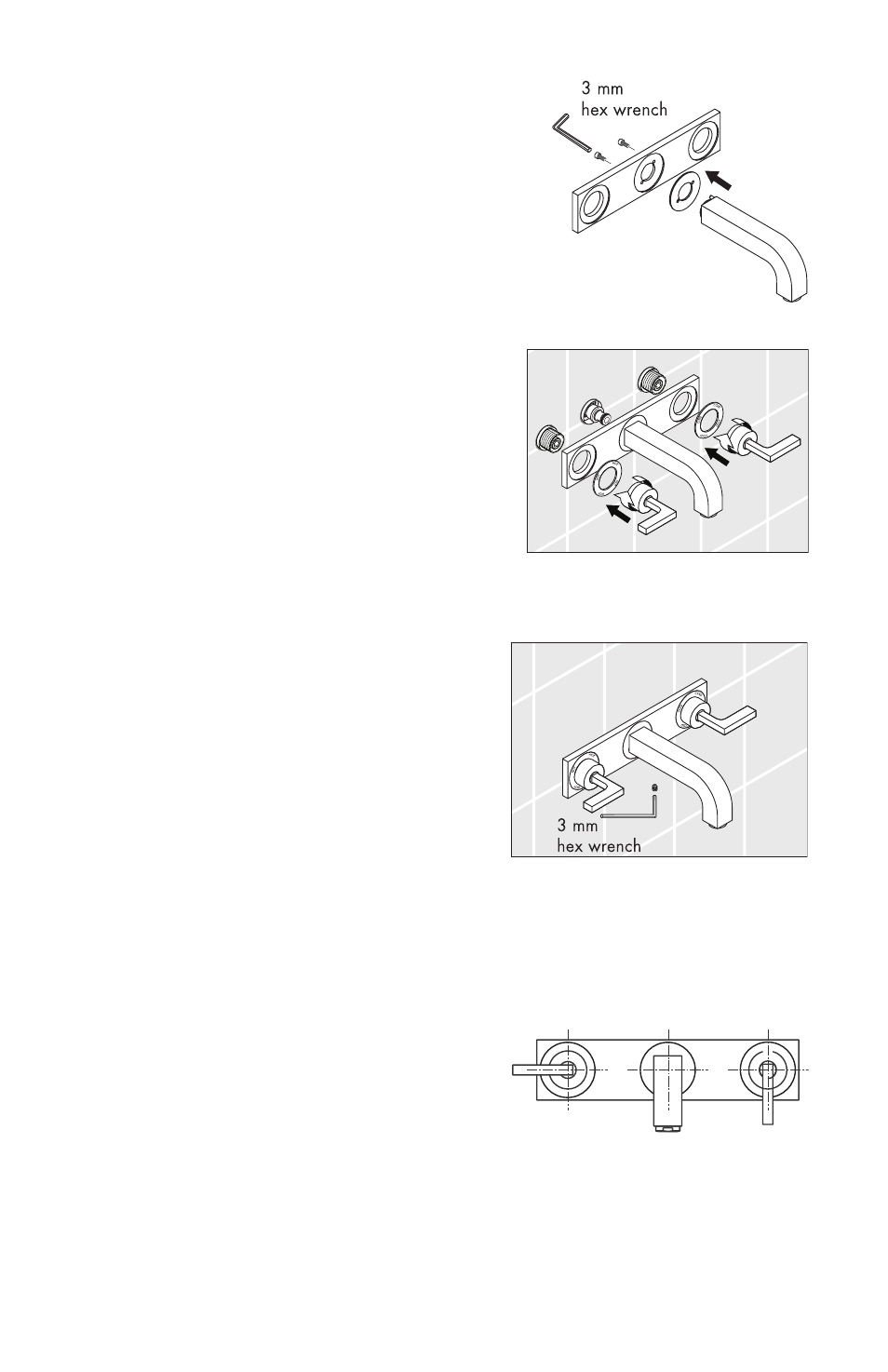

· Attach the spout and spout
escutcheon to the wall plate with
the screws provided.
· Place the plate and spout
assembly over the valve. Install
the handle escutcheons and the
handles. Turn the handle bases
clockwise, so that they thread
onto the outer sleeves.
· Secure the spout to the spout
adapter by tightening the set
screw.
User Instructions – Lever handle version
· Turn the handle downwards
(clockwise for cold, counter-
clockwise for hot) to turn the
water on. Turn the handle
upwards to turn the water off.
· In the off position, the handles
should be parallel to the floor.
