2
Installation Considerations
For best results, Hansgrohe
recommends that this unit be
installed by a licensed, profes-
sional plumber.
Please read over these instruc-
tions thoroughly before begin-
ning installation. Make sure that
you have all tools and supplies
needed to complete the instal-
lation.
•
•
Technical Information
Recommended water pressure 14.7 - 72.5 psi
Max. water pressure 145 psi
Recommended hot water temp. 120° - 140° F*
Max. hot water temp 176° F*
Hole size in mounting surface 1 3/8"
Max. mounting surface depth 1 3/8"
Flow rate – lavatory 1.5 gpm
Flow rate – bidet 2.2 gpm
Cartridge with high temperature limit stop
3/8" supply hoses
*Please know and follow all applicable local plumbing codes when
setting the temperature on the water heater.

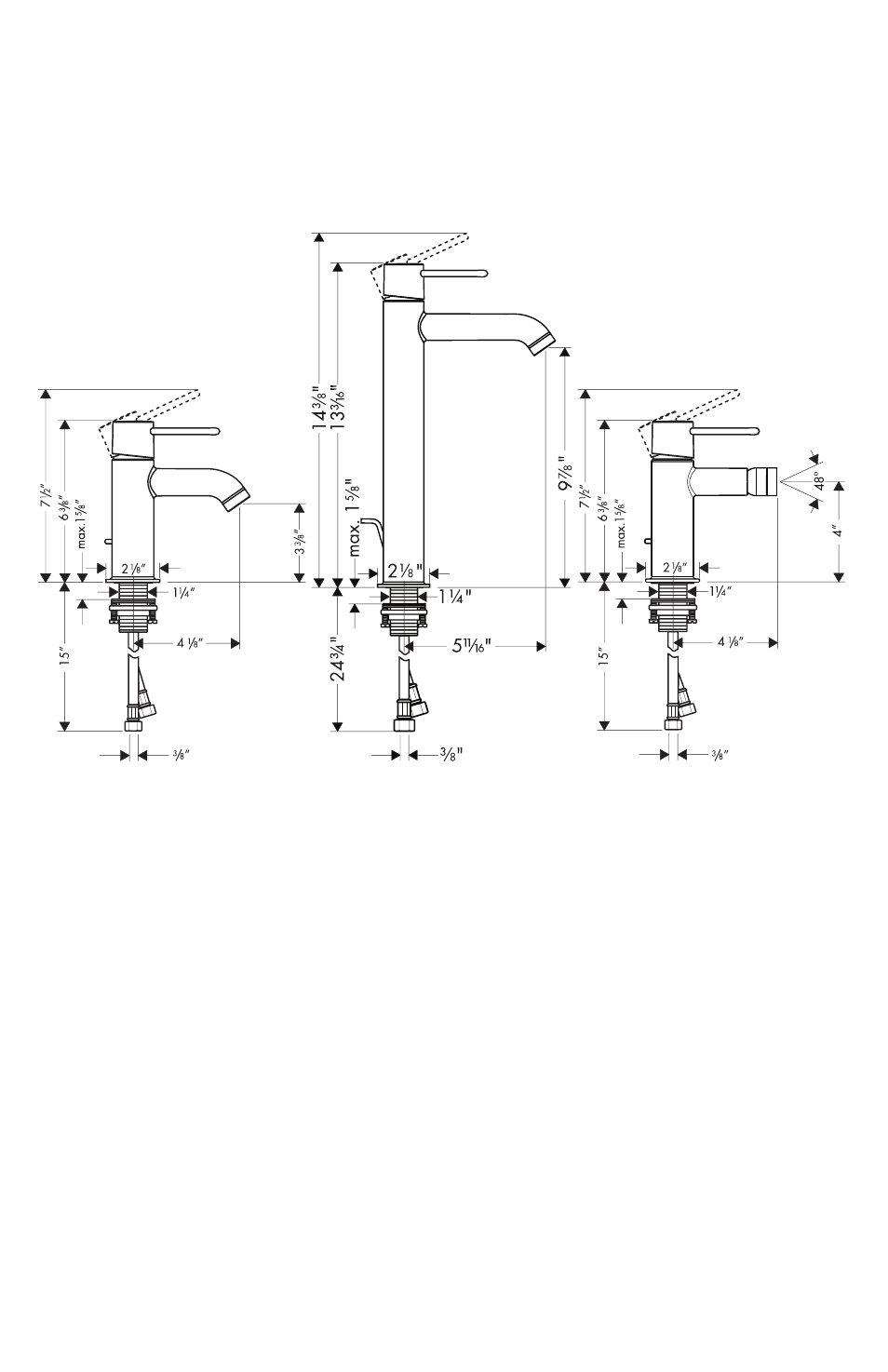

Uno Single-control Lavatory Faucet 38020XX1
Uno Single-control Tall Lavatory Faucet 38025XX1
Uno Single-control Bidet Faucet 38210XX1
38020XX1 38210XX1 38025XX1
