HANSGROHE PRODUCT SERVICE

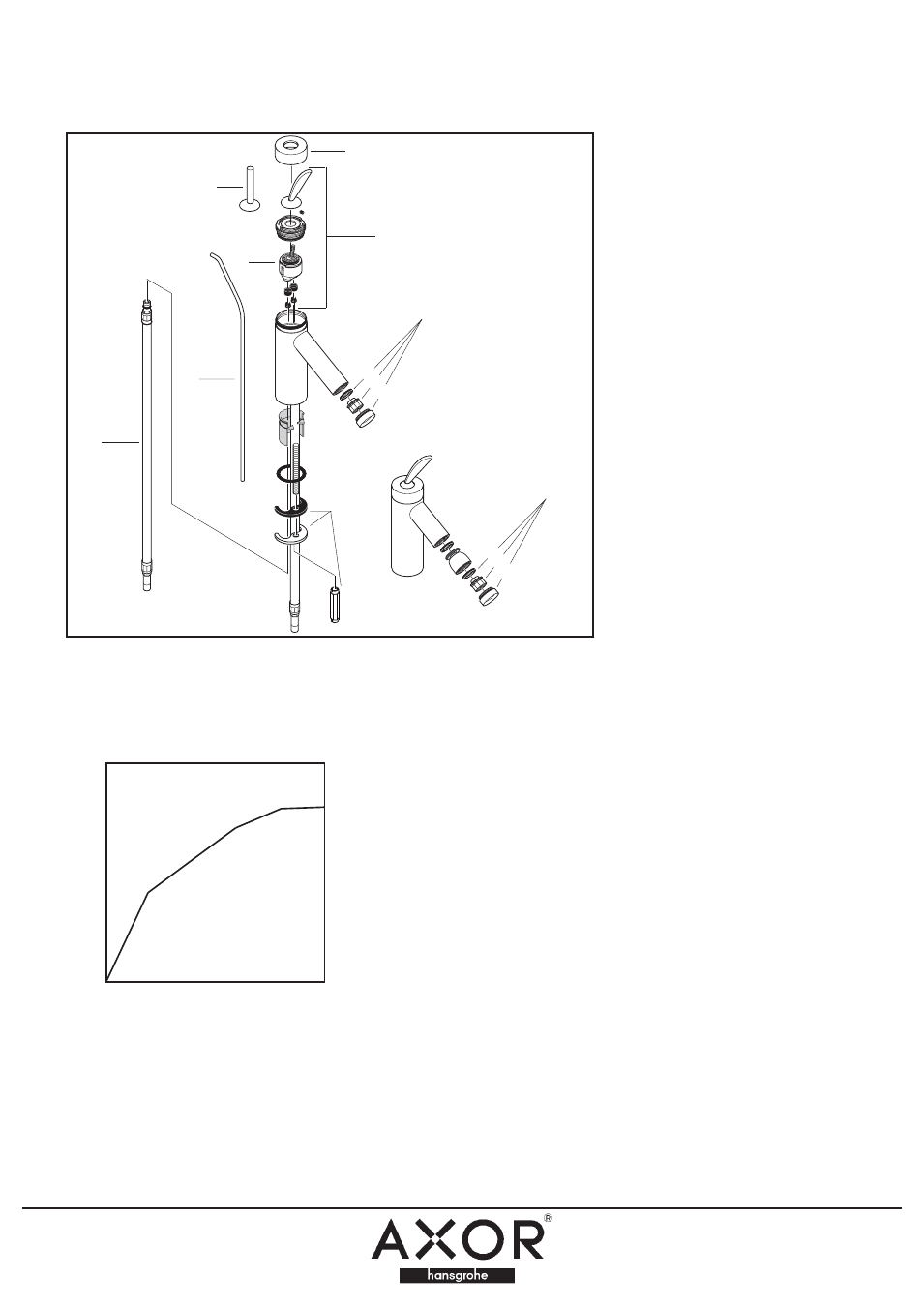

1 Flange
2 Handle with cartridge 96231XXX
3 Handle "Puro"
4 cartridge 96339000
5 Aerator
3a Aerator casing 10072868
3b Aerator cpl. 30631118
3c Gasket 90328910
6 Lift rod 94006XXX
7 Tube 30668710
8 Fixation cpl. 94701000
XXX = Color code: 000 chrome
810 satinox
Spare parts
Cleaning instructions:
· Clean with a liquid domestic cleaner or with soap suds. Afterwards rinse with clear water and polish with a cloth.
· Do not use any cleaning agents containing acid or scouring agents.
· Damage caused by improper treatment is not subject to our guarantee.
8
7
1
6
5
5a
5b
5c
2
5
5a
5b
5c
4
Operating pressure : max. 147 psi
Recommended operating press. : 14.7 - 72.5 psi
Test pressure : 232 psi
Hot water temperature : max. 176° F
Recommended hot water temp. : 149° F
0 15 30 45 60 75 psi
0
0,5
1,0
1,5
2,5
2,0
gpm
Flow chart
3
