11/04
HANSGROHE PRODUCT SERVICE
SINGEL LEVER LAV MIXER
SINGEL LEVER BASIN MIXER
SINGEL LEVER BIDET MIXER
Ref. No.:
10010XX1/10015XX1/10200XX1
10011XX1/10016XX1/10201XX1
Installation
Starck / Starck Puro
Assembly
1. Flush pipe lines thoroughly.
2. Place the mixer including the sealing washer in position on the basin.
3. Slip the fixation piece including the washer over the threaded pin and tighten the nut.
4. Connect the supply pipes to the supply valves: hot-left; cold-right.
5. Connect the pop-up rod to the pop-up waste assembly.
Large differences in pressure between the hot and cold water supply should be balanced.
Operation
The mixer is actuated by pushing the lever head.
Swivel to the left = hot water,
swivel to the rigth = cold water.

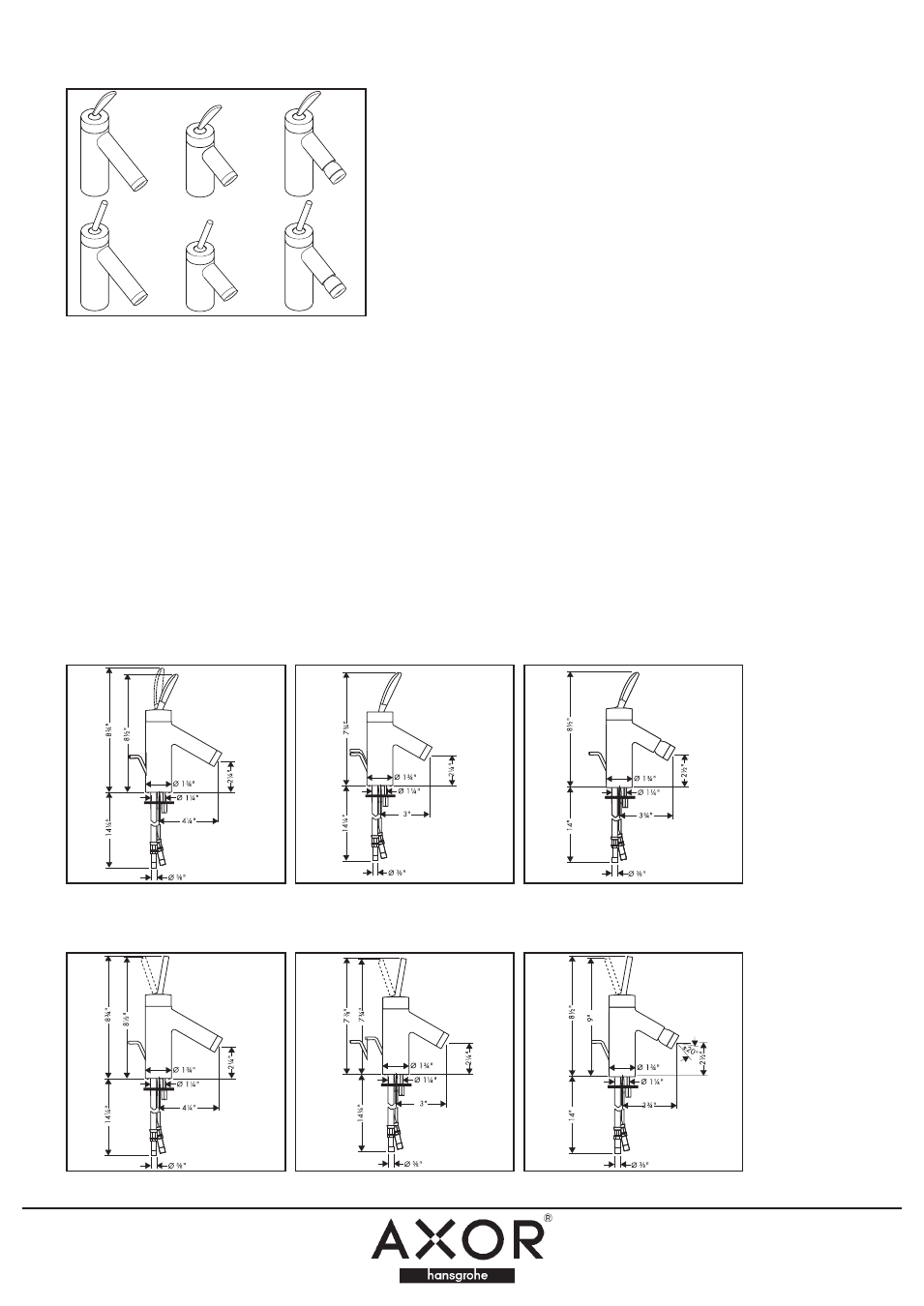

Technical data
Hole size in deck:
Minimum: 1 1/4"
Maximum: 1 5/8"
Lav Mixer 10010XX1
Basin Mixer 10015XX1
Bidet Mixer 10200XX1
Lav Mixer 10011XX1
Basin Mixer 10016XX1
Bidet Mixer 10201XX1
