6
Install the Pop Up Drain
Remove the plunger assembly.
Unscrew the drain outlet flange
from the tee.
Unscrew the tailpiece from the
tee. Wrap the threads with
plumbers’ thread tape and
replace.
Install the flexible sealing gasket
to the flange. Sit it in the sink
outlet.
From under the sink, install the
black mack gasket, white friction
ring, and retainer nut to the
flange. Do not tighten the nut
against the bottom of the sink at
this time.
Thread the tee and tailpiece to
the flange. The pivot must face
the faucet. If necessary, turn the
drain assembly.
Tighten the retainer nut.
Sit the plunger assembly in the
drain.
Install the horizontal rod through the pivot ball seals and into the tee so that the
end goes through the loop in the bottom of the height adjuster. The two pivot ball
seals should surround the pivot ball.
Slide the link over end of pull rod. Tighten screw.
Slide one end of spring clip over end of horizontal rod. Slide link over end of
horizontal rod. Test motion of drain plunger. Reposition link as necessary. There
are multiple holes in the linkage -- the horizontal rod may go through any of the
holes.
When satisfied with the action of the drain, slide the other end of the spring clip
over the end of the horizontal rod.

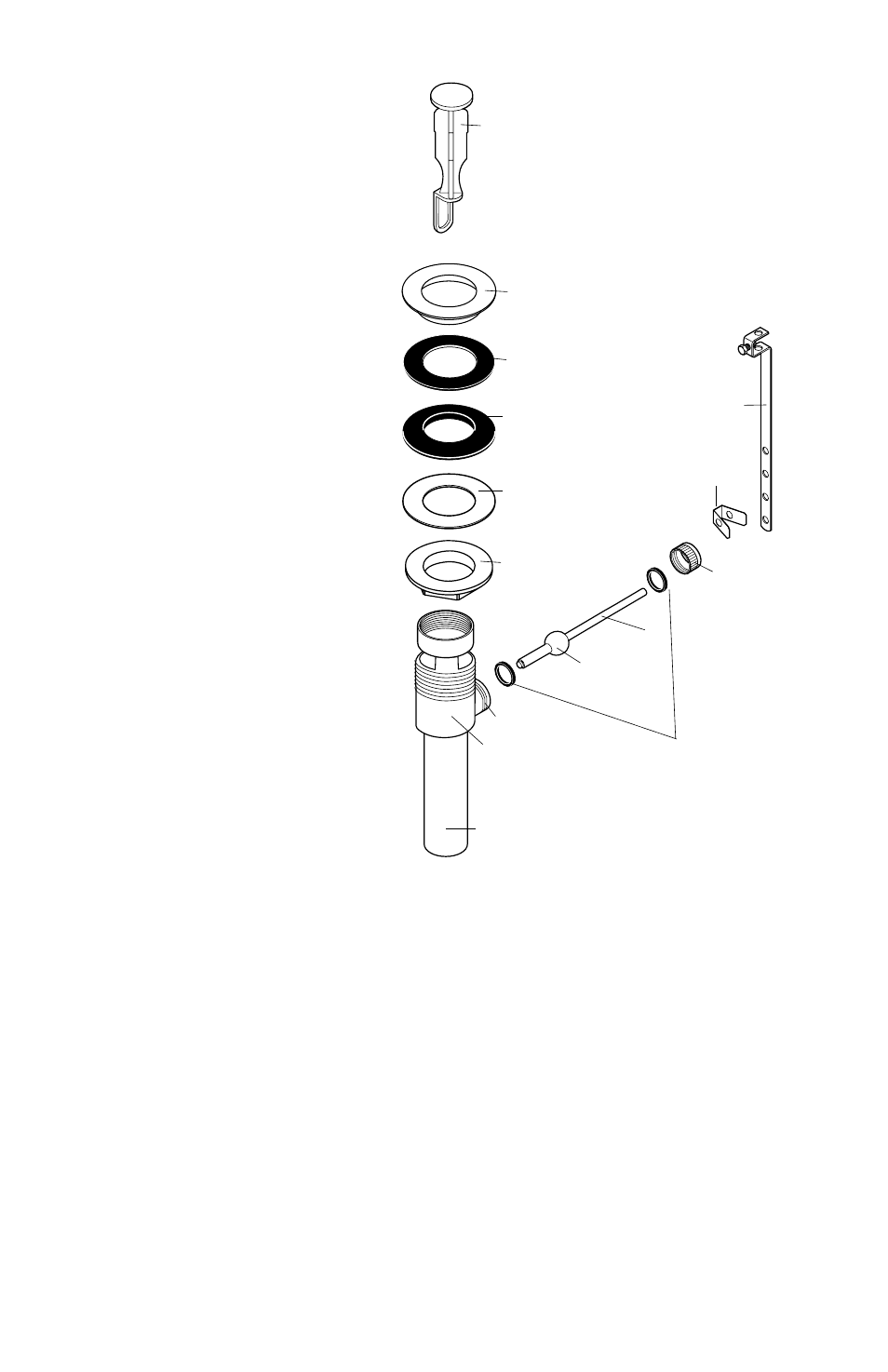

plunger
flange
tailpiece
sealing gasket
mack gasket
friction ring
retainer nut
tee
pivot
horizontal rod
pivot ball
pivot ball seals
spring clip
link
nut
