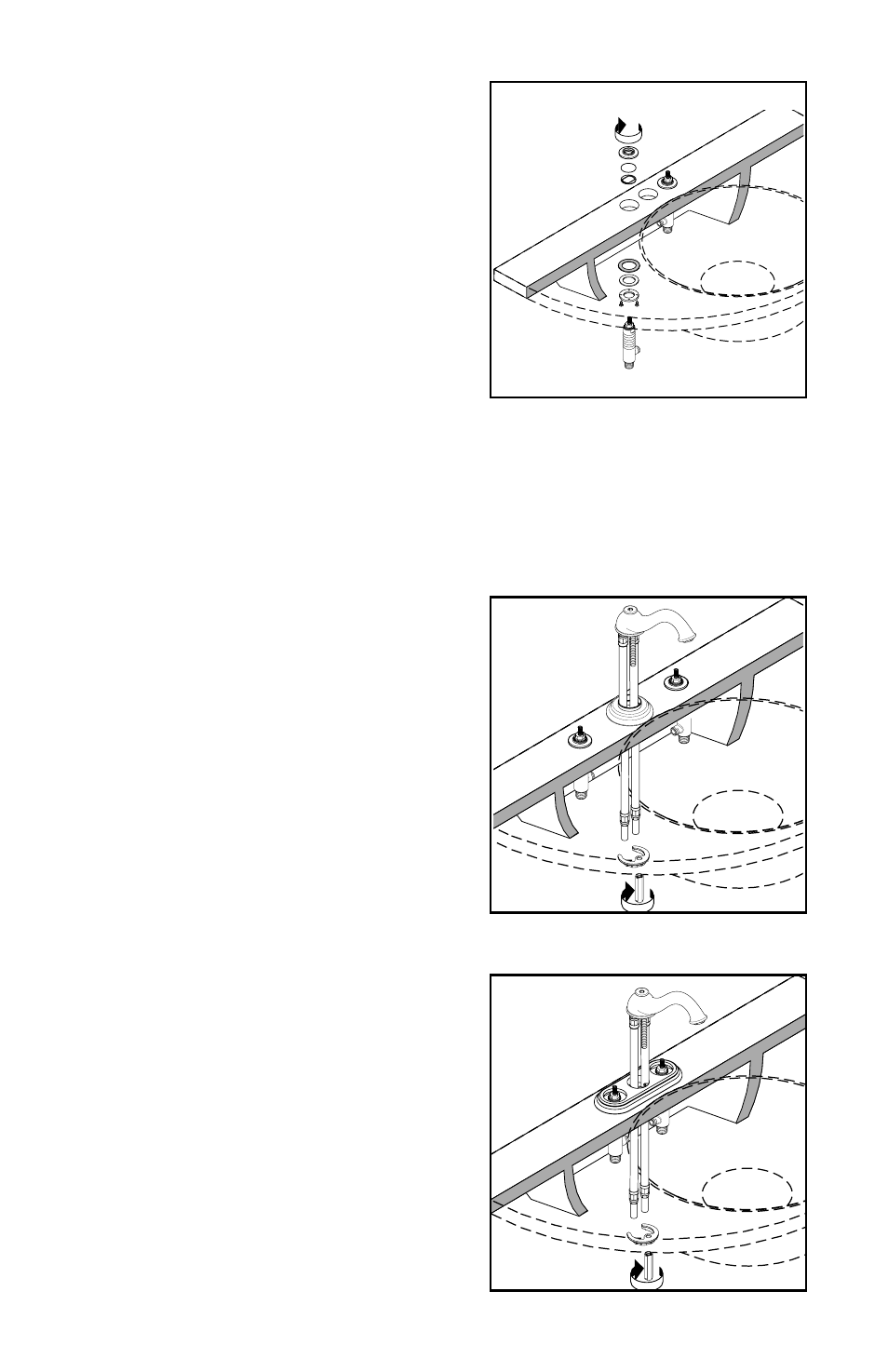

Install the hot and cold valves
Install the mounting nut, metal washer and
the fiber washer to the valve.
Install the o-rings to the grooves on the
mounting plates.
Insert the valve through the hole in the deck
from the below the mounting surface. The
hot valve is marked with a red dot.
From the top, install the stop ring to the
valve. Thread the mounting plate onto the
valve as far as it will go — the stop ring will stop it at the proper height. Place the
valve on the mounting surface. Turn the valves so that the outlet ports point toward
the center.
From below the mounting surface, tighten the mounting nut. Tighten the tensioning
screws.
Install the spout
Swing and Limbo Widespread:
Position the spout deco ring on the mounting
surface. Place the spout in the deco ring.
Interaktiv and Tango Widespread:
Place the spout and sealing ring on top of
the mounting surface.
4” Centerset models only: Position
the escutcheon on the countertop. Place the
spout on the escutcheon.
All models: From beneath the mounting
surface, install the mounting flange. Thread
the collar onto the stud and tighten.
