Electronic Activated Flushvalve
1600T and 1601T Series
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
DSP–1600T6 Rev. B
Refer to www.specselect.com for individual models.
Product supplied as shown by solid lines. All items shown by dotted lines supplied by others.
Note: Measurements may vary ± 6mm (0.25'')
1600T ELECTRONIC FLUSH VALVE OPTIONAL ACCESSORIES:
Approvals:
• CSA certified
• ADA Compliant and meets
Handicapped Accessibility
Standard ASME A117.1 of less than
5 lbs. handle operating force.
• IAPMO listed
• Complies to ASSE Standard 1037
(Contact Delta Representative for State and/or
Local Approvals.)
W.C. OPERATION:
• 8 second blocking time.
• 4 second activation delay.
• Adjustable flush volume using adjustment
screw on flushvalve.
• Selectable sensing distance:
24 to 56" in 8" increments
Factory set to 40"
• 24 hour courtesy flush factory set to off.
URINAL OPERATION:
• 8 second blocking time.
• 0 second activation delay.
• Adjustable flush volume using adjustment
screw on flushvalve.
• Selectable sensing distance:
12 to 28" in 4" increments
Factory set to 20"
• Adjustable 24 hour courtesy flush factory
set to on.

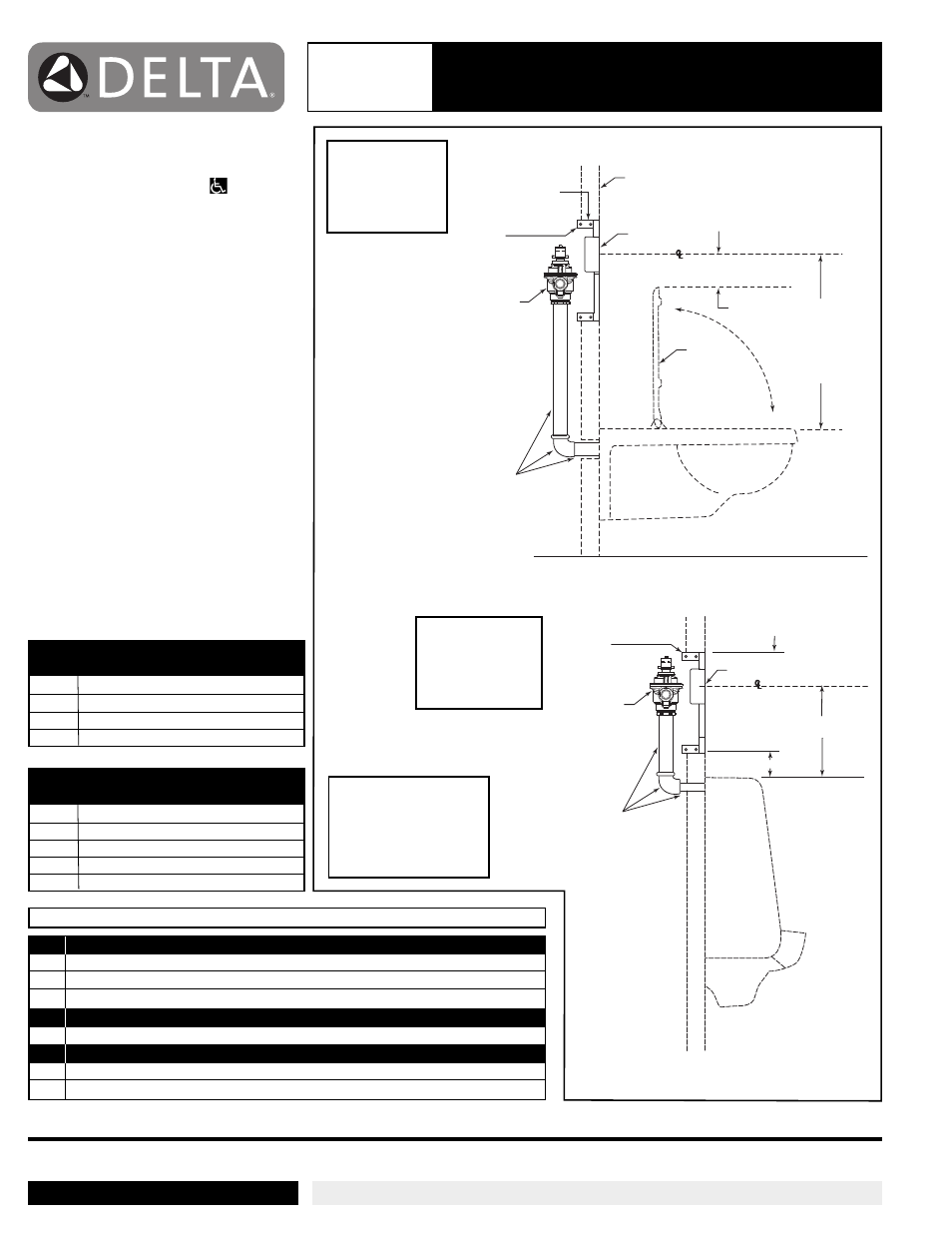

1600T6103RI
and
1600T6103TR
Typical
Installation
1600T6403RI
and
1600T6403TR
Typical
Installation
✔
TRANSFORMERS:
060704A 110 to 24VAC Class II 20VA (For 5 Sensor Modules)
060771A 110 to 24VAC Class II 40VA (Up to 10 Sensor Modules)
060772A 110 to 24VAC Class II 100VA (Up to 25 Sensor Modules)
✔
CORDS:
060680A 4' Solenoid Extension Wire
✔
HARDWIRE CONVERTER:
060683A 24VAC to 6VDC Converter (Supplied standard on Hardwire models)
061047A 24VAC to 6VDC Converter with Battery Backup (Standard on “-BB” models)
FLUSH VOLUME OPTIONS
Fixture # 1, 2 or 3 (Factory set at 60 psi)
Suffix Add Suffix to “RI” Product Number
None 6 litre (1.6 US gal) Adjustable
-6 6 litre (1.6 US gal) Not field adjustable
-48 4.8 litre (1.27 US gal) Not field adjustable
FLUSH VOLUME OPTIONS
Fixture # 4 (Factory set at 60 psi)
Suffix Add Suffix to “RI” Product Number
None 1.9 litre (0.5 US gal) Adjustable
-38 3.8 litre (1.0 US gal) Not field adjustable
-19 1.9 litre (0.5 US gal) Not field adjustable
-05 0.5 litre (0.13 US gal) Not field adjustable
305mm (12")
Square Frame
Flush Valve
Access
Box Frame
356mm (14")
Square
Stainless
Steel Cover
Sensor
Seat
76mm (3")
of Sensor
Outlet Parts
Tubing, Elbow, Wall
and Spud Flange,
Spud Nut, etc.
Supplied as Required
for Fixture Specified.
Note:
Recommended
height to sensor
from top of
fixture is
20-22" with
24" max.
Flushvalve
Access
Box Frame
305mm (12") Square Frame
of sensor
Outlet Parts
Tubing, Elbow, Wall
and Spud Flange,
Spud Nut, etc.
Supplied as Required
for Fixture Specified.
(Except For 3/4" and
1 1/4" Top Inlet Urinal
Fixtures.)
76mm (3 ")
Sensor
279mm (11")
TECK ®
COMMERCIAL
HARDWIRE WITH
BATTERY BACKUP
■ Add suffix “-BB” to TR
Product Number. See DSP-BB
for detailed specification.
