4

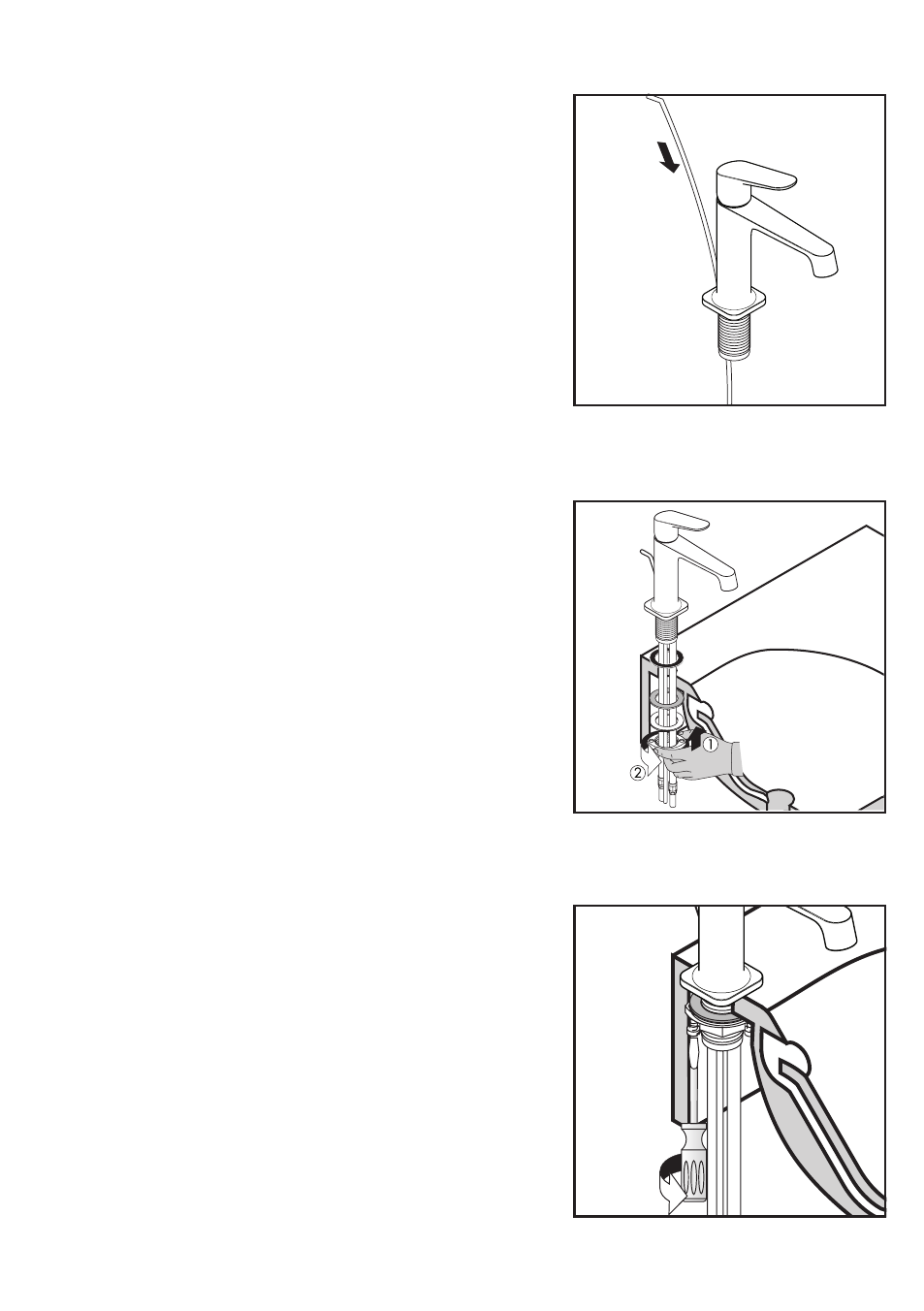

Installation

Install the drain pull rod*.

Position the faucet and sealing gasket on the mounting

surface.
Install the fiber washer, friction washer, and mounting

nut.
Tighten the mounting nut by hand.

Tighten the tensioning screws.

*Drain and pull rod not included with models

34017XX1 or 34027XX1.
