17885XX1 /17886XX1 Carlton
17982XX1 / 17983XX1 Phoenix

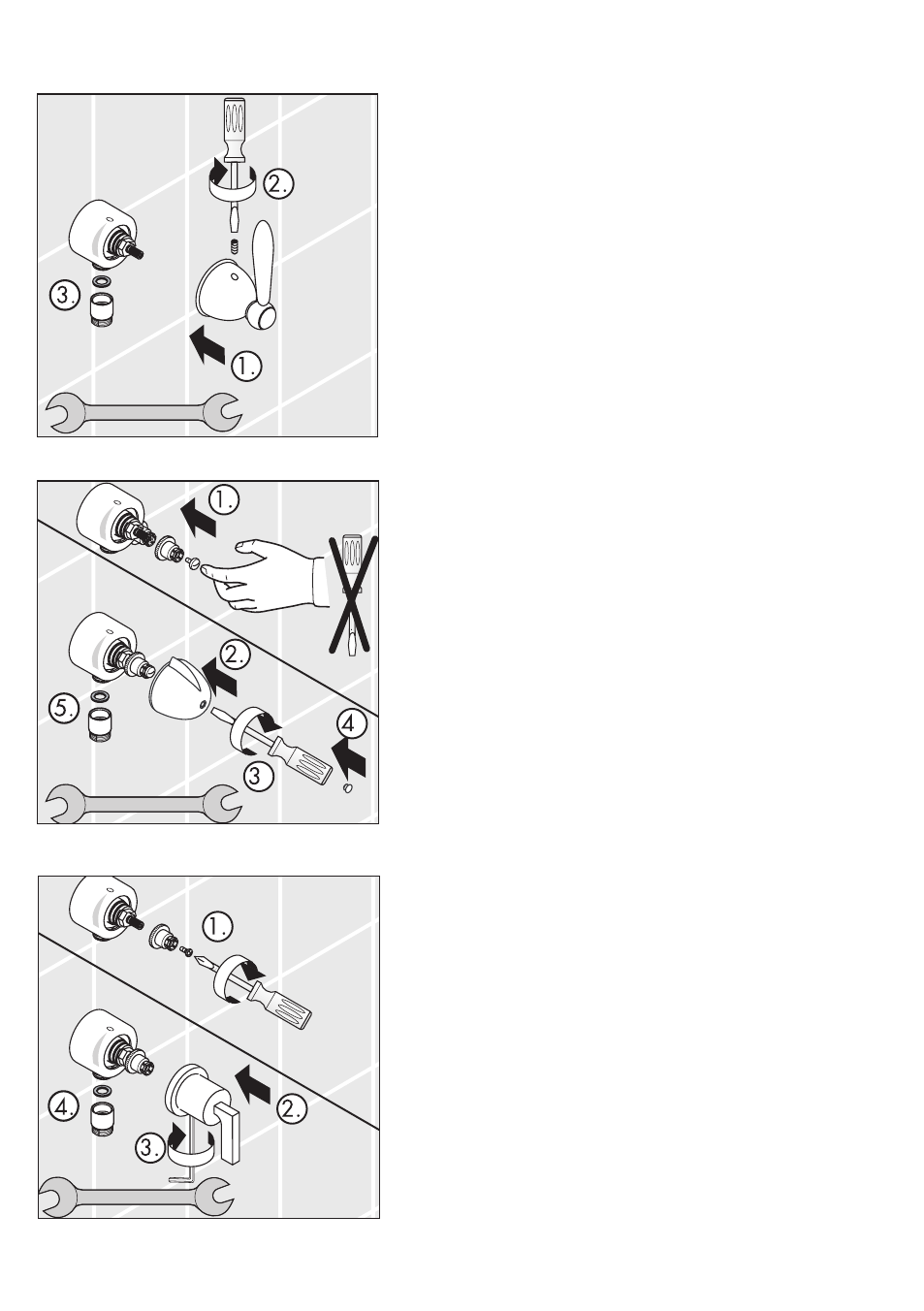

Push the handle onto the stem (1).
Tighten the screw (2).
Install the hose adapter and washer (3).
35882801 Steel
38882XX1 Uno
27452XX1
Tighten the screw by hand only three turns (1).
Snap on the handle (2).
Tighten the screw (3).
Cover the hole with the plastic cap (4).
Install the hose adapter and washer (5).
Citterio 39882XX1 / 39883XX1
Install the handle fixation and tighten the screw
(1).
Snap on the handle (2).
Tighten the set screw with a 2 mm Allen
wrench (3).
Install the hose adapter and washer (5).
