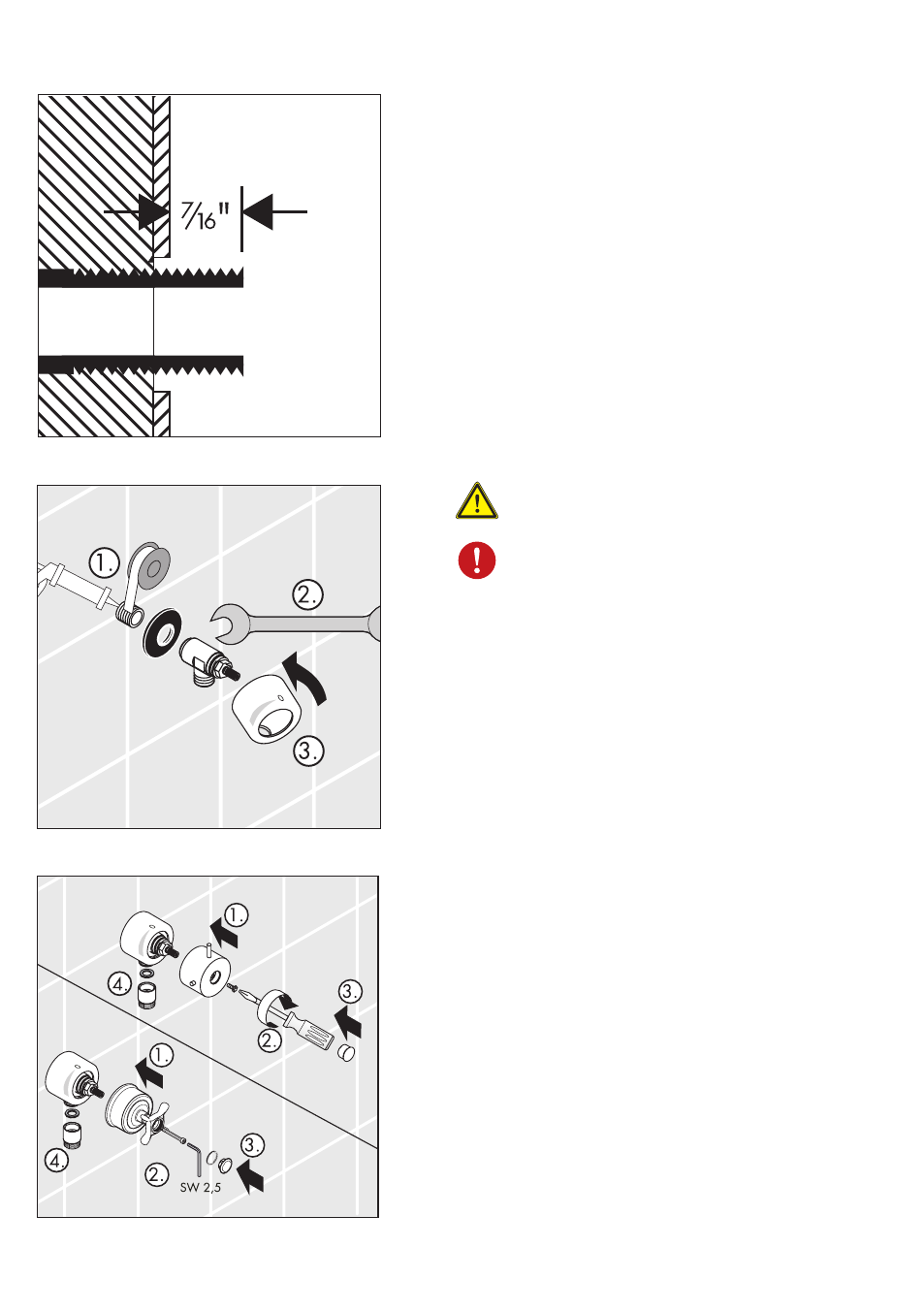

Seal the wall around the nipple
with waterproof sealant.
Failure to seal the wall can lead
to possible water damage.
Wrap the nipple with Teflon tape (1).
Position the flat seal over the nipple. Screw the
elbow firmly onto the nipple (2). Test for leaks.
Slide the cover over the elbow and snap into
place on the gasket (3).
Handle assembly
10882XX1 Starck
37882XX1 / 37883XX1 Terrano
16882XX1 / 16883XX1 Montreux
Push the handle onto the stem (1).
Tighten the screw (2).
Install the screw cover (3).
Install the hose adapter and washer (4).
This unit requires a 1/2" NPT male nipple,
extending 7/16" outside the surface of the
finished wall.
