PM33A35A_Rim_a

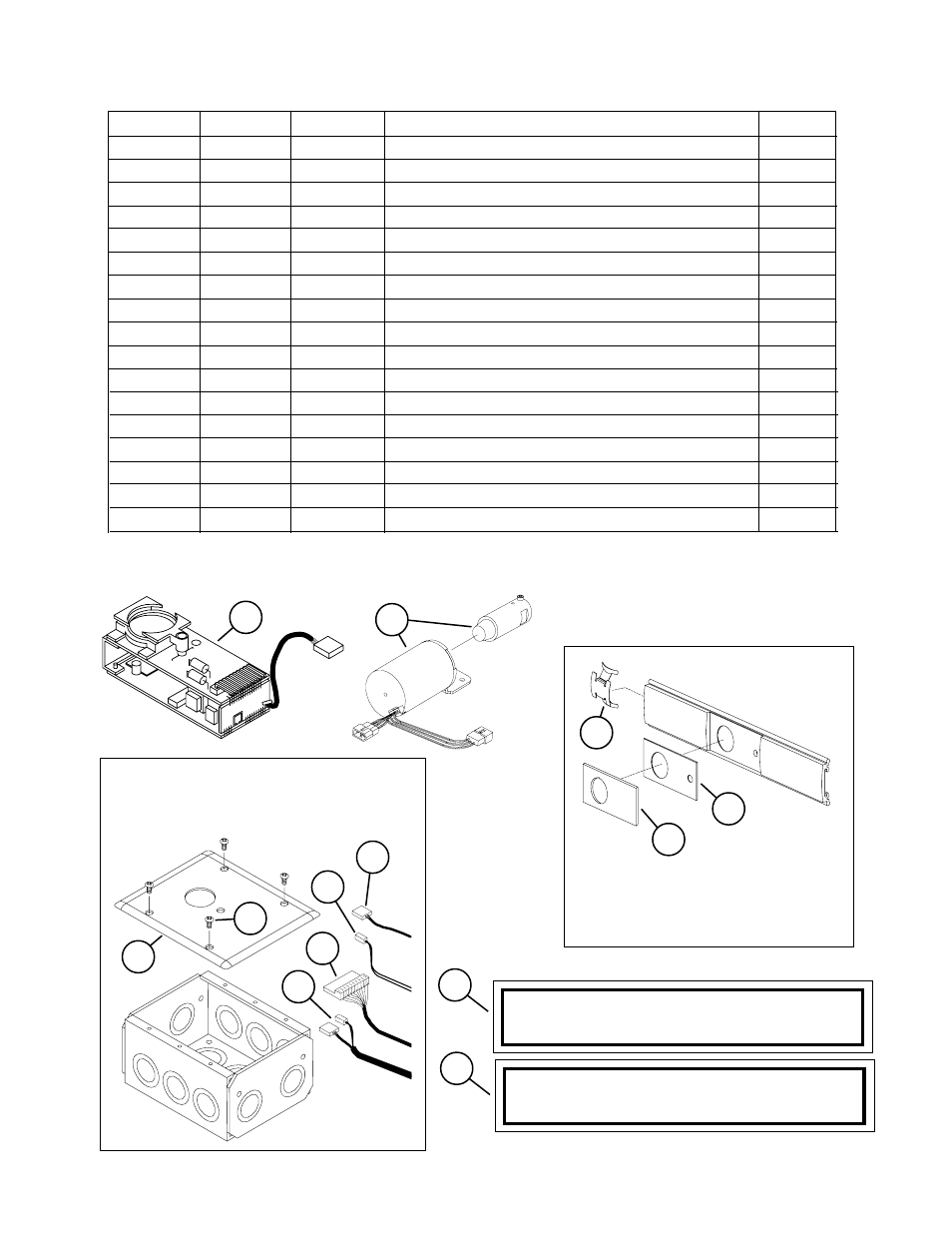

CX33A/35A SERIES CHEXIT AND CX-RCM OPTION
Item No. Quantity Part No. Description Finish
1 1 050228 Chexit PCB Kit - 15 Second Release
1* 1 050700 Chexit PCB Kit - 30 Second Release
1 1 050701 Chexit PCB Kit - 0 Second Release
1 1 050702 Chexit PCB Kit - Boca 15 Second Release
1* 1 050703 Chexit PCB Kit - Boca 30 Second Release
2 1 050533 CX Solenoid and Plunger
3 1 113111 Faceplate and Adapter X
4 4 963898 6-32 x 3/8” OPHMS Faceplate Screws X
5 1 991338 RCM 3 Wire RX Cable
6 1 991339 RCM 2 Wire Solenoid Cable
7 1 112018 Chexit Wiring Assembly
8 1 991336 CX-RCM Cable Assy - 5 Wire
9 1 090036 Cover Plate Anti-rattle Spring (Pkg of 10)
10 1 970513 LED Cover Mask - Chexit
11 1 970519 LED Cover - Chexit
12 1 113781 Sign 15 Second - Chexit
13 1 113782 Sign 30 Second - Chexit
*Over 15 seconds delay requires a letter of approval from authority having local jurisdiction.
Fax letter in with sales order. The order cannot be processed without the letter.
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 15 SECONDS
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 30 SECONDS
13
1
7
CX Cover Plate Kit
33A Series - 050669
35A Series - 050670
10
11
9
2
12
4
5
6
3
8
*RCM Kit Less Module - CX35A - 050376
*RCM Kit Less Module - CX33A - 050375
*Includes items 3-11
