PM33A35A_Rim_a

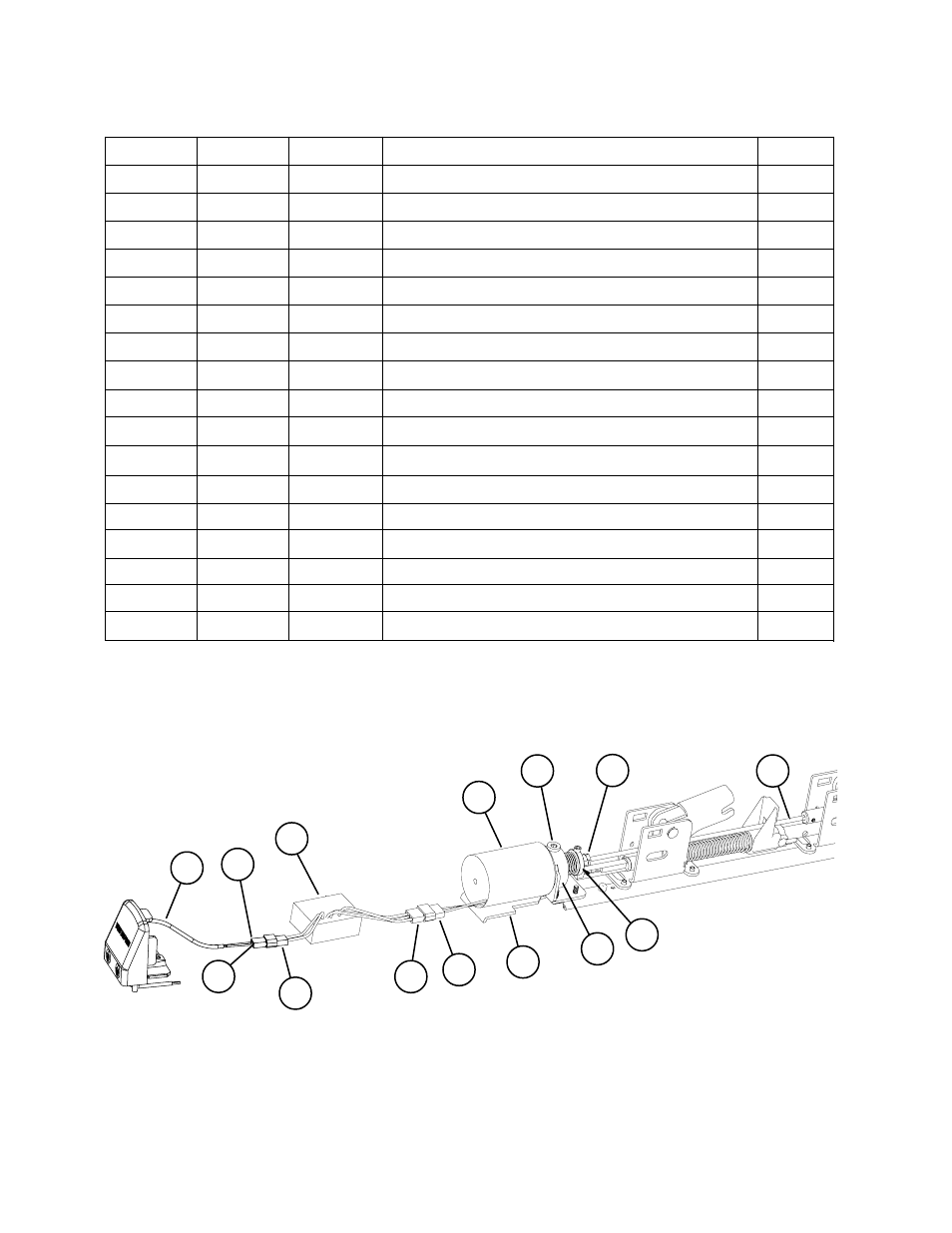

HD-EL33A/HD-EL35A HEX DOGGING/ELECTRIC LATCH
RETRACTION OPTION - PANIC DEVICE ONLY
Item No.
Quantity
Part No.
Description
Finish
1
1
050531
EL Dogging Rod Kit - 3’ Device
1
1
050532
EL Dogging Rod Kit - 4’ Device
2
1
110388
EL 6’ Cable and Connector
3
1
050534
EL Potted Circuit Breaker
4
1
050536
HD-EL Solenoid
5
1
050537
HD-EL Solenoid Plunger
6
1
050538
EL Dogging Rod Retainer
7
1
050539
EL Receptacle Connector - 2 Position
8
2
050540
EL Female Terminal
9
1
050541
HD-EL Dog Screw
10
1
050542
HD-EL Solenoid Bracket
11
1
050543
HD-EL Dogging Spring
12
1
990599
EL Plug Connector - 2 Position
13
1
990857
EL Receptacle Connector - 3 Position
14
1
990858
EL Plug Connector - 3 Position
*
1
050384
HD-EL Conversion Kit - 3'
*
1
050385
HD-EL Conversion Kit - 4'
*Kit includes items 1-11 plus new control link, retaining ring, and baseplate screws.
4
2
1
3
6
9
5
11
10
7
8
12
13
14
