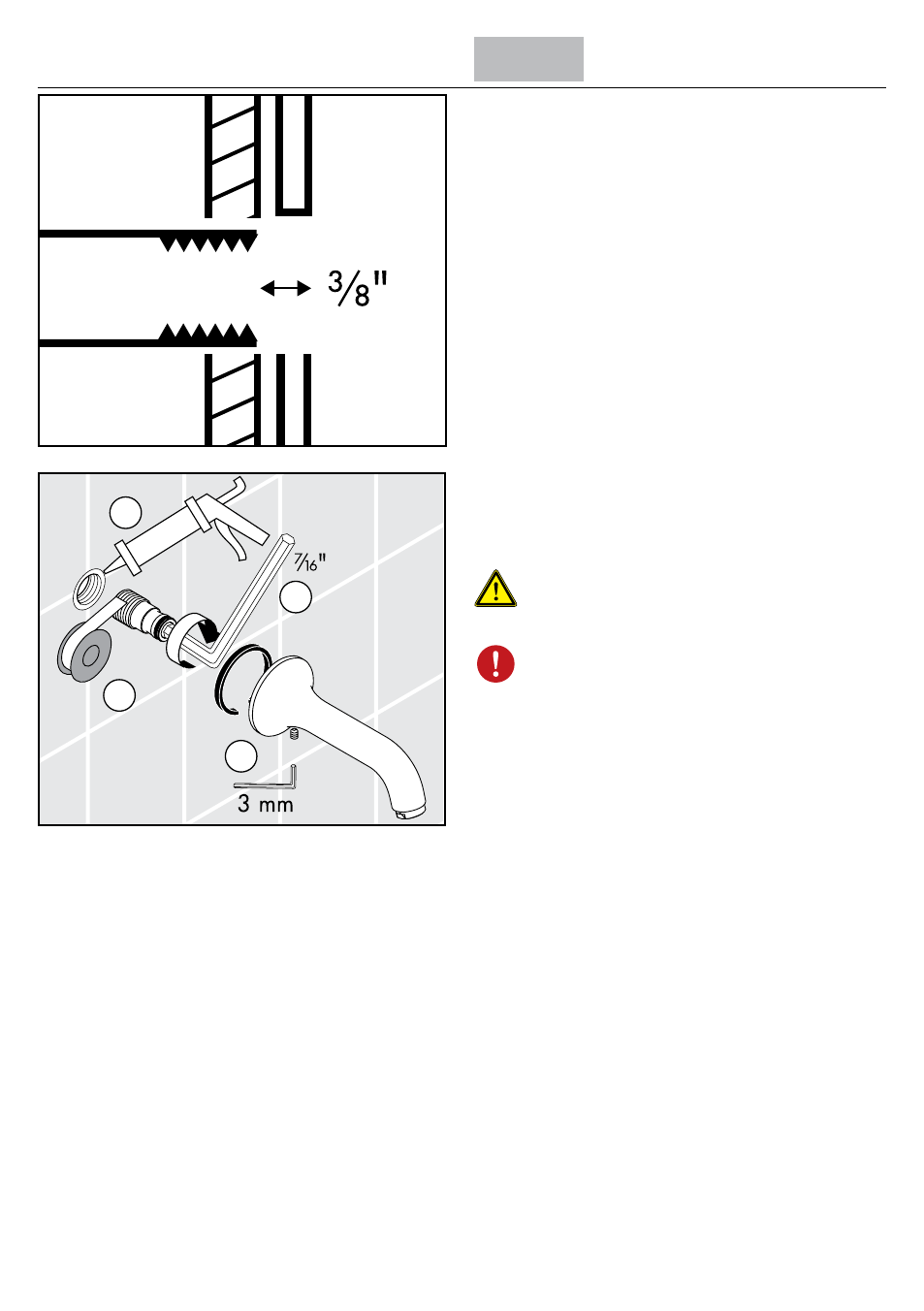

Installation – ¾"
Requires ¾" female threaded pipe fitting recessed ⅜"
behind surface of finished wall.
(1) Wrap the mounting piece with Teflon tape.
(2) Install the mounting piece. Tighten using a ⁷⁄₁₆"
Allen wrench (not included).
(3) Seal the wall around the
mounting piece using waterproof
sealant.
Failure to seal the wal may result in
water damage.
(4) Install the spout. Tighten the screw using a 3 mm
Allen wrench.
1
4
3
2
