Install the Pop-up Drain
Remove the plunger assembly.
Unscrew the drain outlet flange from the
tee.
Unscrew the tailpiece from the tee. Wrap
the threads with plumbers’ thread tape and
replace.
Install the white, flexible sealing gasket to
the flange. Place it in the sink outlet.
From under the sink, install the black mack
gasket, white friction ring and retainer nut
to the flange. Do not tighten the nut against
the bottom of the sink at this time.
Thread the tee and tailpiece to the flange.
The pivot must face the faucet. If neces-
sary, turn the drain assembly.
Tighten the retainer nut.
Place the plunger assembly in the drain.
Install the horizontal rod so that the end
goes through the loop in the bottom of the
height adjuster.
Install and hand tighten the pivot ball nut.
Attach the swivel connector to the end of
the horizontal rod.
Attach the swivel connector to the end
of the pull rod. Position as desired and
tighten with a small, flathead screwdriver.

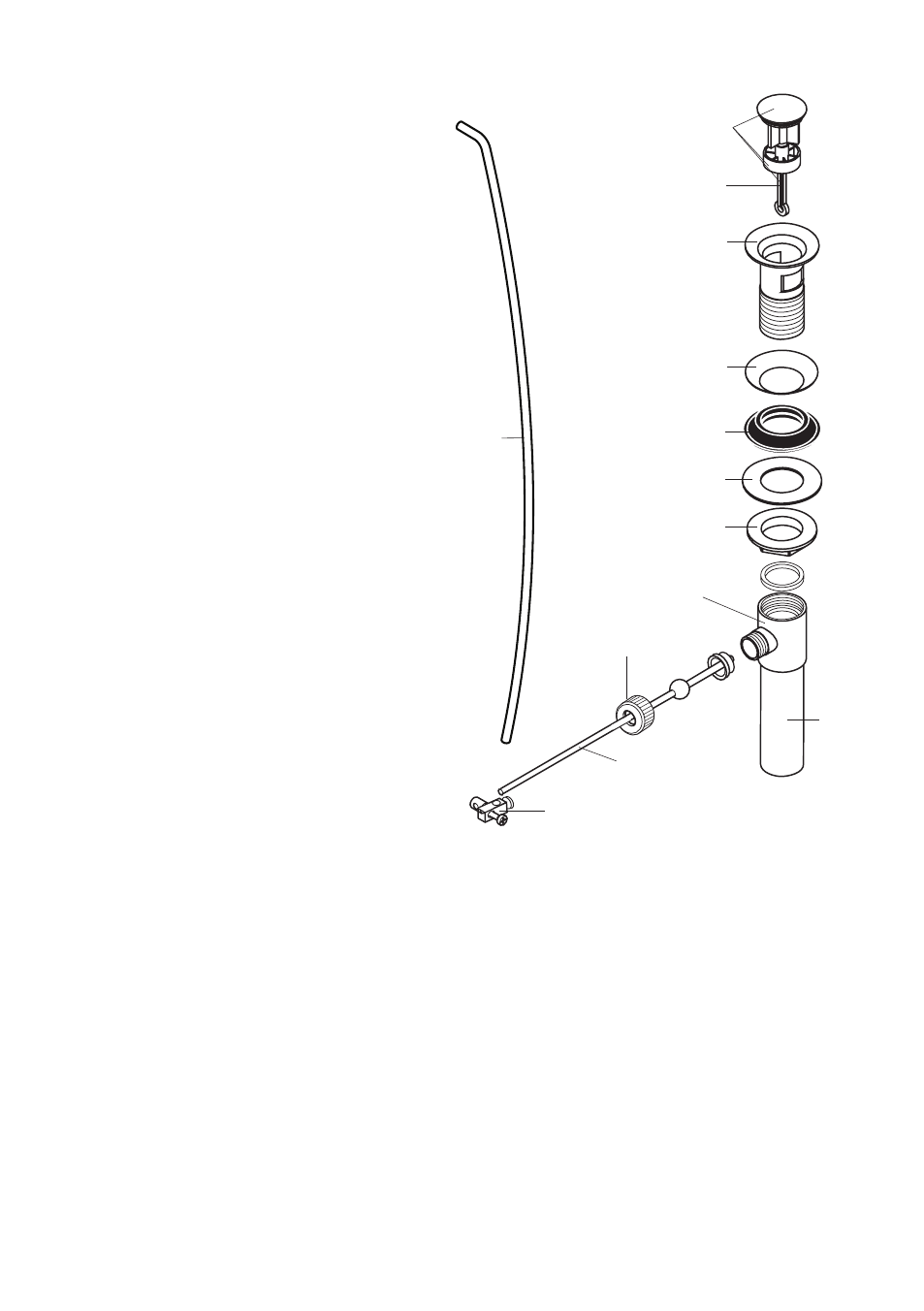

plunger
flange
sealing gasket
mack gasket
friction ring
retainer nut
horizontal rod
height adjuster
pivot ball nut
swivel connector
pull rod
tee
tailpiece
