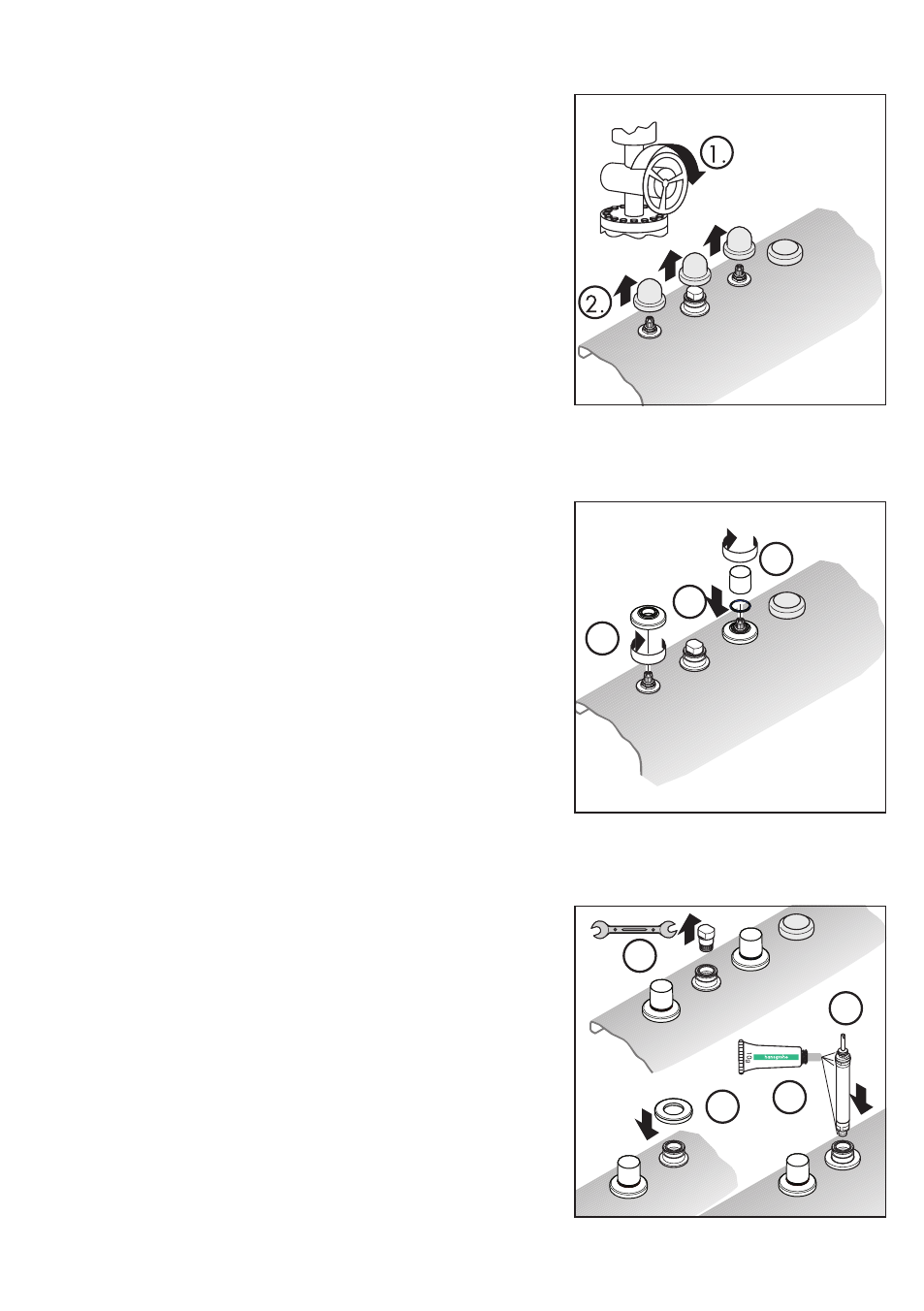

Installation
Turn the water off at the main (1).
Remove the plaster shields from the hot and cold valves
and the diverter housing ().
Install the escutcheons (1).
Install the color rings (). Push the handles firmly over the
escutcheons and color rings. Turn the handles clockwise
so that the valves are in the off position (3).
Remove the plug from the diverter housing (1). Install the
spout escutcheon ().
Put a light coating of the enclosed lubricant on the
diverter o-rings (3). Press the diverter firmly into the hous-
ing (4).
