Installation – Factory Direct Hardware Hansgrohe 04870 Talis S User Manual
Page 6

6
English
Installation

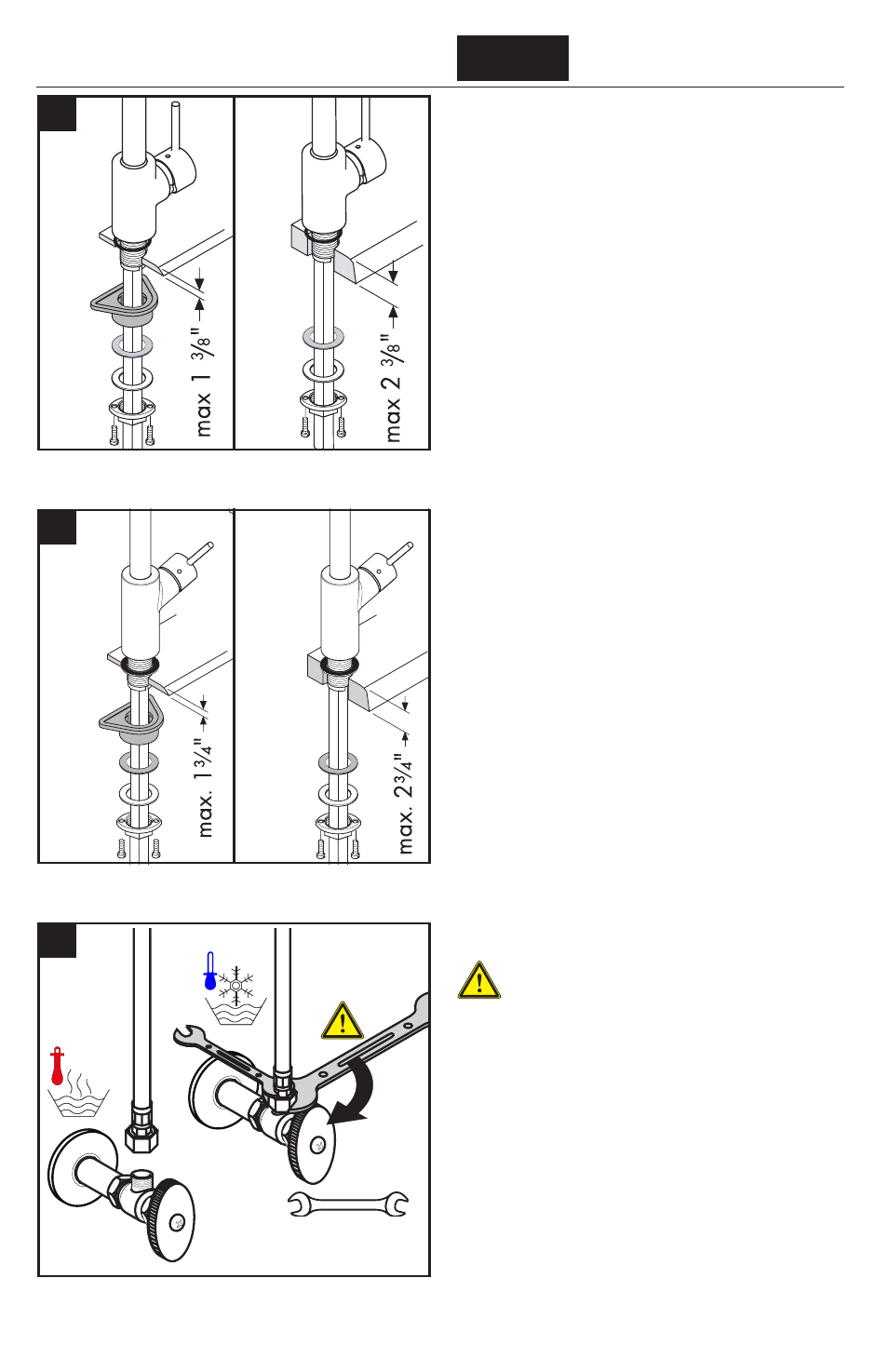

Place the faucet and sealing washer on the
mounting surface.
Install the plastic washer, fiber washer, friction
washer, and mounting nut.
If the mounting surface is greater than 1⅜", (1¾"
for 04287xx0 and 04207xx0) or if there is insuf-
ficient space, omit the plastic washer.
Tighten the mounting nut. Tighten the tensioning
screws.
Connect the hot and cold supply lines to the stops.
Use two wrenches, as shown, to
prevent the supply hoses from
twisting.
For proper operation of the faucet, the hot supply
should be on the left, and the cold supply should
be on the right.
Turn on the water and check all connections for
leaks.
04217xx0
9 mm
16 mm
1
2
3
04287xx0, 04207xx0
