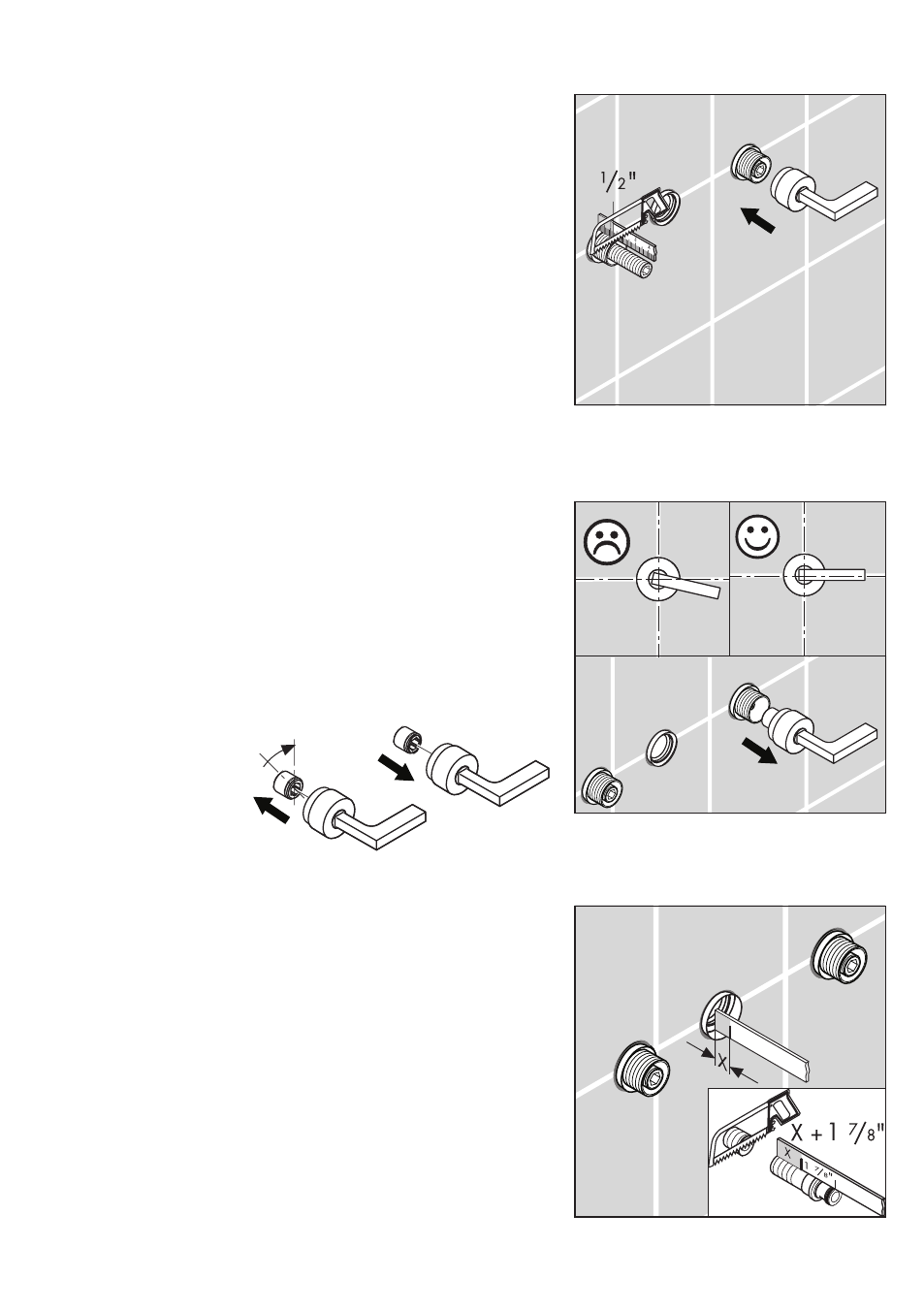

Use a ruler to measure to a point on the extension
spindle ½” from the surface of the finished wall.
Mark the extension spindle at that point. Cut the
extension spindle. Push the handle into place.
The handle should be parallel to the floor.
If it is not, remove it.
Remove the handle insert from the handle. Turn it
slightly and reinsert it.
Replace the handle. It should now be parallel to the
floor.
Remove the handles.
Use a ruler to measure from the metal part of the spout
port to the outside edge of the plaster shield. Record
the measurement (“x”).
Add 1 7/8” to “x”. Record this measurement.
Measure the spout connector from the outlet end to a
point X + 1 7/8”. Mark the spout connector at this
point. Cut it. The total length of the spout connector
should be X + 1 7/8”.
