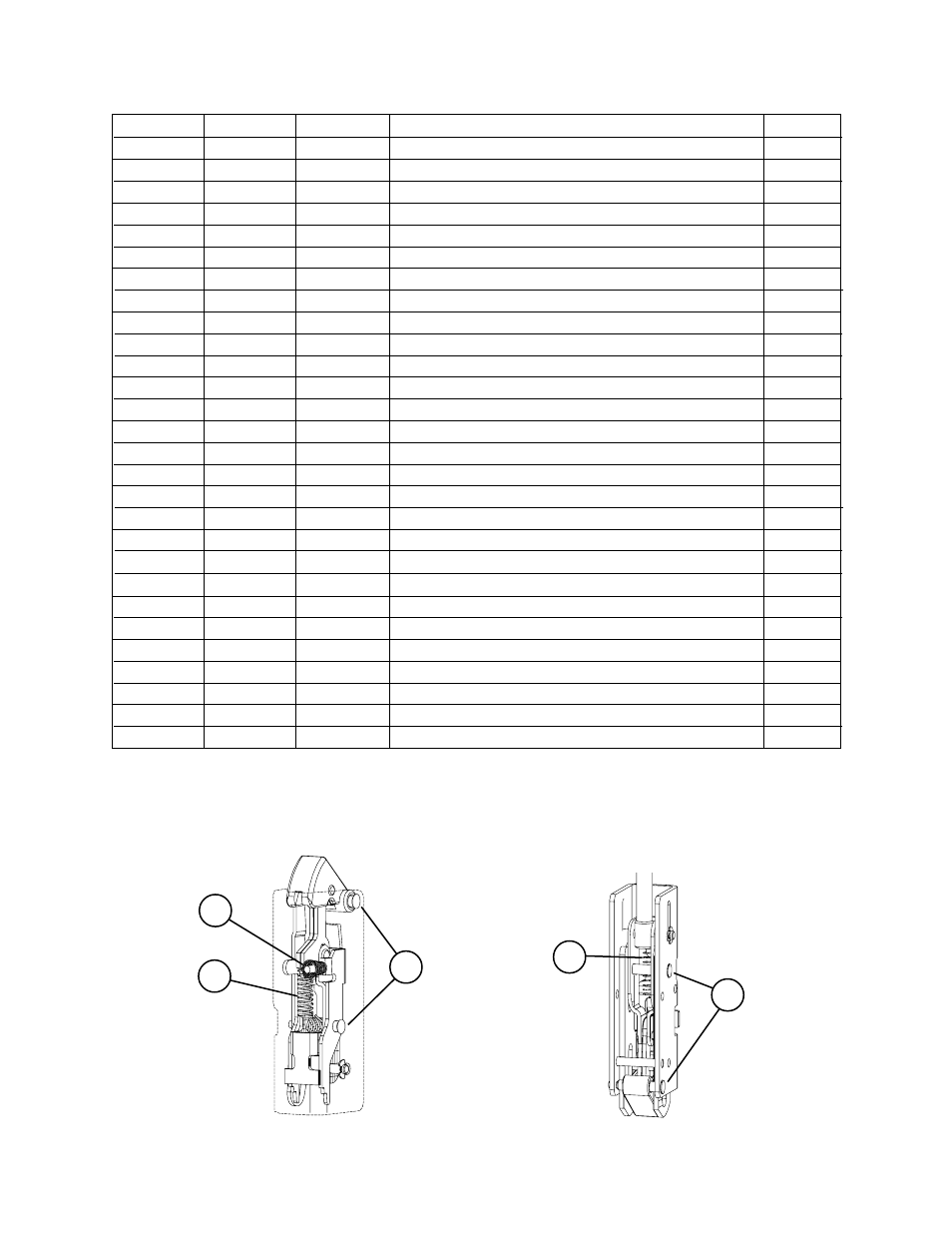

33/3547A PANIC VERTICAL RODS AND LATCHES
17
18
19
19
33/3547A Top Latch
33/3547A Bottom Latch
Item No.
Quantity
Part No.
Description
Finish
*
1
050047
33/3548A Latch Retrofit Kit-(non EL)
*
1
050048
33/3548A-F Latch Retrofit Kit-(non EL)
*
1
050522
EL33/3548A Latch Retrofit Kit
*
1
050523
EL33/3548A-F Latch Retrofit Kit
1**
1
050493
33/3547A Bottom Latch Kit
2**
1
050492
33/3547A Top Latch Kit
3
2
109324
33/3547A Latch Mtg Bracket Kit
3
2
112868
33/3548A Latch Mtg Bracket Kit
4
6
090059
Latch Bracket Mtg Screw (Latch)
5
6
090061
Latch Bracket Mtg Screw (Metal Door)
5
6
900856
Latch Bracket Mtg Screw (Wood Door)
6
2
090063
Retaining Ring (Pkg of 10)
7
2
090064
Latch Link Pin (Pkg of 10)
8
1
050519
Adjustable Top Rod 6’8” - 8’4” Door
9
1
050520
Adjustable Bottom Rod Kit
10
2
090071
33/3547A Rod Connecting Screw
10
2
090072
33/3548A Rod Connecting Screw
11
1
106222
Ratchet Release Pkg
X
12
1
090070
Ratchet Release Screw
13
2
900620
Rod Adjusting Pkg
13
2
900898
33/3547A Adjusting Screw LBR Package
14
2
969989
Rod Connector Extension Bracket
15
2
972408
Rod Connector Screw
16
1
090065
Bolt Return Spring
17
1
090066
Top Latch Compression Spring (Pkg of 10)
18
1
090069
Ratchet Lever Spring (Pkg of 2)
19
1
090062
Btm Latch Case Spirol Pin (Pkg of 10)
20
1
970978
33/3547A Ratchet Release Spacer 1/8”
X in “Finish” column designates finished items; finish must be specified when ordering.
*Retrofit kit includes items 1-3 to convert 33/3547A to 33/3548A.
**Each latch kit (item 1-2) includes only one latch mtg bracket kit (item 3). For service
replacement only. Refer to retrofit kits to convert 33/3547A to 33/3548A.
16
