Neutrik Patch Panels User Manual
Page 6
156
NPP- S
(Accessories)
NPP- S
NPP-TB-HN
NPP-TB + NPP-LB*
innovative
solutions
I
superior quality
N P P - T B S e r i e s
N P P - T B S e r i e s
Individual colour
coding
Galvanized metal
housing

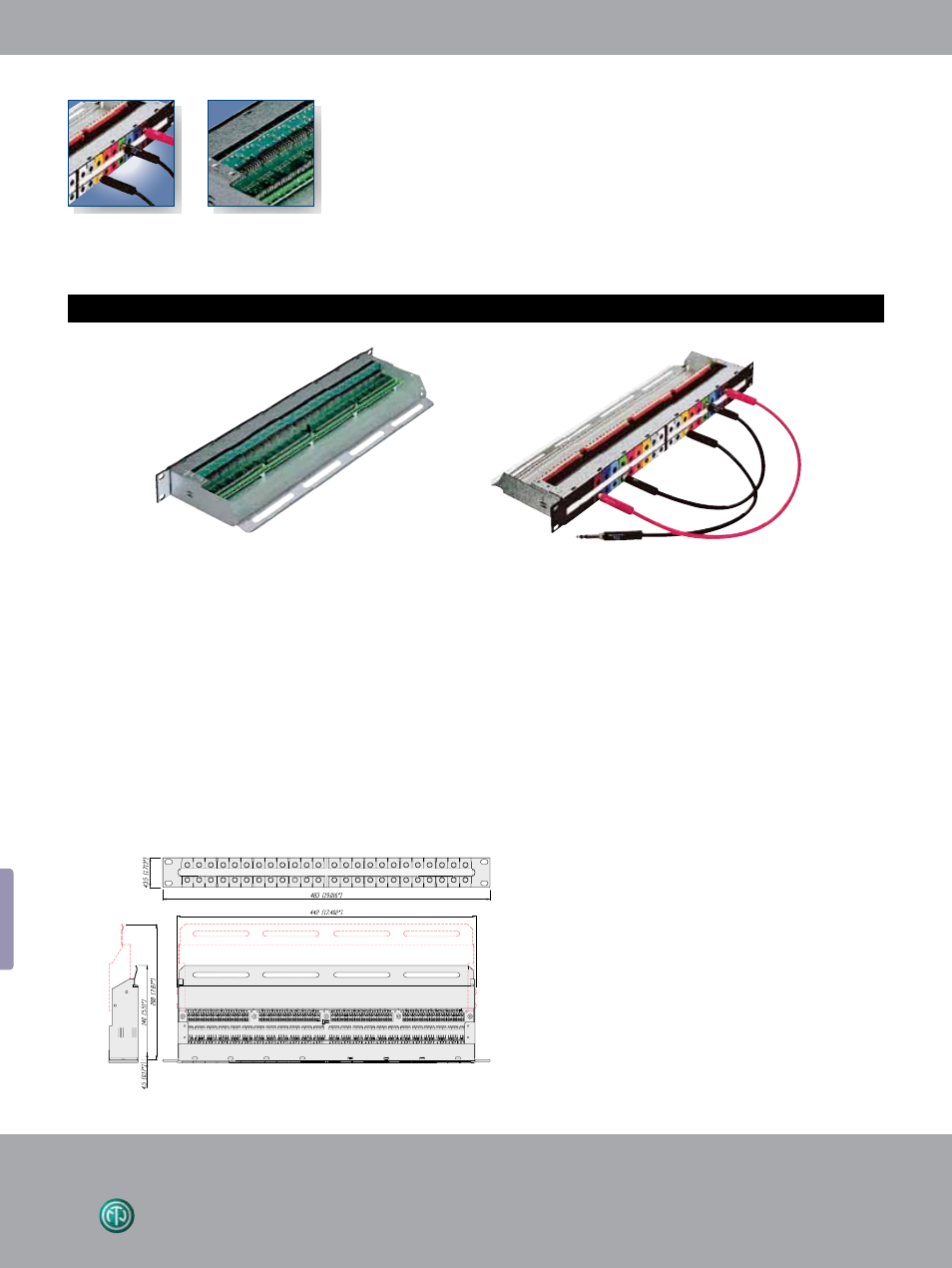

Dimensional Drawing
N P P - T B - S e r i e s
- 4 8 B - G a u g e J a c k s
•
Features 2 x 24 Neutrik
®
NJ6TB-V long frame 1/4” TRS jacks according to BPO316/MIL-P-642/2
•
Very robust and compact galvanized metal housing
•
Compact, cost effective system qualified for both analog and digital signals acc. AES3, 48 kHz sampling frequency
•
High quality long life gold plated Neutrik jacks
•
Easily programmable for any of 6 configurations with 4 grounding choices
•
Rear terminations include solderless terminal blocks or solder lugs
(solder for non-programmable half-normalled versions only).
•
Center marking strip is removable; See Neutrik website to download PatchLink labeling software for PCs
•
Color coded tabs, dust cover and rear extension strain relief bars are optional accessories
