3B SCIENTIFIC

®

PHYSICS



1

Trinocular Microscope Model 400 U30712

Instruction Manual

10/07 ALF


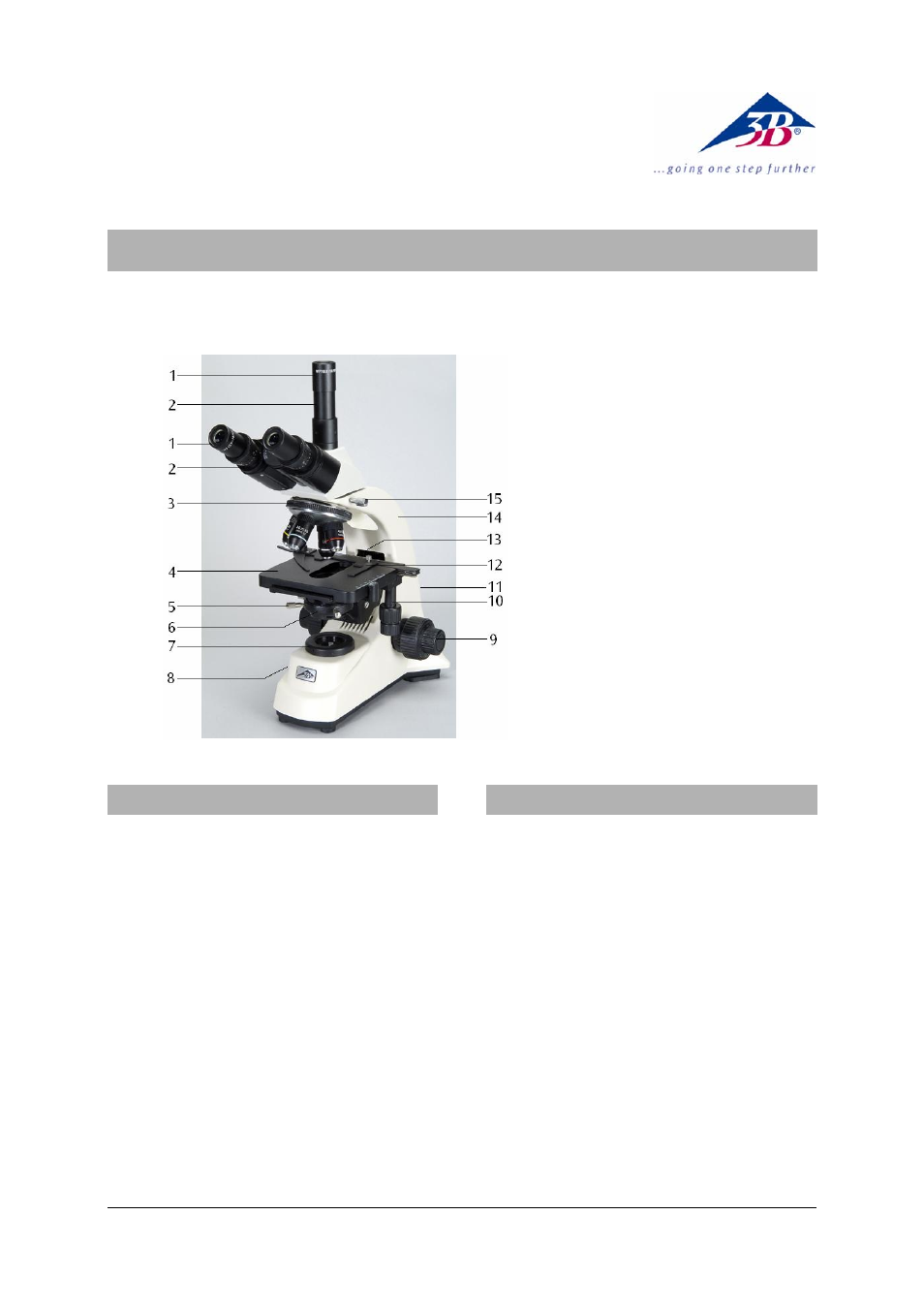

1 Eyepiece
2 Tube
3 Revolver with objectives
4 Object

stage

5 Condensor lock screw
6 Condensor with iris diaphragm

and filter holder

7 Lamp

housing

8 Illumination

control

9 Coarse and fine movement

controls with holding brake

10 Coaxial movement control for

the specimen stage

11 Mains switch
12 Object guide
13 Lock screw for object stage
14 Stand
15 Head lock screw




1. Safety notes

For power supply use only electrical sockets
with ground contact.

Always unplug the mains plug before cleaning
or maintenance.

Be careful not to spill any liquids on the mic-
roscope.

Do not wipe the optics with your hands.

Do not disassemble objective or eyepieces to
attempt to clean them.

Do not mishandle or impose unnecessary force
on the microscope.

Do not clean the unit with volatile solvents or
abrasive cleaners.

Do not attempt to service the microscope your-
self.


2. Description, technical data

The trinocular microscope allows two observers to
have a two-dimensional view of objects (thin sec-
tions of plant or animal specimen) at a magnifica-
tion of 40 to 1500 times. It also allows a camera to
be attached at the same time for photographic or
video-recording documentation of images.

Stand: Robust, all metal stand with arm perma-
nently connected to the base. Focussing by means
of separate knobs for coarse and fine adjustment
located on either side of the stand and operated by
rack and pinion drive with ball bearings and retain-
ing lever, adjustable stopper for protecting the
object slides and objective. Focus range: 15mm,
resolution of fine focussing adjustment: 0.002 mm

Tube: Trinocular Seidentopf head, 360° rotatable,
binocular tubus with 30° viewing angle, viewing
distance adjustable between 54 and 75 mm, ±5
dioptric compensation for both eyepieces, one tube
with vertical viewing angle
