12 HSD 8450
Engl
ish
Control Elements

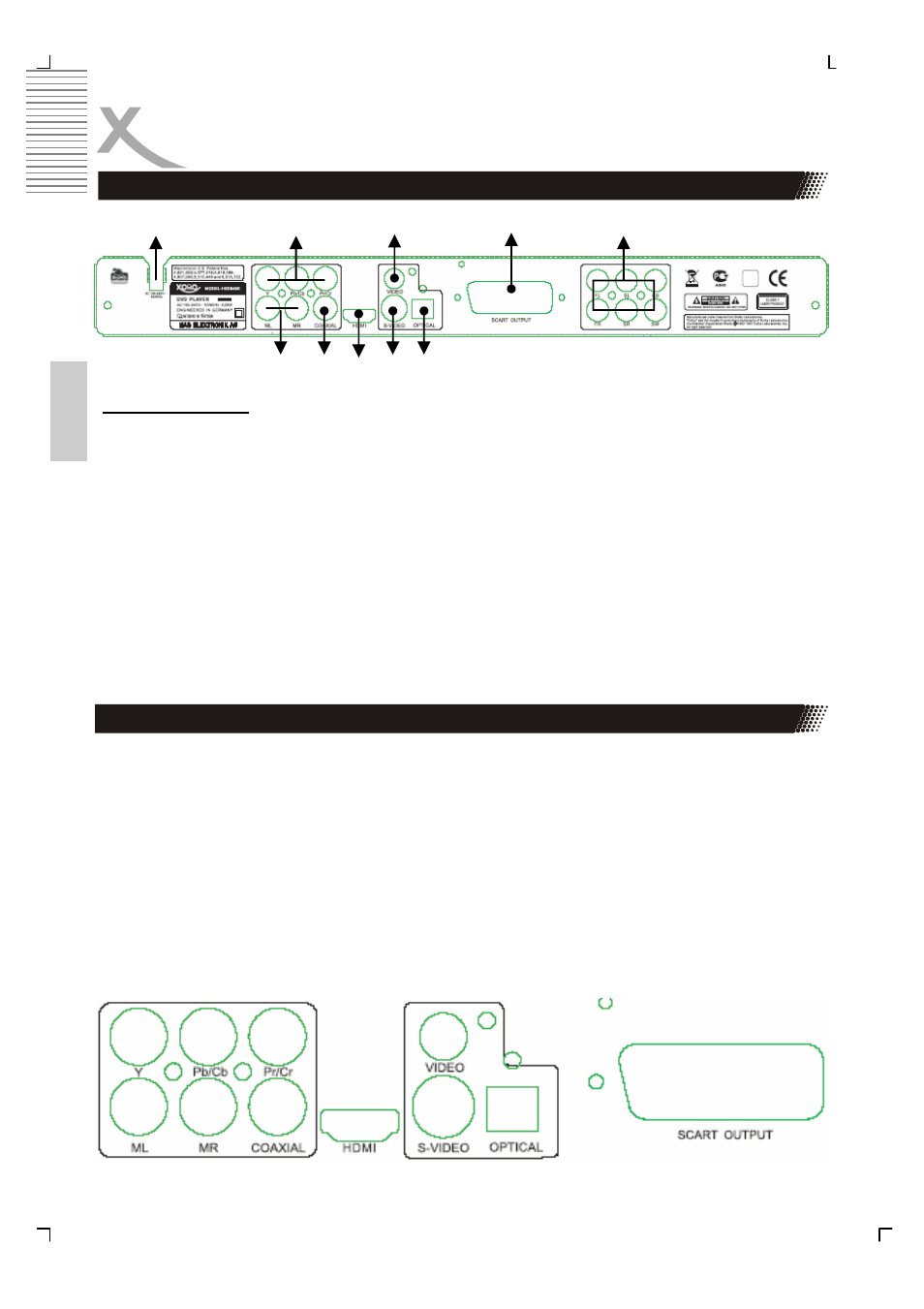

Rear Panel
Control Elements
1. Power
Cord
2. Components Y Pb/Cb Pr/Cr video output
3. CVBS video output
4. SCART connector
5. Analogue 5.1 RCA Audio output
6. Stereo audio output (ML and MR)
7. Coaxial digital audio output (electrical)
8. HDMI video and audio output
9. S-Video output
10. Optical digital audio output (SPDIF)
The HSD 8450 provides different ways to output video and audio signals. Please refer the
below picture which shows the different Audio and Video outputs:
•
HDMI
•
CVBS
•
S-Video
•
SCART
•
Component Y Pb/Cb Pr/Cr
1. 2. 3. 4.
5.
6. 7. 8. 9. 10.
Connecting
