3B Scientific Basic life support simulator “Basic Billy” - Manual (Page 6)

®
English
6
BLS-Simulator BASICBilly™

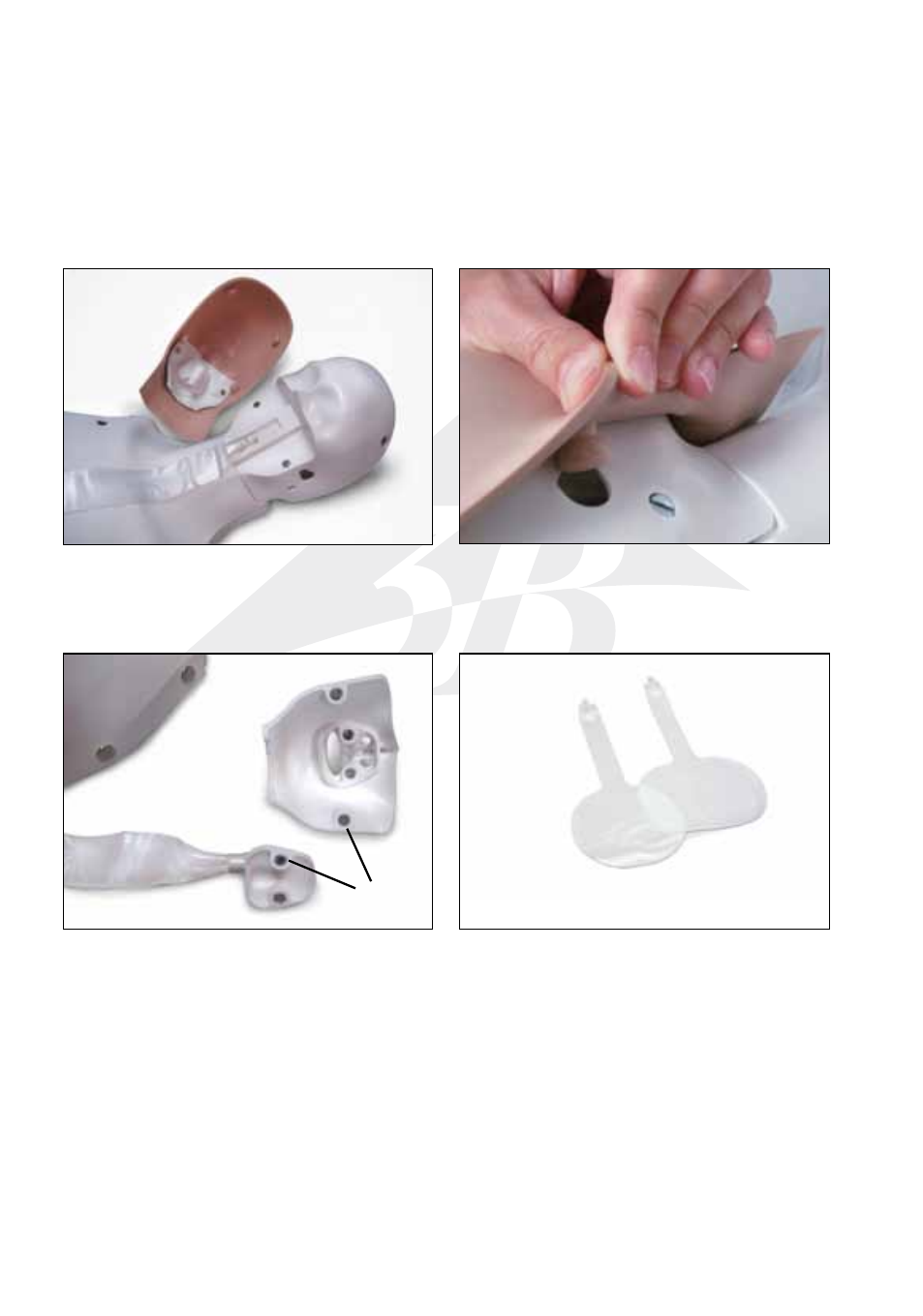

2.2 Changing the air bag
• Place the BASICBilly™ on a flat, even surface
• Remove the face skin first of all by releasing the four attachments. To do this, pull down on the button
tabs on the skin at the designated points:
• Do the same for the torso skin
Magnets
• Remove the mouth piece that is attached with magnets and take off the lung bag holder inside
• Now, pick up one of the lung bags provided
• Push the upper end of the lung bag (start of the simulated trachea) over the round opening of the lung
bag holder
• Slide this into the guide rail on the head and spread out the lung bag flat on the thorax, ensuring that
it does not become creased while you are putting together the simulator
• Place the mouth piece on to the lung bag holder
• Then attach the torso skin, followed by the face mask, with the button tabs (see above)
3 Cleaning and care
All parts that come into contact with the breath, such as the face mask, inner head cover and the lung
bag holder can be disinfected with the disinfectant supplied.
