2 Assembly
2.1 Changing the springs
BASICBilly™ can be used in adult or in child mode. To do this, adjust the springs to alter the thorax
resistance for cardiac massage, and change the air bags for artificial respiration.
• Place the BASICBilly™ on a flat, even surface

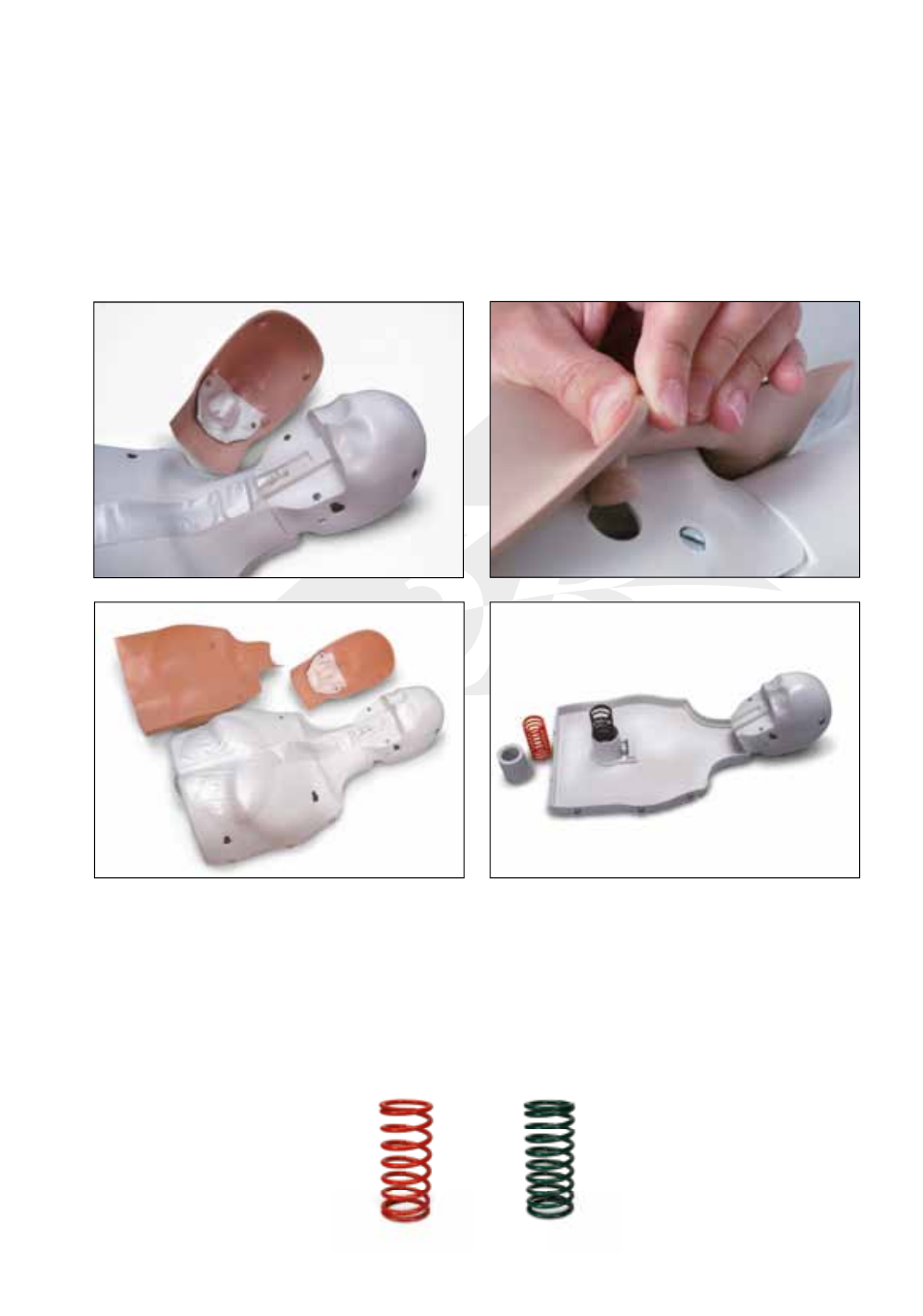

• First of all, remove the face skin by releasing the four attachments. To do this, pull down on the but-
ton tabs on the skin at the designated points:
BLS-Simulator BASICBilly™
1
1
2
2
3
3
4
4
• Do the same for the torso skin
• Once the press studs placed around the white thorax have been undone you can remove the skin.
• Place the springs (red = adult ; green = child ) into the holder and fit the telescopic guide (red point =
adult; green point = child);
• To assemble the torso, do the above in reverse order. To put on the thorax, first of all tilt the head
back and push the neck piece of the thorax forward before fixing it in place.
