9
Since the 2-Series Equalizers consume a relatively small amount of power, the
units may be left on continuously.

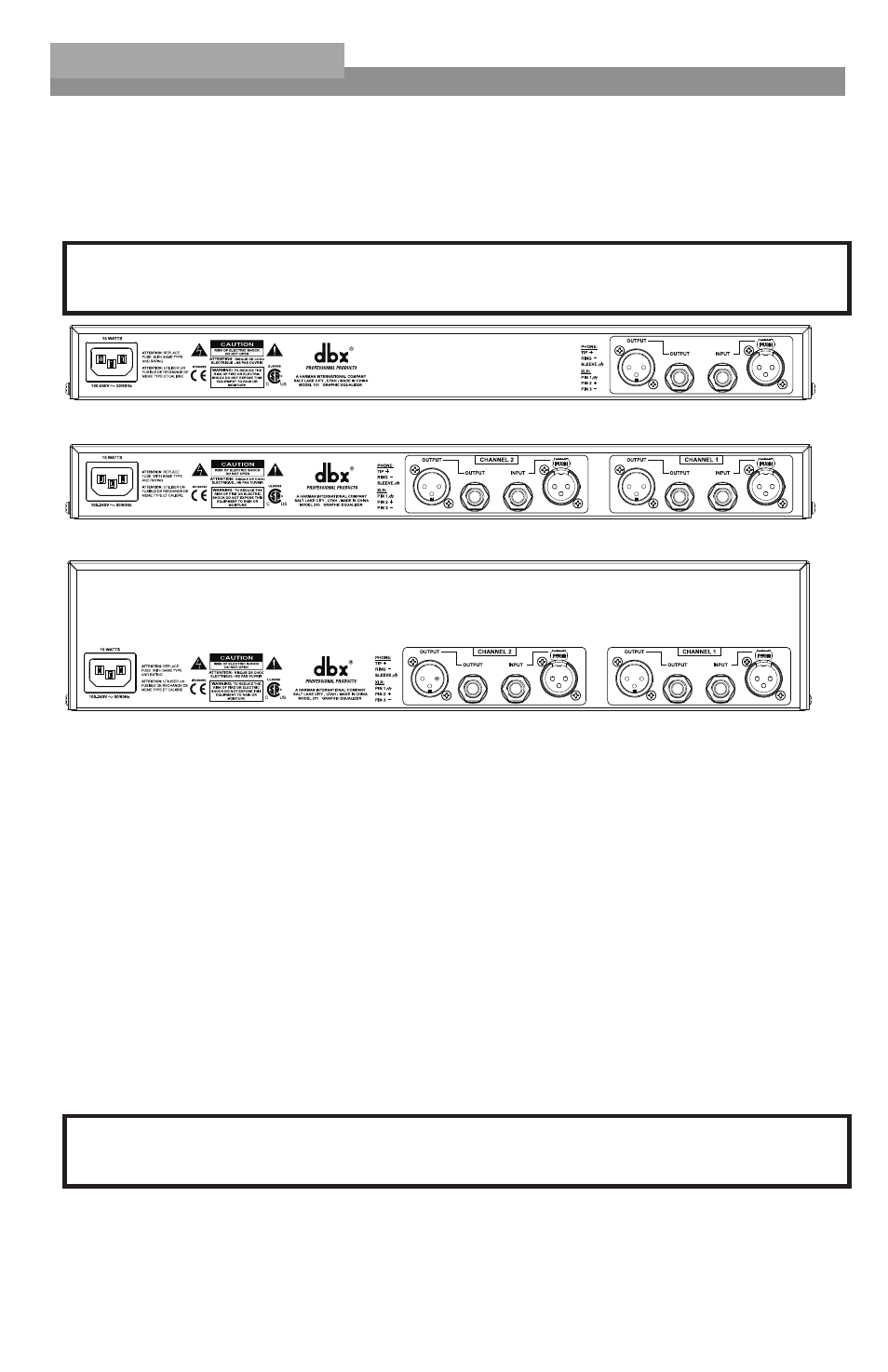

Section 4 - Rear Panel Descriptions
s
s
s
Power Cord Receptacle
Connects AC power to the equalizer.
Output Connectors
Two types of output connectors are provided for output connections: male XLR type
connectors, and 1/4" tip-ring-sleeve phone jack connectors.
Input Connectors
Two types of input connectors are provided for input connections: female locking XLR
type connectors, and 1/4" tip-ring-sleeve phone jack connectors. The maximum input
level that the equalizer can accept is typically +22 dBu (ref: 0.775Vrms).
Section 5 - Installation Considerations
Hookups and Cabling: The 2-Series Equalizers are designed for nominal +4 dBu levels.
The equalizers can be used with either balanced or unbalanced sources, and the out-
puts can be used with either balanced or unbalanced loads, provided the proper cabling
is used.
215s- Dual Channel 15 Band Graphic EQ
231s- Dual Channel 31 Band Graphic EQ
131s- Single Channel 31 Band Graphic EQ
user Manual
2-Series
