2.6 Three Phase Power Connections

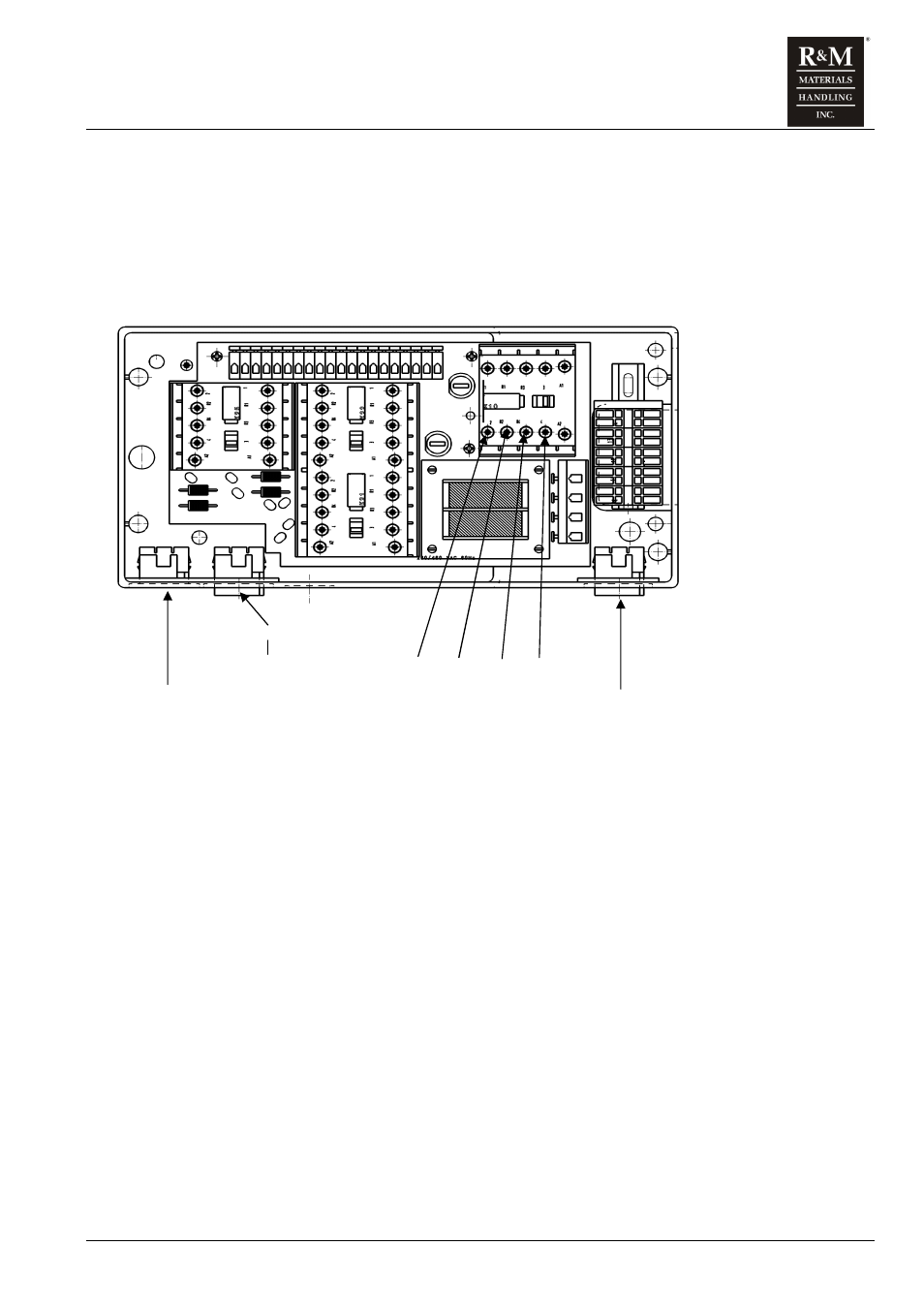

Figure 2. Three Phase Control Box Power Connections
1. Remove the control box cover.
2. Insert the power supply cable through the cable gland.
3. Connect phases L1, L2, L3, PE (GROUND) to mainline contactor K10.
4. Tighten the terminal screws
5. Tighten the cable gland or connector to secure the cable.
6. Connect push button assembly to X23.
7. Connect motorized trolley (optional).
8. Close the control enclosure cover.
POWER
CABLE
GLAND
MOTORIZED
TROLLEY
PLUG
PUSHBUTTON
PLUG
CONNECTION
X23
L2 L3 L1 PE
