ISSUED: 03-27-12 SHEET #:125-9290-3 05-21-12
Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112 or 708-865-8870.
5 of 7

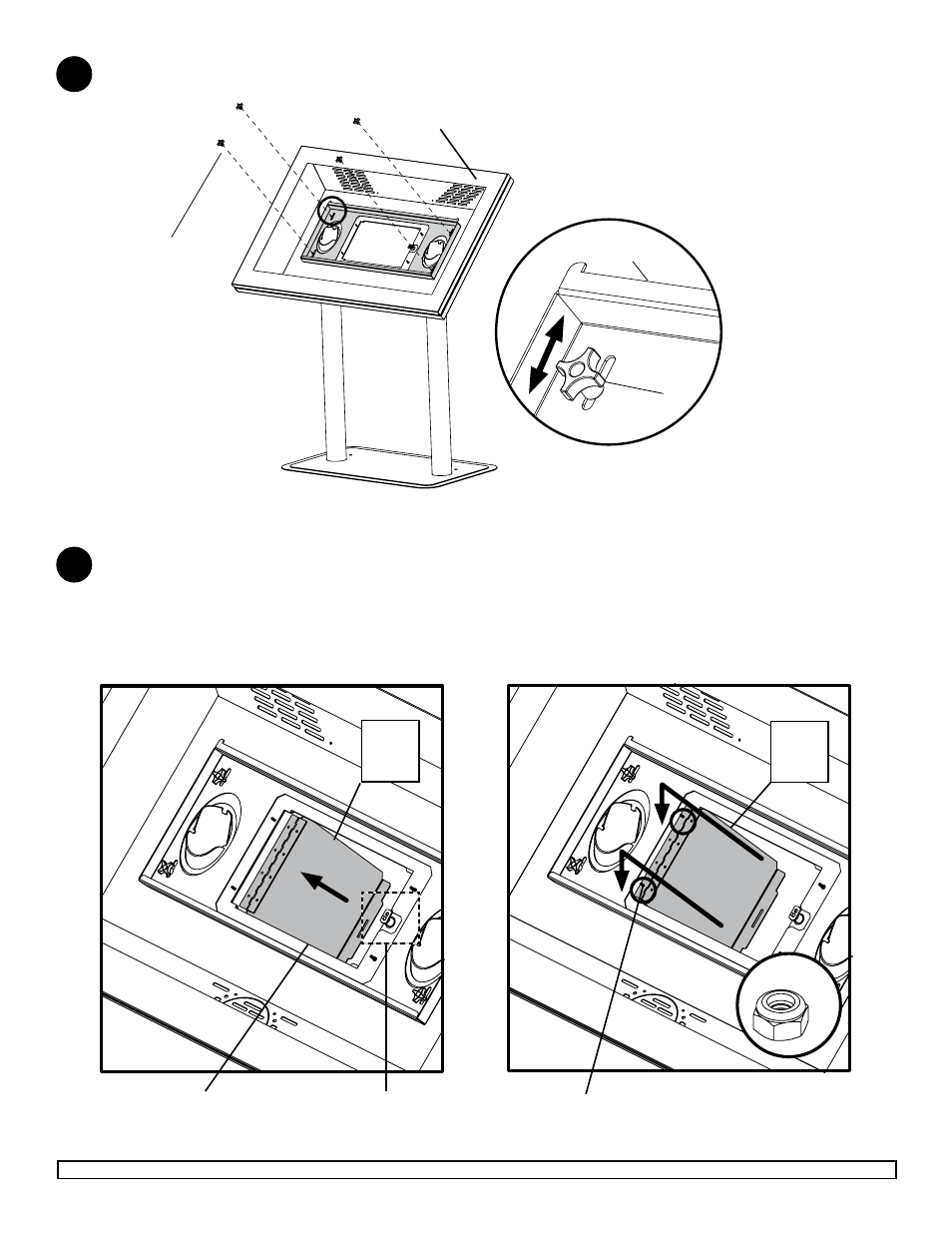

NOTE: Make sure that lock is opened and positioned as shown in detail 5.
Position hinged door ( N) inside door opening as shown in detail 5.
Position hinge on top of two threaded studs in stand weldment ( A) as shown in detail 6.
Once hinged door ( N) is in place, fasten two M4 nylock nuts (Q) as shown in detail 6.
Close lock.
4
DOOR OPENING
DETAIL 5 DETAIL 6
N N
NOTE: MAKE SURE THAT
LOCK IS POSITIONED
AS SHOWN
Attaching Hinged Door on back of Stand Weldment
Q
Secure adapter plate ( D) to enclosure assembly (C) using four 1/4-20 knobs (F) as shown in detail 4.
Adapter plate ( D) can be adjusted vertically buy loosening 1/4-20 knobs (F) as shown in detail 4.
3
DETAIL 4
C
F
F
D
DOOR THREADED STUDS
