Peerless-AV KL546-S - Installation - Manual (Page 2)

ISSUED: 03-27-12 SHEET #:125-9290-3 05-21-12
Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112 or 708-865-8870.
2 of 7
A
B
C
D
E F H
I J
K L M
N
G
O
P Q
S

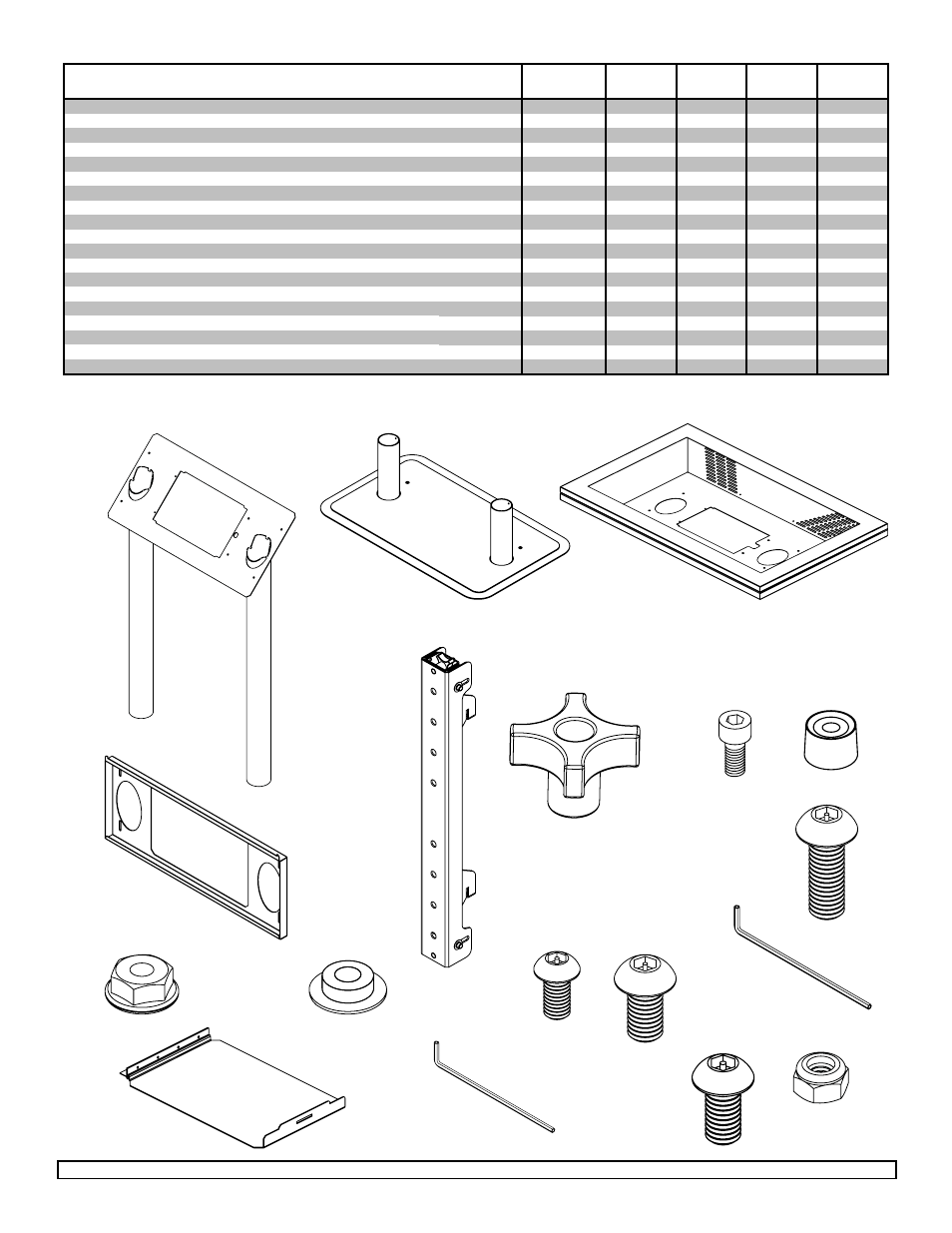

PARTS LIST
KL540-S KL546-S KL540-AB KL546-AB KL540-AW KL546-AW
Description Qty. Part # Part # Part # Part # Part # Part #
A stand weldment 1 145-F4596 145-F4596 145-S1596 145-S1596 145-S2596 145-S2596
B base weldment 1 145-F4553 145-F4553 145-S1553 145-S1553 145-S2553 145-S2553
C enclosure assembly 1 145-F4600 145-F4599 145-S1600 145-S1599 145-S2600 145-S2599
D adapter plate 1 145-F4579 145-F4579 145-S1579 145-S1579 145-S2579 145-S2579
E adapter bracket 2 145-F4597 145-F4597 145-S1597 145-S1597 145-S2597 145-S2597
F 1/4-20 knob 4 560-1199 560-1199 560-1199 560-1199 560-1199 560-1199
G #8-32 socket cap screw 8 520-1210 520-1210 520-1210 520-1210 520-1210 520-1210
H rubber foot 8 590-1288 590-1288 590-1288 590-1288 590-1288 590-1288
I 1/4-20 flanged locknut 2 530-2021 530-2021 530-2021 530-2021 530-2021 530-2021
J nylon shoulder washer 4 590‐2233 590‐2233 590‐2233 590‐2233 590‐2233 590‐2233
K M6 x 12 mm socket pin screw 4 520-1050 520-1050 520-1050 520-1050 520-1050 520-1050
L M8 x 15 mm socket pin screw 4 520-1068 520-1068 520-1068 520-1068 520-1068 520-1068
M 4 mm allen wrench 1 560-9646 560-9646 560-9646 560-9646 560-9646 560-9646
N hinged door 1 145-F4598 145-F4598 145-S1598 145-S1598 145-S2598 145-S2598
O 9/64" allen wrench 1 560-9728 560-9728 560-9728 560-9728 560-9728 560-9728
P 1/4-20 x 1/2" socket pin screw 4 520-2069 520-2069 520-1054 520-1054 520-2069 520-2069
Q M4 nylock nut 2 530-9415 530-9415 530-9415 530-9415 530-9415 530-9415
R lock key (not shown) 3 565-0052A 565-0052A 565-0052A 565-0052A 565-0052A 565-0052A
S M8 x 20 socket pin screw 4 520-1120 520-1120 520-1120 520-1120 520-1120 520-1120
