Peerless-AV KL546-S - Installation - Manual (Page 3)

ISSUED: 03-27-12 SHEET #:125-9290-3 05-21-12
Visit the Peerless Web Site at www.peerless-av.com For customer care call 1-800-865-2112 or 708-865-8870.
3 of 7

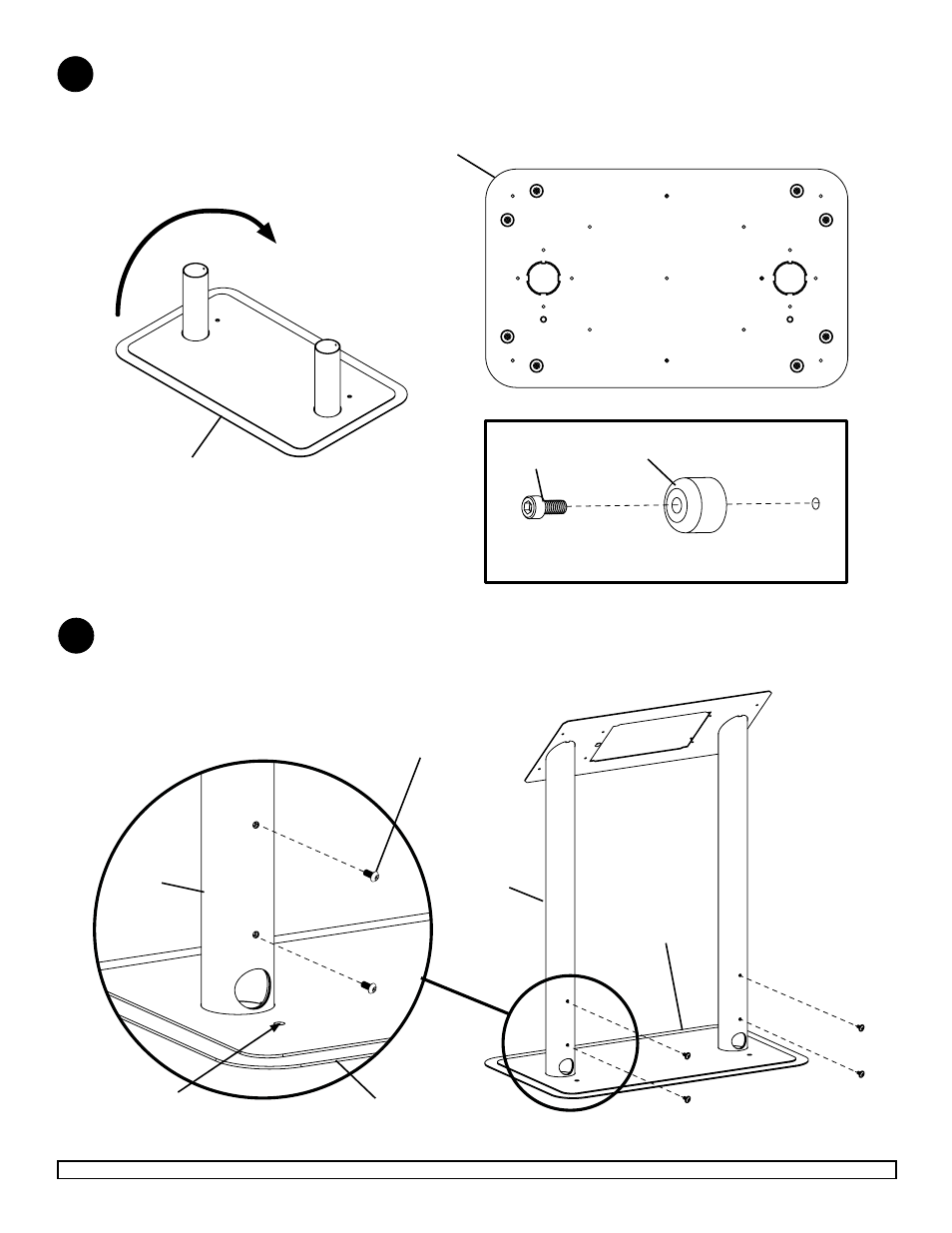

Tip base weldment ( B) backward onto floor. Secure eight rubber feet (H) using eight #8-32 x 3/8” socket head cap
screws ( G) to bottom of base weldment (B) using tool (O) as shown below.
NOTE: Do not over tighten.
1
BOTTOM OF BASE WELDMENT (B)
B
B
H G
Attach stand weldment ( A) to base weldment (B) using four 1/4-20 socket pin screws (P).
NOTE: Loosely fasten all 1/4-20 socket pin screws (P), then tighten all screws using 4 mm allen wrench (M)
until stand weldment is secure.
2
NOTE: holes indicate
back of stand
BACK
DETAIL 1
A
B
B
A
P
