The Series provide Intelligent Slot, Expanded Slot, PARALLEL, EXT.BATTERY TEMP
PROBE, AS400, EPO, RS485 and RS232 as well as SERVICE Supervising Communica-
tion Interface exclusively available to PowerWalker technical personnel.
1. Intelligent slot: suitable for WebPower card (optional) of remote supervising manage-
ment, enabling you to realize remote supervising management on UPS by accessing
Internet. (Intelligent slot adapter card is divided into long card and short card; The Series
require the latter.)
2. Expanded slot: available only to users with special requirements and not open to those
of standard configuration.
3. PARALLEL: communication wire interface under parallel machine mode.
4. EXT.BATTERY TEMP PROBE: temperature interface for external battery cabinet,
capable of battery temperature supervision so as to realize battery intelligent management.
5. Standard AS400 interface: provides AS400 and users can directly use UPS supervising
function offered by AS400 system to realize power source management (See Appendix for
AS400 port Pin).
6. EPO: emergency power off, which provides users having emergency switch-off need
with direct UPS output switch-off function.
7. Standard RS485 Interface: capable of UPS supervising management when parallel
machine, providing complete control over UPS power supply (See Appendix for RS485
port Pin ).
8. SERVICE Interface: available only to PowerWalker internal technical professionals and
not open to users.
9. Standard RS232 Interface: applicable to WinPower supervising software of graphic
man agement (See Appendix for RS232 port Pin).

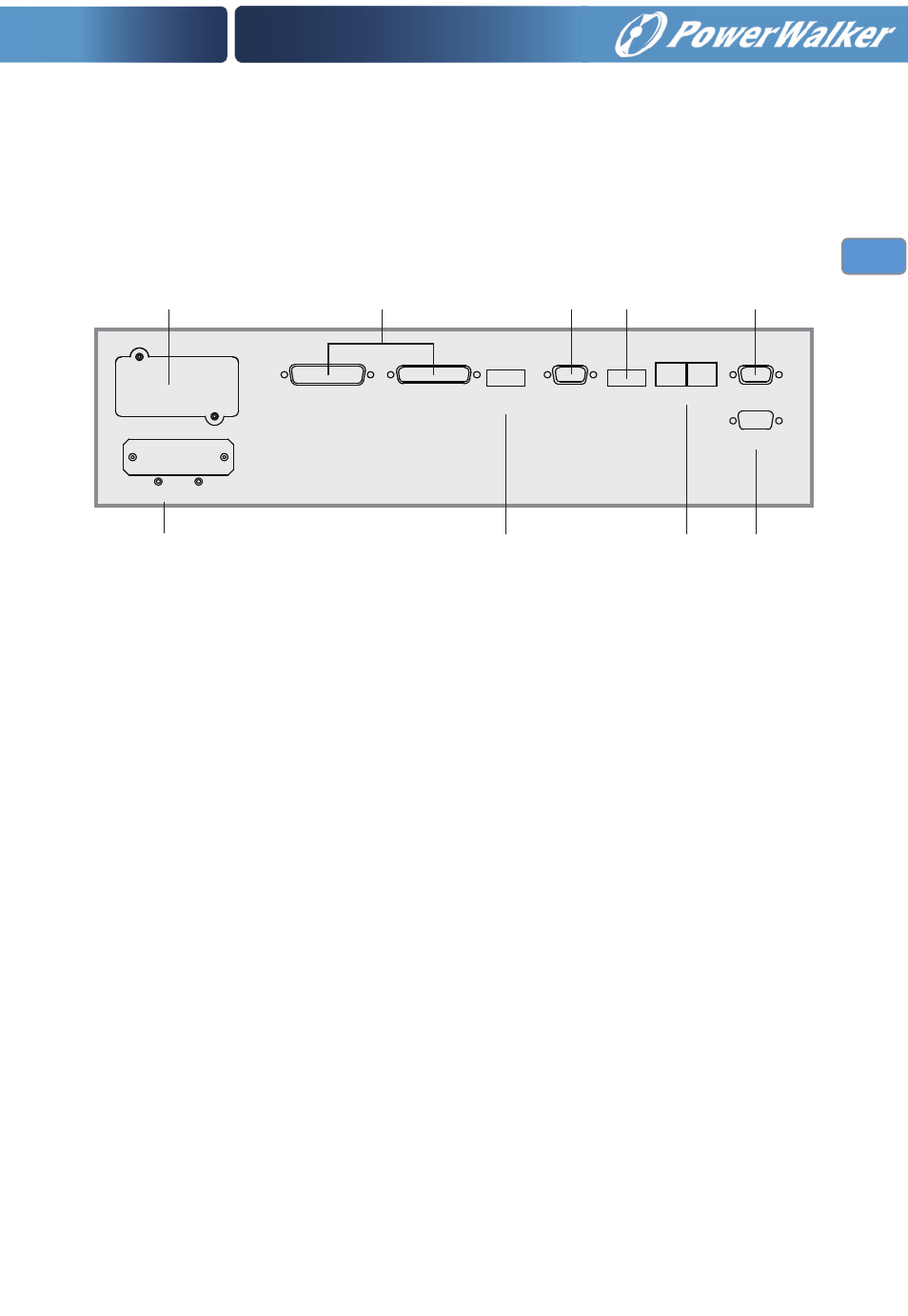

Chapter 5 Communication Interface
PARALLEL
Intelligent slot
Expanded slot
EXT.BATTERY
TEMP PROBE
AS400 EPO SERVICE RS485
RS232
PARALLEL
1 3 5 6 8
2 4 7 9
