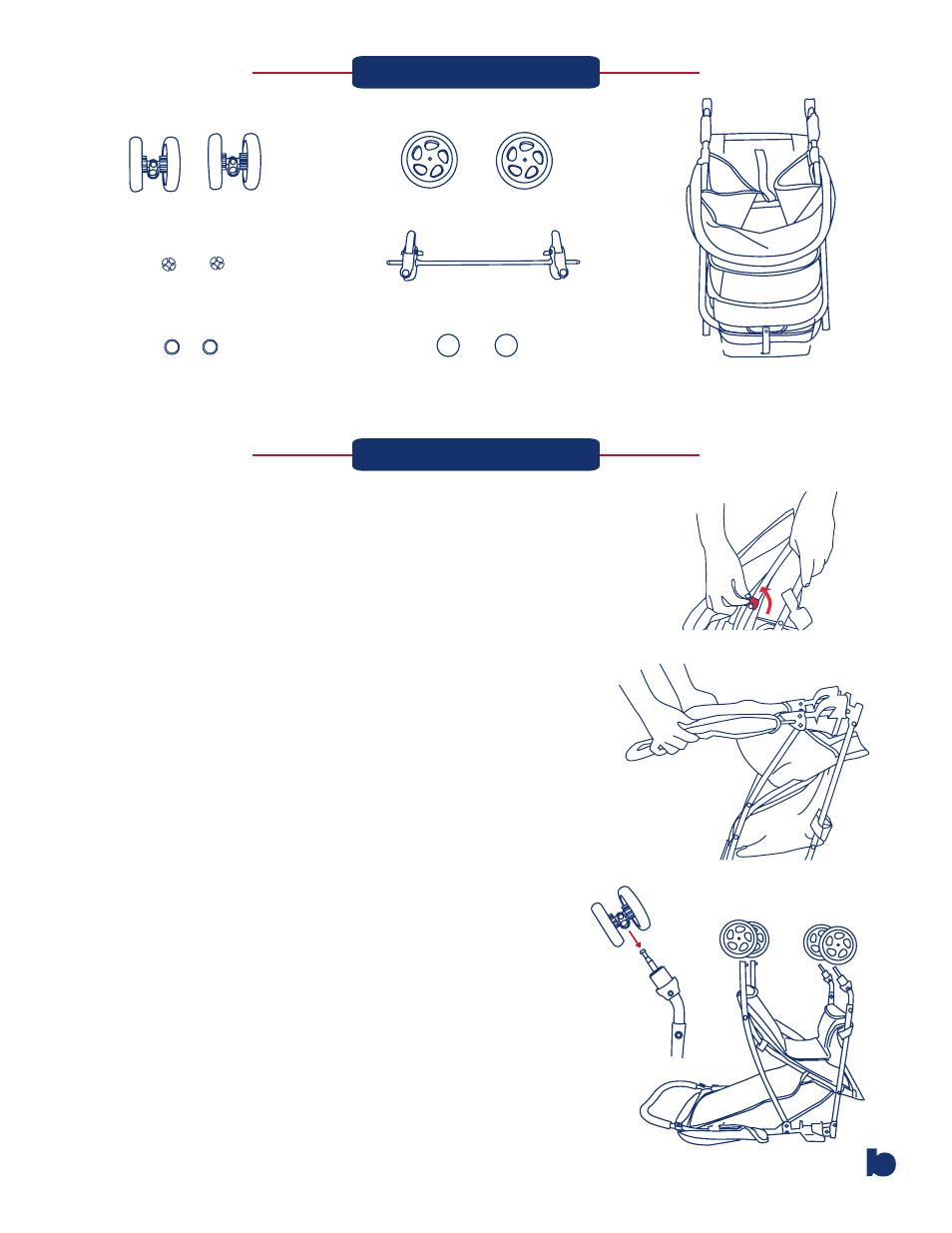

PARTS

Fig. 1

Rear Wheels (2)

Rear Axle (1)

ASSEMBLING

Front Wheels (2)

Locking Washers (2)

Hub Caps (2)

Solid Metal Caps (2)

Fig. 4

TO ENSURE SAFE OPERATION OF YOUR

STROLLER, PLEASE FOLLOW THESE

INSTRUCTIONS CAREFULLY. RETAIN THESES

INSTRUCTIONS FOR FUTURE REFERENCE.

TO UNFOLD STROLLER:

•

Release the folding latch, which is located on the right side.

(Fig. 1)

• Lift up on the stroller handle with both hands until the stroller frame is

erect and locked in the open position. (Fig. 2) The stroller has spring-

loaded latches on both sides of the frame. Test that both latches are

fully engaged prior to placing your child in the stroller.

ASSEMBLY:

1. Remove stroller from carton. The front wheels, axle and rear

wheels need to be assembled and installed prior to use.

2. Unfold stroller. Rest the handle section down so that the rear

frame tubes and the front wheel bayonets are both pointing

upward. (Fig. 3)

3. Attach front wheels to stroller by placing front wheel housing

onto front wheel bayonet. Push downward until it snaps

and locks into place. (Fig. 4) Tug each side to ensure proper

installation. Note: Front wheels should be able to spin

360° degrees.

Fig. 2

Fig. 3

Stroller
