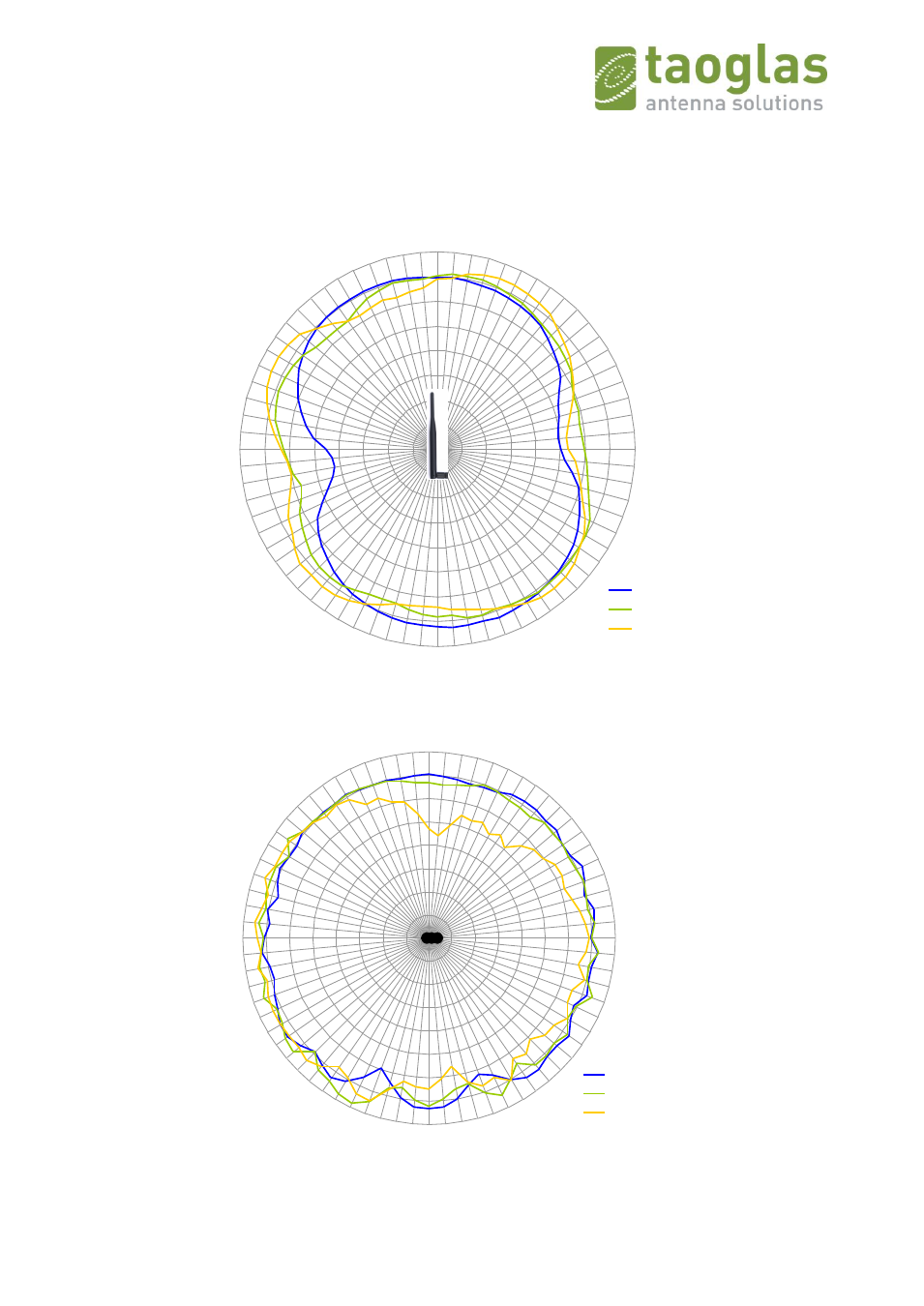

E-Plane Radiation of Bend Position
-35
-30
-25
-20
-15
-10
-5
0
5
0
30
60
90
120
150
180
210
240
270
300
330
2.45GHz
5.0GHz
5.8GHz
H-Plane Radiation of Bend Position
-35
-30
-25
-20
-15
-10
-5
0
5
0
30
60
90
120
150
180
210
240
270
300
330
2.45GHz
5.0GHz
5.8GHz
