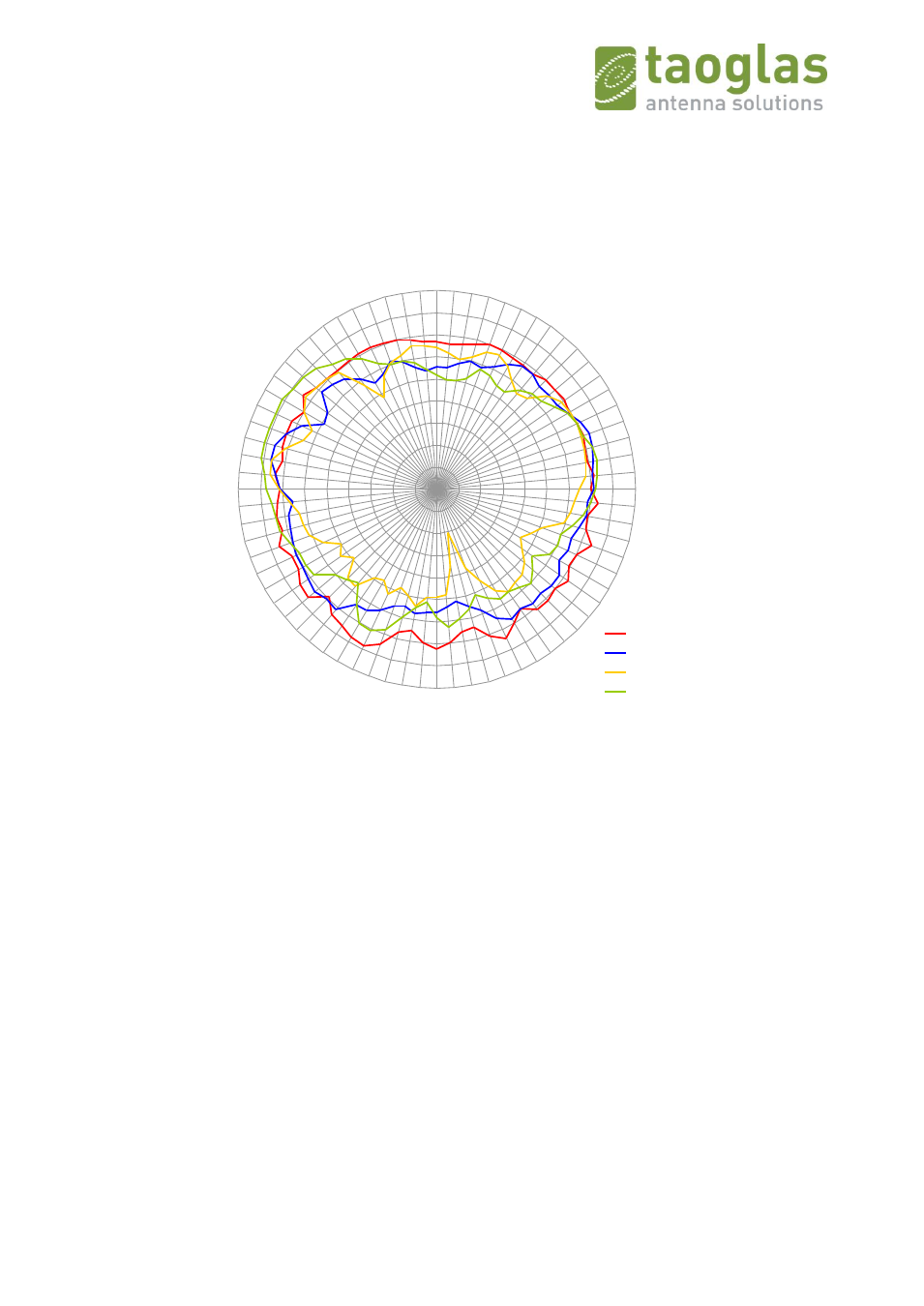

V.10. Radiation Pattern of Bend GW.71 at 5.0GHz
E-Plane Radiation
(dBi)
-35
-30
-25
-20
-15
-10
-5
0
5
10
0
30
60
90
120
150
180
210
240
270
300
330
free space
small gnd edge
big gnd edge
big gnd center
